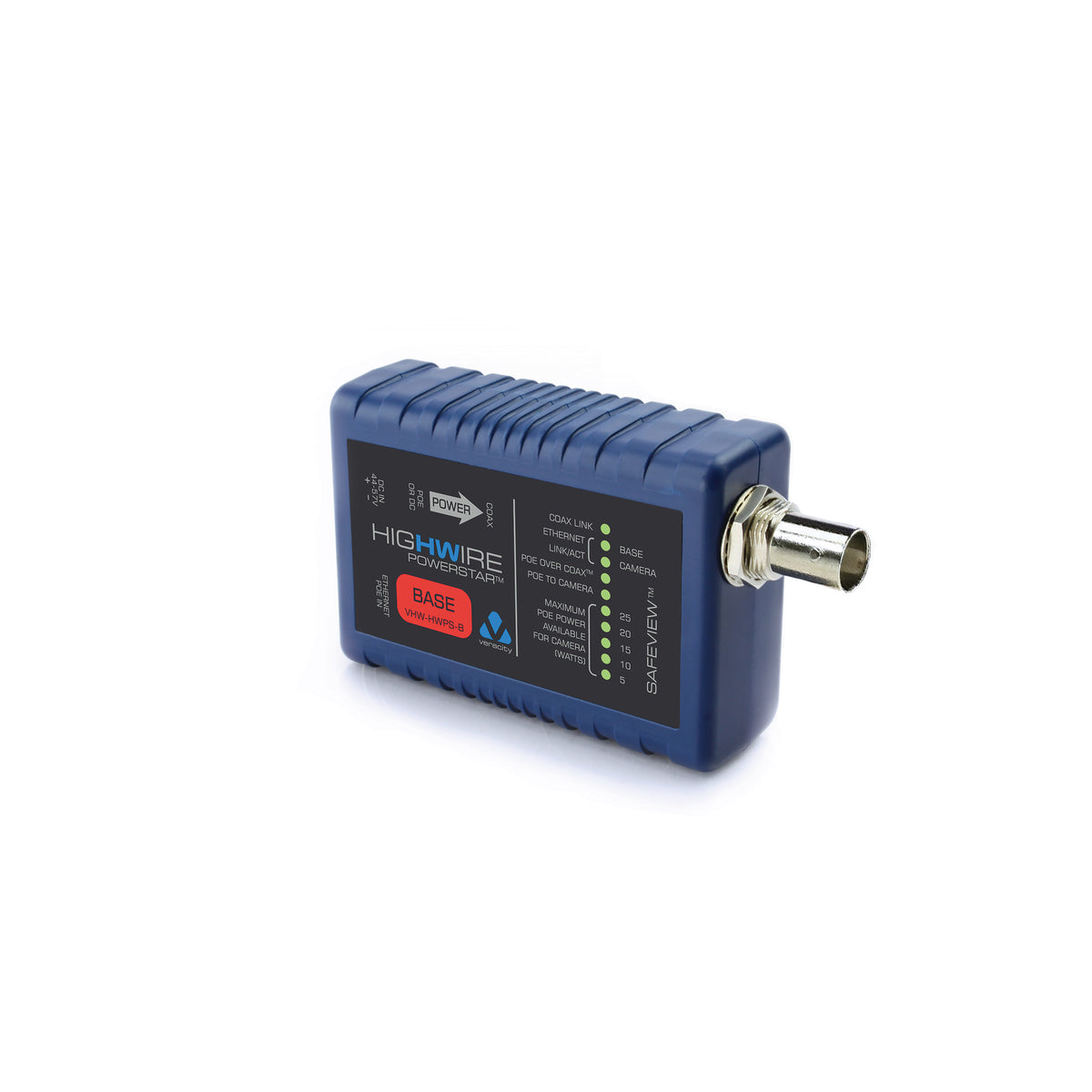

Veracity VHW-HWPS-B PoE over Coax Base Unit, Up to 25W PoE, Up to 300m on RG59
About this product
The Veracity HIGHWIRE Powerstar Base (VHW-HWPS-B) is a base adaptor for fast Ethernet and PoE over legacy cabling, so IP cameras can re-use existing coax cable. Installed at the switch side, it connects to a HIGHWIRE Powerstar (Camera) unit over the coax to carry full bandwidth Ethernet and up to 25W PoE, with no configuration required.
Key features
- Re-use existing coax cable for IP cameras
- PoE over coax removes the need for separate power cabling
- Up to 25W PoE to power PoE Plus cameras
- All PoE (IEEE 802.3af) and PoE Plus (IEEE 802.3at) cameras are fully supported, and non-PoE equipment can be safely connected
- Full-duplex 100Base-TX to the maximum cable distance: 300m on RG 59, 400m on RG6 and 500m on RG11
- SafeView instantly checks connection and power status
- Fully automatic, no configuration required
- Powered by PoE or directly by a 57V DC PSU
Frequently asked questions
What does the VHW-HWPS-B pair with?
It connects to a HIGHWIRE Powerstar (Camera) unit, the VHW-HWPS-C, which is for installation at the camera side, over legacy coax cabling.
Can the base unit be powered without a PoE switch?
Yes. The base unit may be powered by PoE or directly by a 57V DC PSU; the optional VPSU-57V-800 57V DC 800mA power supply is recommended for maximum range.
How far can it run over coax?
Full-duplex 100Base-TX bandwidth runs to the maximum cable distance: 300m on RG 59, 400m on RG6 and 500m on RG11.
How much PoE does it give the camera?
Up to 25W, to power PoE Plus cameras. All PoE (IEEE 802.3af) and PoE Plus (IEEE 802.3at) cameras are fully supported.
Does it need configuring?
No. It is fully automatic, with no configuration required: there is no need to configure IP addresses or set DIP switches.
Specifications
Specifications
| Brand | Veracity |
|---|---|
| Model | VHW-HWPS-B |
| Manufacturer Part Number (MPN) | VHW-HWPS-B |
| Unit power | 1.5 watts |
| Base PoE input | IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus), 2-event, power class 4 |
| DC power input | 40-57 volts, 0.7 amps maximum, class 2 isolated, detachable screw terminal |
| PoE to camera | Up to 25W |
| HIGHWIRE connector type | BNC 75 ohm |
| Coax cable type | Any 75 ohm coaxial (other impedances supported) |
| Maximum cable distance | 300m on RG 59, 400m on RG6, 500m on RG11 |
| Bandwidth | 200 Mbps (total up + down) |
| Ethernet connector | RJ45 |
| Ethernet cable type | Patch or crossover, auto-detected |
| Ethernet rate | 100Base-T full-duplex with auto-negotiation |
| Status indicators | HIGHWIRE coax link; Ethernet link/activity (base); Ethernet link/activity (camera); PoE-over-coax; PoE to camera; power (5/10/15/20/25W) |
| Dimensions | L 104mm W 54mm H24mm (84mm excluding connector) |
| Weight | 140g [5oz] |
| Operating temperature | -10°C to 50°C [14°F to 122°F] (supplying PoE <15W); -10°C to 40°C [14°F to 104°F] (supplying PoE Plus >15W) |
| Relative humidity | 85% non-condensing |
| Compliance | FCC, CE, RoHS |
| Installation | Switch side |
| Environment | Indoor |
