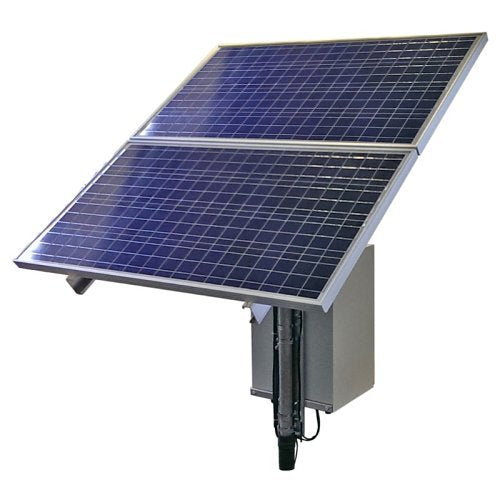

Comnet NWKSP3/NB power ethernet kit
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet NWKSP3/NB is a power ethernet kit from the NWKSP3 range.
The NetWave NWKSP3 Solar off the grid power system is designed for applications where a remote camera or wireless repeater is needed but power is not available or the cost to run power is too expensive. NetWave Solar is a complete system for providing remote power to edge communications equipment. The kit includes high quality photovoltaic solar panels, valve-regulated lead-acid batteries (NA only), outdoor enclosure, solar charge controller, PoE midspan injector and mounting hardware.
The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks operated by a special key for high security. The enclosure can be mounted on a two to four inch pole or wall mounted with the included mounting hardware. The Solar Panels include a top of pole mount requiring a 4" diameter pole.
A side of pole mount is available as an optional accessory. The included 30A solar charge controller supports an LCD screen for local diagnostics and system health monitoring, Intelligent PWM charging mode and battery protection from overcharge and over discharge while the batteries provide outstanding deep cycle and cold weather performance.
Key features
- Solar Panels feature outstanding low light performance
- High Efficiency Multicrystalline Photovoltaic Solar Panels
- Gigabit PoE+ Injector
- Intelligent Controller
- Intelligent PWM Charge Controller
- Automatic Temperature Compensation
- Adjustable Charge/Discharge Control Parameters
- Battery Low Voltage Disconnection
- Battery Reverse Connection Protection
- Overload/Short Circuit Protection
If you are matching this to an existing installation, work from the NWKSP3/NB part number rather than the description.
Specifications
Technical information
Power description
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | NWKSP3/NB |
| Product Series | NWKSP3 |
| Product Type | Power Module |
Technical information
| Output Voltage | 56V DC |
|---|
Power description
| Input Voltage | 24V DC |
|---|---|
| Output Power | 30W |
Attributes
| Input Voltage | 24V DC |
|---|---|
| Output Voltage | 56V DC |
