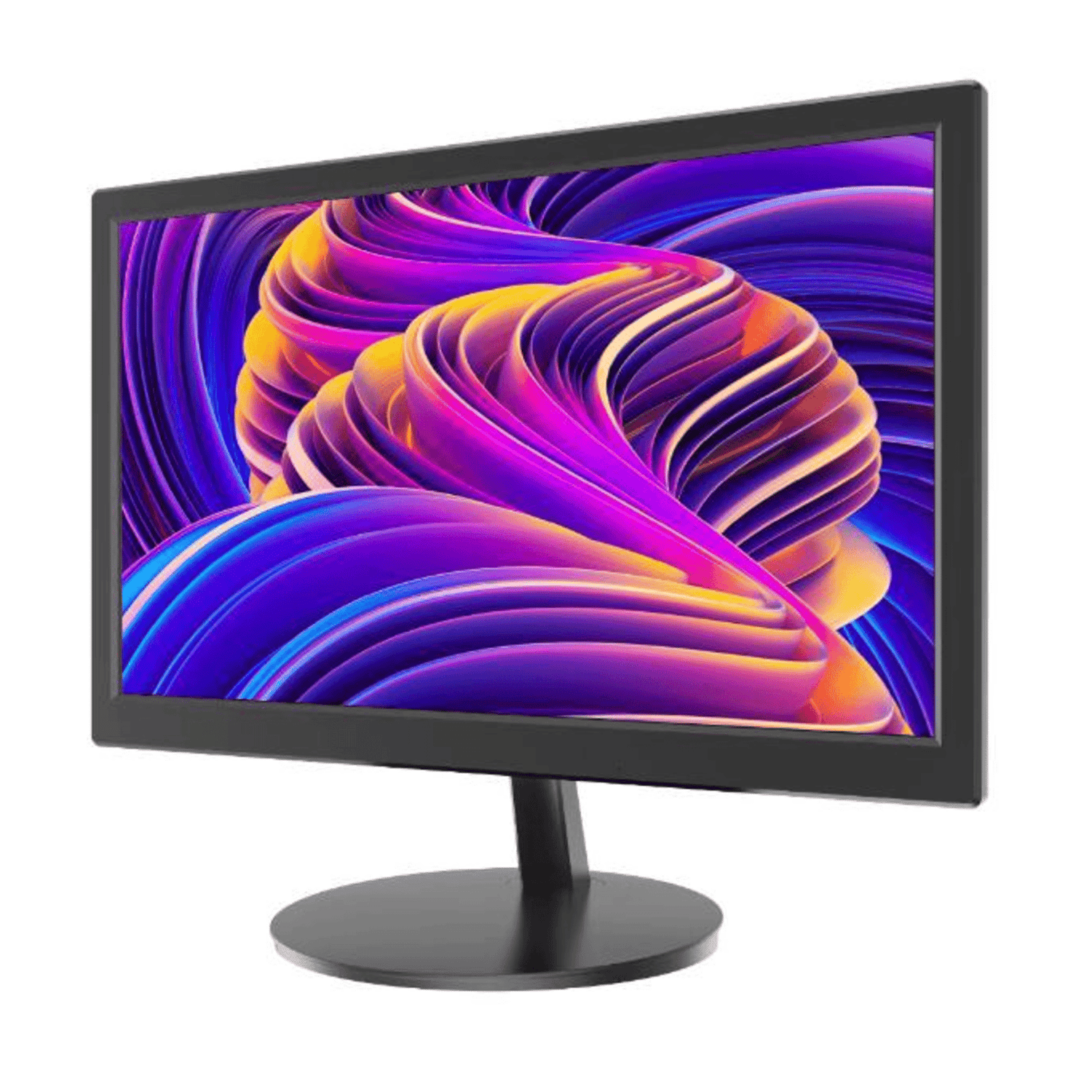

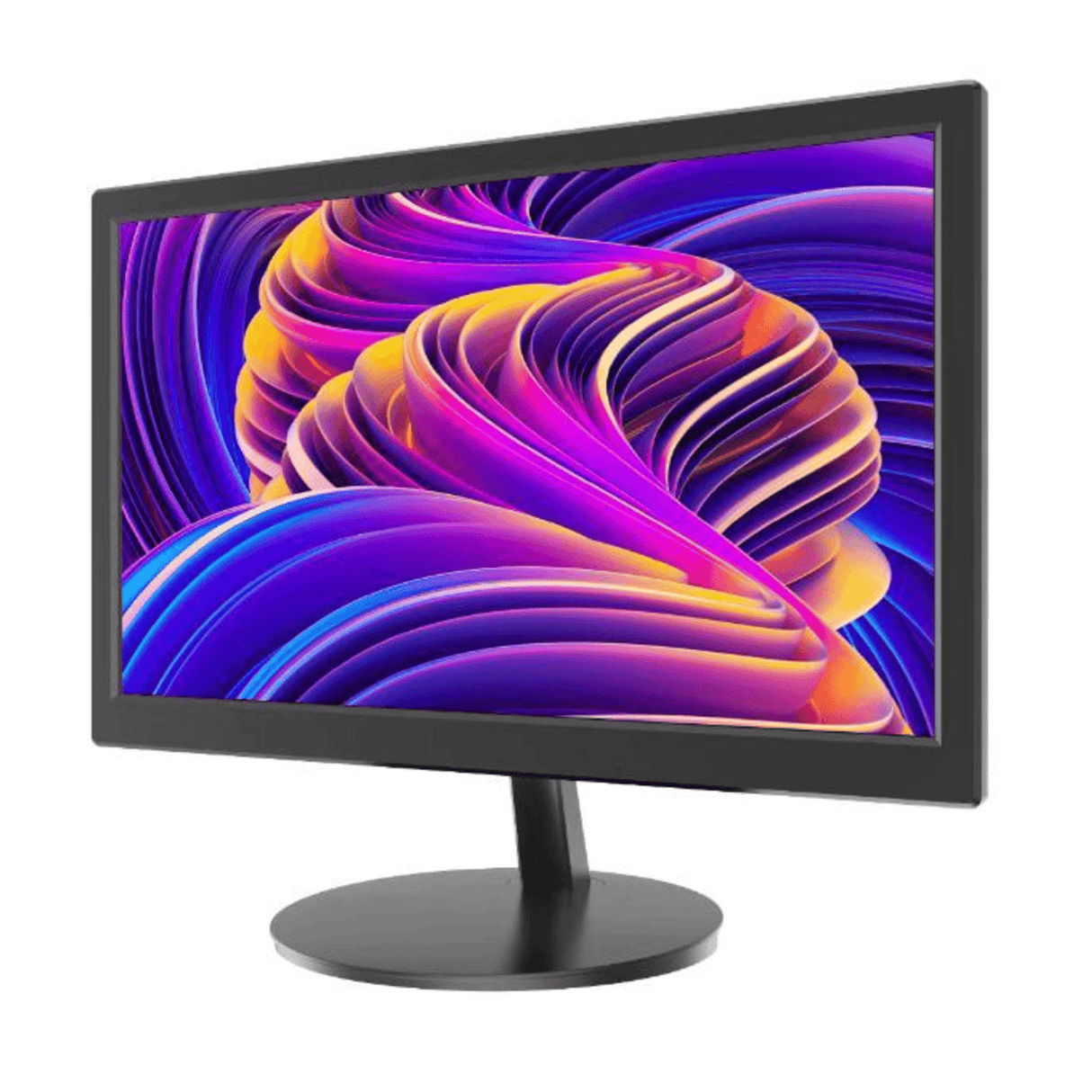

18.5 inch HD Borderless CCTV Monitor, 1366×768, HDMI/VGA, DS-D5019S0-1P0

Introduction to the 18.5in HD Borderless CCTV Monitor

Model:18.5 inch HD Borderless CCTV Monitor, DS-D5019S0-1P0 — 1366times768 resolution. This compact surveillance monitor is designed for monitoring stations, security control rooms, reception desks and light commercial installations. It combines a borderless 18.5-inch panel with essential video inputs, energy-efficient electronics and image-care features such as low-blue-light and 3D noise reduction to reduce operator fatigue during long shifts.

Key features at a glance

• Screen:18.5-inch HD (1366times768) borderless display with 8-bit colour (16.7M).
• Connectivity:HDMI 1.4 and VGA inputs — includes a 1.5 m HDMI cable.
• Image care:Low-blue-light design and 3D noise reduction for clearer images and reduced eye strain.
• Build and mounting:Slim, compact footprint, VESA 75times75 mm compatibility and a supplied desktop base.
• Power & efficiency:DC 12 V, 2.0 A operation with typical power consumption 24 W and standby 0.5 W.

Detailed specifications and benefits

• Resolution & size:18.5 inch active area (409.8 times 230.4 mm) with 1366 times 768 pixels. This HD resolution is well suited to CCTV layouts where individual camera feeds are arranged in multi-view grids without requiring 1080p bandwidth or processing overhead.
• Colour & contrast:8-bit (16.7M) colour depth and a 1000:1 contrast ratio provide acceptable colour reproduction and tonal separation for scene review and live monitoring.
• Brightness & viewing angles:E-LED backlight delivering 200 cd/mB2 brightness and wide 1786 / 1786 viewing angles. The panel stays readable from different positions in a control room, which is useful when several operators glance at the same screen.
• Response & refresh:14 ms response time with a typical 60 Hz refresh (up to 75 Hz). While not targeted at fast-paced gaming, these figures are adequate for CCTV where frame rates are normally in the 25/30 fps range.
• Durability:25% haze with 3H hardness that helps resist minor surface scratches and reduces reflections under bright overhead lighting.

• Video inputs:HDMI 1.4 and VGA inputs allow connection to modern NVRs, DVRs and computers. No audio or loop-through video output is provided, keeping the design simple for dedicated monitoring tasks.
• Power:Runs on DC 12 V (2.0 A) with 24 W max power consumption and low standby (<0.5 W), making it economical to run in multi-monitor setups.
• Mounting & footprint:VESA 75 times 75 mm mounting, supplied base for desktop placement, and compact dimensions (447 times 276 times 46 mm without base). Net weight is approximately 1.9 kg, so the monitor is easy to handle during installation.
• Package contents:Monitor, base component, 12 V/2.0 A adapter, 1.5 m HDMI cable and user manual(s)  everything required to get started in a typical CCTV installation.

Surveillance environments often require constant monitoring for long periods. The DS-D5019S0-1P0 addresses this with a low-blue-light design that reduces short-wavelength emissions linked to eye strain, and 3D noise reduction to improve clarity on compressed or noisy CCTV feeds. These features make it a practical choice for 24/7 control rooms and reception areas where operator comfort and readable imagery are priorities.

Use cases and scenarios where this monitor excels

• Security control rooms:Use as part of a wall of monitors or individual operator stations. The borderless design helps create a seamless multi-screen layout while the wide viewing angles let team members view feeds from different positions.
• Reception and front-desk monitoring:Its compact footprint and included base make it suitable for desks where space is restricted but reliable camera monitoring is needed.
• Small retail and office surveillance:Ideal for stores, small offices or branches that need a dedicated surveillance monitor without the expense of larger, higher-resolution screens.
• Temporary or mobile monitoring stations:Lightweight construction and included HDMI cable and DC adapter make it convenient for short-term deployments or transport between sites.
• Secondary screens for NVRs/DVRs:A good match for network video recorders that stream HD feeds; the monitor provides clear multi-camera layouts without demanding high-resolution decoding.

Comparisons with similar products on the market

When choosing a surveillance monitor you typically weigh size, resolution, inputs, brightness and total cost. Here is how the DS-D5019S0-1P0 compares in common decision categories:

• Versus 2224-inch 1080p monitors:Larger 1080p displays provide greater pixel density and more screen real estate for dense multi-camera grids, but they are more expensive, consume more power and may be overkill for small installations. The 18.5-inch HD monitor is a cost-effective alternative where space and budget are constrained.
• Versus cheap consumer monitors:Many low-cost consumer panels lack image-care features and have poorer viewing angles or inconsistent colour. The DS-D5019S0-1P0 targets surveillance needs with low-blue-light and 3D noise reduction as standard, making it better suited for continuous monitoring roles.
• Versus professional security-grade monitors:Pro-grade surveillance monitors may add features like hardware calibration, built-in multi-input switching, higher brightness (for bright control rooms) or integrated speakers. This model opts for simplicity and value rather than premium features, delivering essential performance at a lower price point.
• Connectivity trade-offs:The inclusion of HDMI and VGA covers most onsite equipment, but the lack of DisplayPort, loop-through video or audio outputs may be limiting in complex AV setups. For straightforward CCTV/DVR/NVR connections, the provided inputs are sufficient.

Buying considerations, price and warranty

• This places the monitor in the budget-to-mainstream surveillance category where value and essentials are the primary selling points.
• Cost-effectiveness:With a low power draw (<=24 W) and included accessories (HDMI cable and power adapter), the monitor reduces the need for extra purchases and is economical for multi-screen deployments.
• Warranty and compliance:No explicit warranty information was supplied with the product data here. Buyers should verify warranty terms, CE/UKCA or local certification and return policies with the retailer or manufacturer before purchase.
• Installation tips:Observe VESA mounting guidelines (75 times 75 mm) and turn off and disconnect power before installing. Use appropriate fixings and rated tools when mounting to walls or racks.

Conclusion  why the DS-D5019S0-1P0 is a compelling choice

The 18.5 inch HD Borderless CCTV Monitor (DS-D5019S0-1P0) is a focused, practical display built around the needs of surveillance and light commercial installations. It delivers a compact borderless design, essential connectivity (HDMI + VGA), operator-friendly image care features and efficient power consumption. For security control rooms, reception desks and small retail or office surveillance setups where cost, compactness and readability are the priorities, this monitor represents a solid, value-oriented option.

Before purchasing, confirm warranty and compliance details with your supplier and consider whether your deployment would benefit more from a higher-resolution or feature-rich display. If your priority is dependable day-to-day monitoring with minimal fuss and affordable cost per screen, the DS-D5019S0-1P0 is worth considering.
