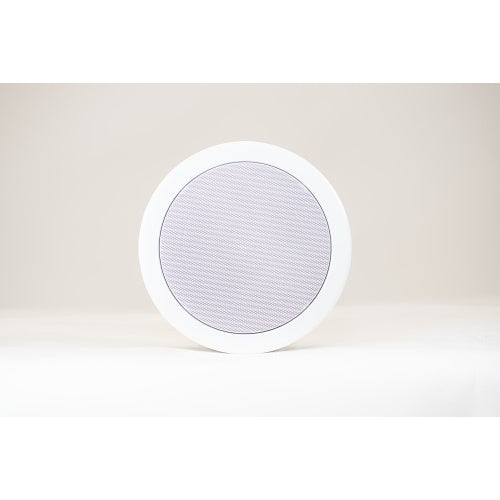

Penton RCS8TCOAX coaxial ceiling speaker, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Penton RCS8TCOAX is a coaxial ceiling speaker.
This unit shall be the PENTON model RCS8/TCOAX or equal and approved. The loudspeaker baffle shall be a round two part bezel comprising an inner metal mesh grille, and chassis with integral loudspeaker having no visible fixings. Assembly shall comprise of a bass/mid-range 215mm diameter coned loudspeaker and a 25mm Mylar dome tweeter complete with 12.5mm moving coil and neodymium magnet.
The unit shall be fitted with a 20 watt/100 volt line factory mounted transformer with the power taps clearly marked on the assembly. Connection will be via a 3 way terminal capable of taking 2 x 2.5mm2 conductors. The loudspeaker shall have a wide-angle dispersion.
The cone shall be a damped, high compliance type with a smooth extended frequency response.
Key features
- 20 watt power handling with 100 volt line transformer
- Round two-part metal grille bezel with no visible fixings
- Includes 215mm diameter coned bass/mid-range loudspeaker
- 25mm Mylar dome tweeter with 12.5mm moving coil and neodymium magnet
- 3-way terminal connections for 2 x 2.5mm² conductors
- Wide-angle sound dispersion
- Damped high compliance cone with smooth extended frequency response
If you are matching this to an existing installation, work from the RCS8TCOAX part number rather than the description.
Specifications
Audio
Physical characteristics
Specifications
| Brand Name | Penton |
|---|---|
| Manufacturer Part Number | RCS8TCOAX |
Audio
| Maximum Frequency Response | 20kHz |
|---|---|
| Minimum Frequency Response | 60Hz |
Physical characteristics
| Colour | White |
|---|
Penton RCS8TCOAX coaxial ceiling speaker, White
