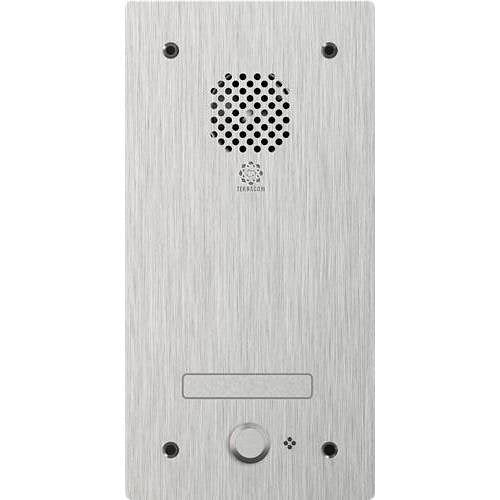

Penton TERRA-DS1 intercom system, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Penton TERRA-DS1 is an intercom system.
The TERRACOM audio communication, messaging and intercommunication platform is a suite of products designed to transmit live audio paging, stored messaging, background music, 2-Way intercommunications, control input/output triggers, and audio monitoring over TCP/IP. The TERRACOM range supports POE (Power over Ethernet), and/or can be powered locally with external 24V DC power supply. The network infrastructure of TERRACOM uses any existing network, and via a router will allow connection to the Internet for transmission and control.
A built-in browser interface allows simplied control and program mapping of the TERRACOM devices, with the option of using TerraManager or TerraServer for more complex applications.
Key features
- 4 contact inputs and 2 contact outputs
- Stainless steel front panel
- Built-in condenser microphone
If you are matching this to an existing installation, work from the TERRA-DS1 part number rather than the description.
-
Download
- TERRA-DS1 — Product Manual
Specifications
Technical information
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Penton |
|---|---|
| Manufacturer Part Number | TERRA-DS1 |
| Product Type | Intercom System |
Technical information
| Communication Mode | Full-duplex |
|---|---|
| Power Consumption | 3.1200W |
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 35.00mm |
| Durability | Vandal Resistant |
| Height | 220.00mm |
| Material | Stainless Steel |
| Weight | 808.00g |
| Width | 110.00mm |
Power description
| Input Voltage | 24V DC |
|---|
Attributes
| Input Voltage | 24V DC |
|---|---|
| Weight | 808.00g |
