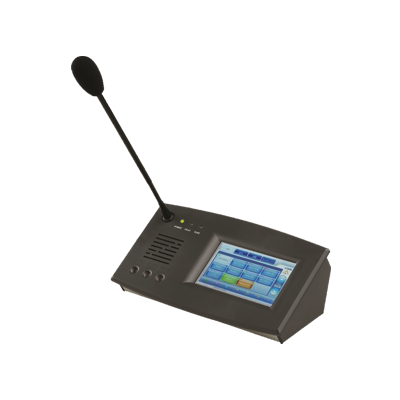

WME: PPM-IT5, Full Colour Screen IP Paging Console, Touch Screen Interface, 18-26 VDC
About this product
The PPM-IT5 is an advanced IP, POE paging console designed to facilitate seamless paging and intercom communications with all TERRACOM devices, as well as integration with the IDA8 & DIVA Controllers. With its intuitive 5" full-colour backlit TFT touch screen, users can operate the device with ease.
- Voltage: 18 - 26 VDC
- Power Consumption: 250 mA
- Frequency Response: -3 dB @ 200 Hz to 8 kHz
- THD: < 1% @ 1 kHz
- Output Impedance: 100 Ω
This versatile solution is perfect for various commercial applications, including shopping centres, offices, and transportation hubs.
-
Download
- ppm it5
- PPM-IT5 spec
Specifications
Dimensions
Specifications
| ITM No. | ITM002746 |
|---|---|
| Manufacturer | Penton |
| Type of Product | Simple |
| New Product | No |
Dimensions
| Height | 75 mm |
|---|---|
| Width | 250 mm |
| Depth | 140 mm |
PPM-IT5 IP Paging Console with Touchscreen features
WME: PPM-IT5, Full Colour Screen IP Paging Console, Touch Screen Interface, 18-26 VDC
