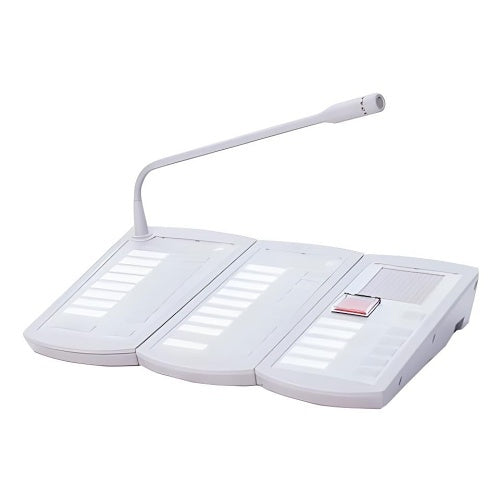

Penton DPM-EVA public address system, Grey
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Penton DPM-EVA is a public address system from the DPM range.
The DPM-MAIN is the digital paging console which provides with programmable buttons and talk button. The DPM-KPD is a keypad used to expand keys of the DPM-MAIN, and the DPM-EVA is a monitoring speaker pad with an button and extra 5 programmable buttons.
Key features
- Up to 8 paging consoles can be conntected to BTQ-SL8, and 16 on BTQ-VM4/VM8/SG8, the wiring can be daisy-chain or in redundant loop
- Microphone capsule monitoring
- AGC (Automatic gain control) function
If you are matching this to an existing installation, work from the DPM-EVA part number rather than the description.
-
Download
- DPM-EVA — Product Manual
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Penton |
|---|---|
| Manufacturer Part Number | DPM-EVA |
| Product Series | DPM |
| Product Type | Public Address System |
Certifications
| Certifications & Standards | CE/EMC, CE/EMI |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Grey |
|---|---|
| Depth | 200.00mm |
| Height | 46.00mm |
| Width | 96.00mm |
Power description
| Input Voltage | 21-29V DC |
|---|---|
| Power Source | DC Power |
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Input Voltage | 21-29V DC |
|---|---|
| Power Source | DC Power |
Penton DPM-EVA public address system, Grey
