Duceri D5403WH Emergency Self-Test Surface Downlight 3W LED IP44 Interchangeable Open & Corridor Lens Lithium Battery Maintained White
£
44
40
(Incl. VAT)
5 Years Warranty
Emergency Self-Test Surface Downlight 3W LED IP44 Interchangeable Open & Corridor Lens Lithium Battery Maintained White
About this product
About this product

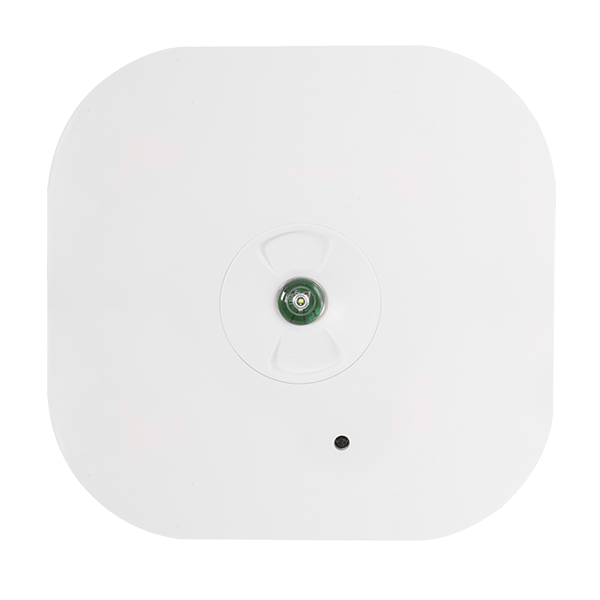

The Duceri D5403WH, from ESP's Emergency Lighting range, is a white 3W LED emergency downlight with a self test facility, supplied with an open and a corridor lens. It runs maintained or non-maintained, for a 3 hour duration from its 3.2V 1500mAh LiFePO4 battery.
Key features
- High power 3W LED, 5500 K
- Self test facility
- Maintained & non-maintained operation
- Supplied with open & corridor lens
- Emergency output: 118 lm (open lens), 110 lm (corridor lens)
- 3.2V 1500mAh LiFePO4 battery, 3 hour duration
- Green LED charging indicator
- BS EN 60598-2-22 standards
Frequently asked questions
How long does it run in an emergency?
3 hours, from a 3.2V 1500mAh LiFePO4 battery.
Is it maintained or non-maintained?
Either: it supports maintained and non-maintained operation.
Which lenses come with it?
An open lens and a corridor lens are supplied.
Can it be flush mounted?
A flushing kit, EMSTSDLFLUSH, is an accessory for it.
Which replacement battery does it take?
The D001.
-
Download
- D5403WH Tech Sheet
£
44
40
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
169 x 169 x 50
Colour Temperature (K)
5500
Colour
White
Mains Luminous Flux (Open Lens)(Lm)
147
Materials
Polycarbonate Housing
Mains Luminous Flux (Corridor Lens)(Lm)
138
Mounting
Ceiling or Wall Mounted - flush kit available
Emergency Luminous Flux (Opens Lens)(Lm)
118
Weight (Kg)
0.4
LED Lamp Type
High Power 3W LED
Warranty (Years)
5
LED Life (Hours)
40000
Supply Voltage (V AC)
220 - 240
Emergency Operation
Maintained or Non-Maintained
Frequency (Hz)
50
Status Indication
Green LED
Safety
Charge & Discharge Protection
Replacement Battery
D001
Power Consumption (W)
3
Accessories
EMSTSDLFLUSH: Flushing Kit
Emergency Luminous Flux (Corridor Lens)(Lm)
110
Battery Specification
3.2V 1500mAh LiFePO4
Battery Duration (Hours)
3
Standards
BS EN 60598-2-22
Dimensions
Dimensions (mm)
169 x 169 x 50
Specifications
| Dimensions (mm) | 169 x 169 x 50 |
|---|---|
| Colour Temperature (K) | 5500 |
| Colour | White |
| Mains Luminous Flux (Open Lens)(Lm) | 147 |
| Materials | Polycarbonate Housing |
| Mains Luminous Flux (Corridor Lens)(Lm) | 138 |
| Mounting | Ceiling or Wall Mounted - flush kit available |
| Emergency Luminous Flux (Opens Lens)(Lm) | 118 |
| Weight (Kg) | 0.4 |
| LED Lamp Type | High Power 3W LED |
| Warranty (Years) | 5 |
| LED Life (Hours) | 40000 |
| Supply Voltage (V AC) | 220 - 240 |
| Emergency Operation | Maintained or Non-Maintained |
| Frequency (Hz) | 50 |
| Status Indication | Green LED |
| Safety | Charge & Discharge Protection |
| Replacement Battery | D001 |
| Power Consumption (W) | 3 |
| Accessories | EMSTSDLFLUSH: Flushing Kit |
| Emergency Luminous Flux (Corridor Lens)(Lm) | 110 |
| Battery Specification | 3.2V 1500mAh LiFePO4 |
| Battery Duration (Hours) | 3 |
| Standards | BS EN 60598-2-22 |
Dimensions
| Dimensions (mm) | 169 x 169 x 50 |
|---|
