Ubiquiti Products

Ubiquiti makes Wi-Fi and wireless networking equipment used in homes, offices and internet service provider links. This page holds the Ubiquiti range we carry: UniFi access points such as the UAP-NANOHD and the in-wall UAP-IW-HD, airMAX bridges such as the NanoBeam NBE-5AC-GEN2 and the 60 GHz GigaBeam GBE-LR, the LiteAP AC LAP-120 sector AP and AMO-5G13 omni antenna, the EdgeSwitch ES-5XP, PoE power units and the UB-AM mount.

Choosing Ubiquiti Products

Ubiquiti networking equipment here includes UniFi Wi-Fi access points, airMAX wireless bridges and sector access points for links between sites, and PoE injectors. Choose Ubiquiti equipment by the job it has to do: Wi-Fi inside a building, a wireless link between sites, or the power and switching that feeds them.

UniFi access points

The UAP-NANOHD is a dual-band 802.11ac Wave 2 access point for high-density spaces, with maximum speeds of 1733Mbit/s, support for 200+ concurrent users and Power over Ethernet. The UAP-IW-HD mounts in the wall, adds a 4-port gigabit switch and is set up through the UniFi Controller, for offices, hotels and homes.

Wireless bridges and sector links

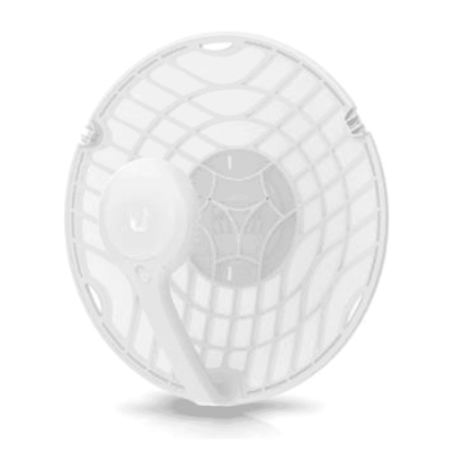

A point-to-point bridge links two buildings or sites without a cable. The NBE-5AC-GEN2 NanoBeam is a 5 GHz airMAX ac bridge with a range of up to 15 km and throughput over 450 Mbps. The GBE-LR GigaBeam pairs a 60 GHz radio with a 5 GHz backup radio and a 2.4 GHz management radio for backhaul above 1 Gbps. For point-to-multipoint coverage, the LAP-120 LiteAP AC is a 5 GHz sector access point with a 16 dBi, 120° antenna, and the AMO-5G13 is a 13 dBi omni antenna for 360° base stations.

Power and switching

The GBE-LR and LAP-120 come with 24V, 0.5A passive PoE injectors, and the POE-24-12W-G is a separate 24V DC, 0.5A (12W) gigabit injector for Ubiquiti 24V PoE devices. The INS-3AF-I-G converts 802.3af PoE from a standard switch to 24V passive PoE. The ES-5XP EdgeSwitch is a managed gigabit switch with 5 PoE ports at 24V passive, 60W maximum consumption and up to 11.5W per port.

ModelTypeRadio or powerUse
UAP-NANOHDUniFi access pointDual-band, PoEHigh-density indoor Wi-Fi
UAP-IW-HDUniFi in-wall access pointDual-band, PoEOffices, hotels and homes
NBE-5AC-GEN2NanoBeam bridge5 GHz, 19 dBiPoint-to-point, used in pairs
GBE-LRGigaBeam bridge60 GHz, 5 GHz backupHigh-capacity backhaul
LAP-120LiteAP AC sector AP5 GHz, 16 dBi, 120°Point-to-multipoint
AMO-5G13airMAX Omni antenna5.45–5.85 GHz, 13 dBi360° base stations
ES-5XPEdgeSwitch5 PoE ports, 24V passiveManaged switching

Related categories

Browse Ubiquiti access points and Ubiquiti wireless bridges, power devices with PoE injectors and splitters or PoE switches, connect them with network cables & accessories, or see the wider data and networking range.

Frequently asked questions

What does Ubiquiti make?

Ubiquiti is a US networking company that makes Wi-Fi access points, outdoor wireless bridges and radios, switches and gateways. Its UniFi line covers building networks managed from one controller, while airMAX radios link sites and serve wireless internet customers. Many of its devices take power over the network cable. The range here includes UniFi access points, airMAX bridges, PoE power units and EdgeSwitch switches.

What are UniFi products?

UniFi is Ubiquiti's line of business-grade networking equipment, including Wi-Fi access points, switches, gateways and cameras, managed together from one controller or app. Access points can be added as a site grows, and users roam between them. Many UniFi access points take power over PoE. The range here includes UniFi ceiling and in-wall access points.

What is Ubiquiti airMAX?

airMAX is Ubiquiti's range of outdoor wireless radios and antennas for point-to-point bridges and point-to-multipoint links. A pair of airMAX bridges can join two buildings without a cable, and sector or omni base stations can serve several remote sites. It uses Ubiquiti's own radio protocol for long-distance links. The range here includes NanoBeam and GigaBeam bridges, a sector access point and an omni antenna.
