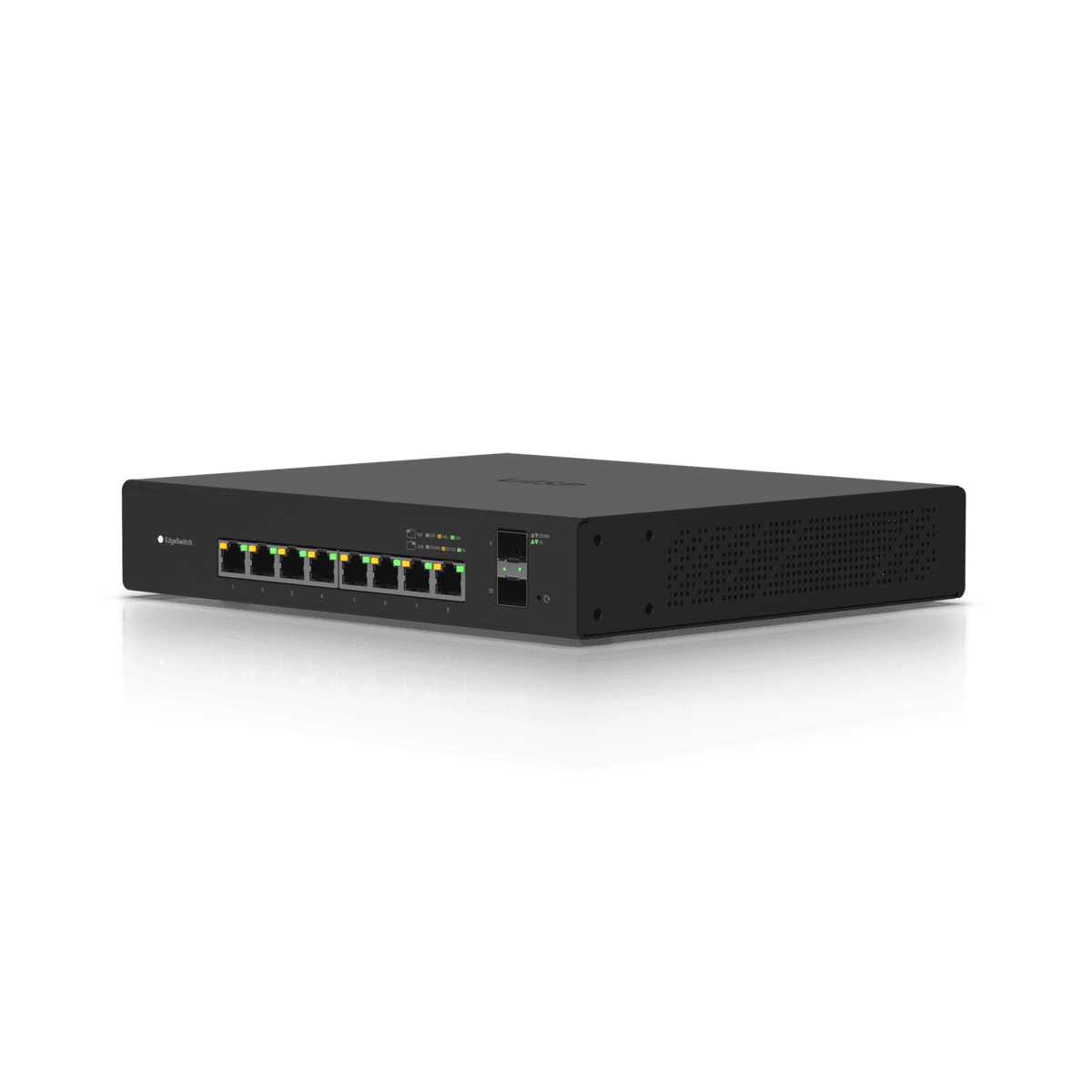

Ubiquiti ES-8-150W EdgeSwitch Managed PoE+ Gigabit Switch, 8 PoE+ Ports, 150W PoE
About this product
The Ubiquiti EdgeSwitch 8 PoE (ES-8-150W) is a fully managed PoE+ Gigabit switch with (8) GbE RJ45 ports and (2) 1G SFP ports, giving 150W of total PoE. Each RJ45 port supports auto-sensing IEEE 802.3af/at PoE or configurable 24V passive PoE, and the switch adds advanced Layer-2 switching with Layer-3 routing capability.
Key features
- (8) GbE RJ45 ports and (2) 1G SFP ports
- Auto-sensing IEEE 802.3af/at PoE or configurable 24V passive PoE
- 150W total PoE budget
- Max. PoE wattage per port: PoE+ 34.2W, passive PoE 17W
- 20 Gbps switching capacity and 14.88 Mpps forwarding rate
- Internal 150W AC/DC PSU plus a 42–56V DC terminal block input
- Advanced Layer-2 switching features with Layer-3 routing capability
- Wallmountable with mount brackets (included) or desktop-mountable
Frequently asked questions
How much PoE power does the ES-8-150W provide?
The total PoE budget is 150W, with a max. PoE wattage per port of 34.2W for PoE+ and 17W for passive PoE.
Does it support 24V passive PoE?
Yes. The ports support auto-sensing IEEE 802.3af/at PoE or configurable 24V passive PoE. 802.3af/at devices are detected automatically, while 24V passive PoE is enabled manually in the EdgeSwitch Configuration Interface.
Can it run from DC power?
Yes. Besides the internal 100-240V AC PSU, it has a 42–56V DC terminal block input with self-correcting polarity protection, usable as a redundant or stand-alone input.
How is the ES-8-150W mounted?
It is wallmountable with the included mount brackets, or desktop-mountable. Do not physically stack the ES-8-150W.
What uplink ports does it have?
(2) 1G SFP ports, providing up to 1 Gbps uplinks.
What operating temperature range does it support?
-25 to 45° C with the internal AC/DC supply at 150W, -25 to 55° C at 100W, and -25 to 60° C on external DC.
Specifications
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | ES-8-150W |
| Manufacturer Part Number (MPN) | ES-8-150W |
| Dimensions | 204 x 43 x 235 mm |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Networking interface | (8) GbE RJ45 ports, (2) 1G SFP ports |
| PoE interface | (8) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-), (8) 24V/0.7A passive PoE 2-pair (Pins 4, 5+; 7, 8-) |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Power method | 100-240V AC, universal input, 50/60 Hz, AC/DC integrated PSU; 42–56V DC terminal block, external input (Self-correcting polarity protection) |
| Power supply | AC/DC, internal, 150W DC |
| Max. power consumption | 20W (Excludes PoE output) |
| Total PoE | 150W |
| Max. PoE wattage per port by PSE | PoE+: 34.2W, Passive PoE: 17W |
| Voltage range PoE mode | PoE+: 50–57V, Passive PoE: 20–27V |
| ESD/EMP protection | Air/contact: ± 24kV |
| LEDs | System: status; Ethernet ports: PoE, link/speed/activity; SFP ports: link/speed/activity |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | Internal AC/DC at 150W: -25 to 45° C (-13 to 113° F); Internal AC/DC at 100W: -25 to 55° C (-13 to 131° F); External DC: -25 to 60° C (-13 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Wallmount | Yes (mount brackets included) |
| Certifications | CE, FCC, IC, Anatel: 07833-18-08356 |
| NDAA Compliant | Yes |
