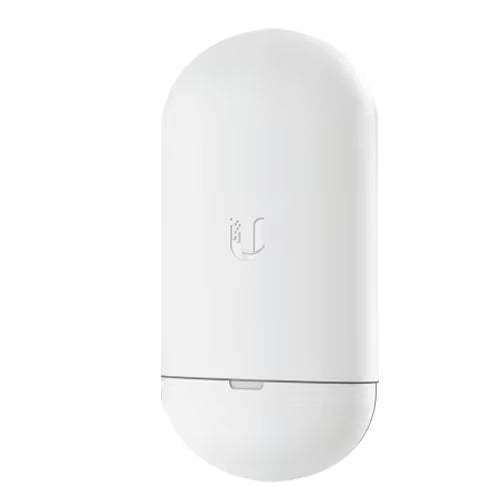

Ubiquiti LOCO5AC 5 GHz airMAX AC Radio, 13 dBi, Passive PoE
About this product
The Ubiquiti LOCO5AC (airMAX NanoStation 5AC Loco) is a 5 GHz airMAX AC radio with a 13 dBi dual-linear antenna that operates as an access point or station, suitable for indoor and outdoor installations. It has a (1) GbE RJ45 port and runs on passive PoE from a 24V, 0.3A gigabit PoE supply, which is not included.
Key features
- 13 dBi antenna gain, dual-linear polarization
- Antenna beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
- 5150 - 5875 MHz worldwide frequency range
- Up to 450+ Mbps real TCP/IP throughput
- Channel bandwidth 10/20/30/40/50/60/80 MHz
- Dedicated Wi-Fi radio for management (2412 - 2472 MHz)
- (1) GbE RJ45 port with passive PoE 2-pair power
- Pole mount included
Frequently asked questions
Does the LOCO5AC come with a PoE power supply?
No. It needs a 24V, 0.3A gigabit PoE supply, which is not included; the recommended PoE adapter is the POE-24-12W-G.
What antenna gain does it have?
13 dBi, with dual-linear polarization and an antenna beamwidth of 45° (H-pol) / 45° (V-pol) / 45° (Elevation).
Can it be installed outdoors?
Yes. It is suitable for indoor and outdoor installations, with an ambient operating temperature of -40 to 70° C (-40 to 158° F).
Which operating modes does it support?
Access Point and Station.
How is it mounted?
A pole mount is included.
What throughput can it reach?
Up to 450+ Mbps real TCP/IP throughput.
Specifications
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | LOCO5AC |
| Manufacturer Part Number (MPN) | LOCO5AC |
| Dimensions | 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3") |
| Weight | 180 g (6.4 oz) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE supply (Not Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 7W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 01405-19-08356 |
| Operating Modes | Access Point, Station |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 13 dBi |
| Max. VSWR | 1.8:1 |
| Polarization | Dual-Linear |
| Antenna beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Cross-Pol Isolation | Min. 20 dB |
| Supported Frequency Range (Worldwide) | 5150 - 5875 MHz |
| Management Radio (Worldwide) | 2412 - 2472 MHz |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
