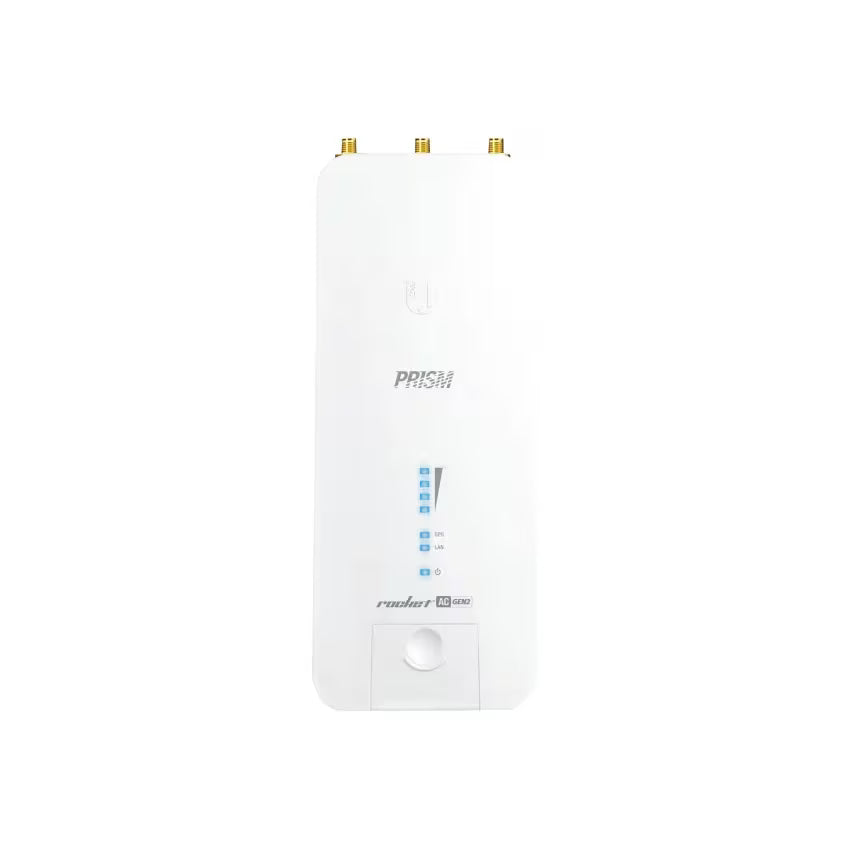

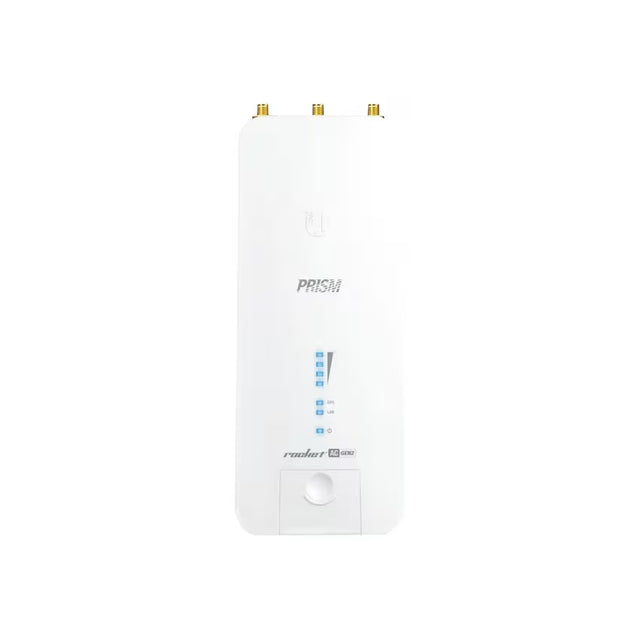

Ubiquiti RP-5AC-GEN2 5 GHz airMAX ac BaseStation Radio, airPrism, GPS Sync
About this product
The Ubiquiti RP-5AC-GEN2 (airMAX Rocket Prism 5AC, RP-5AC-Gen2) is a 5 GHz airMAX ac radio BaseStation with airPrism active RF filtering technology, for pairing with airMAX ac antennas: RocketDish ac for PtP backhaul or airMAX ac Sector for PtMP links. It operates as an access point or station across 5150–5875 MHz and is designed to deliver up to 500+ Mbps Real TCP/IP throughput.
Key features
- airPrism technology removes up to an additional 30+ dB of adjacent channel interference
- Up to 500+ Mbps Real TCP/IP throughput
- GPS frame synchronization for co-located Rocket Prism 5AC Gen 2 radios
- 5150–5875 MHz worldwide frequency range
- (2) RP-SMA (Waterproof) and (1) GPS (Waterproof) RF connections
- 28 dBm output power
- (1) GbE RJ45 port, passive PoE, 24V, 1A gigabit PoE adapter (Included)
- Dedicated Wi-Fi radio for management
Frequently asked questions
Which antennas does the RP-5AC-GEN2 pair with?
airMAX ac antennas: RocketDish ac for PtP backhaul or airMAX ac Sector for PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install it.
Is a PoE adapter included?
Yes. A 24V, 1A gigabit PoE adapter is included, powering it by passive PoE 2-pair (4, 5+; 7, 8 return).
Does it support GPS synchronisation?
Yes. Precise GPS frame synchronization lets co-located Rocket Prism 5AC Gen 2 radios transmit and receive without interfering with each other; GPS sync support is in airOS firmware v8.3.0 and newer.
What throughput can it reach?
It is designed to deliver up to 500+ Mbps Real TCP/IP throughput, and up to 330+ Mbps (maximum 40 MHz channel width) for PtMP links.
How many radios fit on the airPrism sector antenna?
Three Rocket Prism 5AC Gen 2 radios can be mounted on the AP-5AC-90-HD for PtMP links.
What temperature range does it operate in?
Ambient operating temperature is -40 to 80° C (-40 to 176° F).
Specifications
Specifications
| Brand | Ubiquiti |
|---|---|
| Model | RP-5AC-GEN2 |
| Manufacturer Part Number (MPN) | RP-5AC-GEN2 |
| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Materials | Die-cast aluminum |
| Wind Loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 1A gigabit PoE adapter (Included) |
| Max. Power Consumption | 9.5W |
| GPS | Yes |
| RF Connections | (2) RP-SMA (Waterproof), (1) GPS (Waterproof) |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC, RoHS, Anatel: 02137-18-08356 |
| Operating Modes | Access Point, Station |
| Channel Bandwidth | PtP mode: 10/20/30/40/50/60/80 MHz, PtMP mode: 10/20/30/40 MHz |
| Supported Frequency Range (Worldwide) | 5150–5875 MHz |
| Management Radio (Worldwide) | 2412–2472 MHz |
| Output Power | 28 dBm |
| Processor Specs | Atheros MIPS 74Kc |
| Memory | 128 MB DDR2 SDRAM |
| Security | WPA2 AES Only |
| Colour | White |
