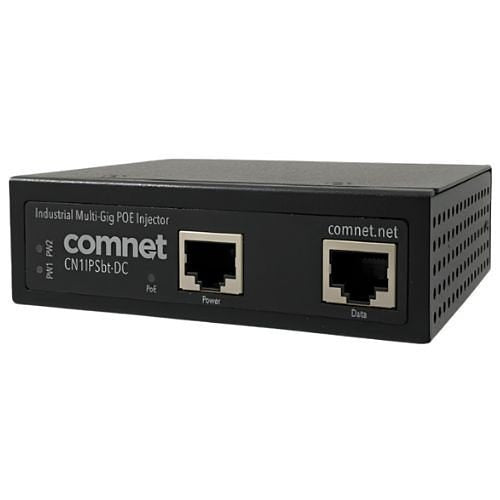

Comnet CN1IPSBT-DC PoE injector, DIN Rail, Wall Mount

Visit Data & Networking
Free Delivery
£ 275 75
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CN1IPSBT-DC is a PoE injector.

The Comnet CN1IPSbt-DC is an industrial grade / environmentally hardened PoE injector that complies with the PoE standard as defined by the IEEE 802.3bt Type 4 while maintaining backward compatibility with the previous standards as defined by IEEE802.3at-2009 and IEEE802.3af-2003. The media converter consists of one 10/100/1000/2.5G/5G/10GBASE-T(X) RJ-45 Ethernet port and one auto-negotiating 10/100/1000/2.5G/5G/10GBASE-T(X) RJ-45 PSE port. When supplied with an operating power input of 52 to 56 VDC, PoE that is compliant with the PoE standard as defined by IEEE 802.3bt Type 4 is injected, capable of delivering up to 90W of PoE to a compliant powered device (PD).

CN1IPSbt-DC is designed to allow for optional redundant operating power inputs.

Key features

  • Plug-and-play design
  • IEEE 802.3bt Compliant
  • 10/100/1000BASE-T(X) Port supports autonegotiation and automatic MDI/MDI-X
  • Easily combines power and 10/100/1000BASET(X) Ethernet
  • Housed in a compact, rugged, light-weight package
  • Provides up to 90W of PoE for ultra high power PDs
  • Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40C to +75C degrees ambient)

If you are matching this to an existing installation, work from the CN1IPSBT-DC part number rather than the description.

£ 275 75
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£275.75 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CN1IPSBT-DC
Product Type
PoE Injector
Environmental conditions
Operating Relative Humidity (H-H)
5-95%
Operating Temperature (T-T)
-40-75°C
Storage Temperature (T-T)
-40-85°C
Network & communication
Networking Standards
IEEE 802.3bt
Power description
Input Voltage
9-15V DC
Maximum Output Power
90.00W
Maximum Output Voltage
56V
Minimum Output Voltage
52V
Power over Ethernet (PoE)
Yes
Product information
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Environmental certification
CE, IEEE 802.3bt, NEMA, UL/ULC
Attributes
Environmental status
Yes
Input Voltage
9-15V DC
Maximum Output Power
90.00W
Specifications
Environmental conditions
Network & communication
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Comnet
Manufacturer Part Number CN1IPSBT-DC
Product Type PoE Injector

Environmental conditions

Operating Relative Humidity (H-H) 5-95%
Operating Temperature (T-T) -40-75°C
Storage Temperature (T-T) -40-85°C

Network & communication

Networking Standards IEEE 802.3bt

Power description

Input Voltage 9-15V DC
Maximum Output Power 90.00W
Maximum Output Voltage 56V
Minimum Output Voltage 52V
Power over Ethernet (PoE) Yes

Product information

Mount Type DIN Rail Mount, Wall Mount

Miscellaneous

Environmental certification CE, IEEE 802.3bt, NEMA, UL/ULC

Attributes

Environmental status Yes
Input Voltage 9-15V DC
Maximum Output Power 90.00W

Comnet CN1IPSBT-DC PoE injector

Comnet CN1IPSBT-DC PoE injector, DIN Rail, Wall Mount

Who this is for

For the installer — this is the PoE injector supplied under Comnet part number CN1IPSBT-DC. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a PoE injector made by Comnet. The part number CN1IPSBT-DC is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE injector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE injector I have been quoted? Check the manufacturer part number CN1IPSBT-DC against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CN1IPSBT-DC answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
