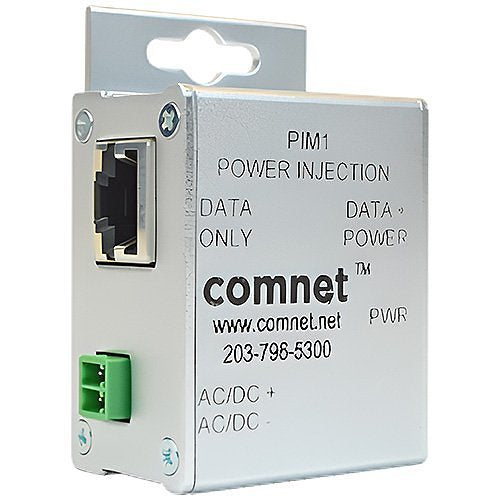

Comnet PIM1 PoE module, Silver

£ 81 10
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet PIM1 is a PoE module from the PIM1 range.

The Comnet PIM1 is a low-cost industrial passive power over Ethernet (PoE) midspan injection module that injects a passive voltage of 12 to 48 VDC at up to 0.625 amperes to the unused pairs of any UTP or STP CAT-3, CAT-4, or CAT-5 network cable. Operating power and 10/100TX Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. Housed in a compact, rugged, light-weight package, the unit is powered by a customer furnished power supply.

The PIM1 provides passive power at the same voltage level as the input power supply and can be used to power any devices that do not require IEEE 802.3af/at negotiation such as many legacy PoE devices. Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for devices drawing a maximum of 30 watts. The PIM1 is a true plug-and-play product requiring no user configuration or other set-up.

Key features

  • Industrial passive PoE midspan injector
  • Supports 10/100TX Ethernet data
  • Injects 12 to 48 VDC at up to 0.625 amperes
  • Compatible with UTP and STP CAT-3, CAT-4, CAT-5 cables
  • Combines power and data on one cable
  • Compact, rugged, and lightweight design
  • Supports transmission distances up to 330 feet (100 meters)
  • Supplies up to 30 watts of power
  • Plug-and-play with no user configuration needed

If you are matching this to an existing installation, work from the PIM1 part number rather than the description.

£ 81 10
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£81.10 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
PIM1
Product Series
PIM1
Product Type
PoE Module
General information
Maximum Transfer Distance
100m
Packaged Quantity
1
Environmental conditions
Operating Relative Humidity (H-H)
0-95%
Operating Temperature (T-T)
-40-75°C
Storage Temperature (T-T)
-40-85°C
Interfaces/ports
Input Ports
1 x 10/100Base-TX
Output Ports
PoE
Network & communication
Networking Standards
IEEE 802.3af, IEEE 802.3at
Physical characteristics
Colour
Silver
Depth
27.00mm
Height
40.60mm
Width
40.00mm
Power description
Input Voltage
12V DC
Maximum Input Current
0.62A
Maximum Output Current
625.0mA
Maximum Output Power
30.00W
Maximum Output Voltage
48V
Minimum Output Voltage
12V
Power over Ethernet (PoE)
Yes
Product information
Length
58.00mm
Mount Type
DIN Rail Mount
Miscellaneous
Compatibility
Comnet NetWave Wireless Router
Environmental status
Yes
Attributes
Compatibility
Comnet NetWave Wireless Router
Input Voltage
12V DC
Maximum Output Power
30.00W

Specifications

Brand Name Comnet
Manufacturer Part Number PIM1
Product Series PIM1
Product Type PoE Module

General information

Maximum Transfer Distance 100m
Packaged Quantity 1

Environmental conditions

Operating Relative Humidity (H-H) 0-95%
Operating Temperature (T-T) -40-75°C
Storage Temperature (T-T) -40-85°C

Interfaces/ports

Input Ports 1 x 10/100Base-TX
Output Ports PoE

Network & communication

Networking Standards IEEE 802.3af, IEEE 802.3at

Physical characteristics

Colour Silver
Depth 27.00mm
Height 40.60mm
Width 40.00mm

Power description

Input Voltage 12V DC
Maximum Input Current 0.62A
Maximum Output Current 625.0mA
Maximum Output Power 30.00W
Maximum Output Voltage 48V
Minimum Output Voltage 12V
Power over Ethernet (PoE) Yes

Product information

Length 58.00mm
Mount Type DIN Rail Mount

Miscellaneous

Compatibility Comnet NetWave Wireless Router
Environmental status Yes

Attributes

Compatibility Comnet NetWave Wireless Router
Input Voltage 12V DC
Maximum Output Power 30.00W

Comnet PIM1 PoE module, silver

Comnet PIM1 PoE module, Silver

Who this is for

For the installer — this is the PoE module supplied under Comnet part number PIM1. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a PoE module made by Comnet. The part number PIM1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE module I have been quoted? Check the manufacturer part number PIM1 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PIM1 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
