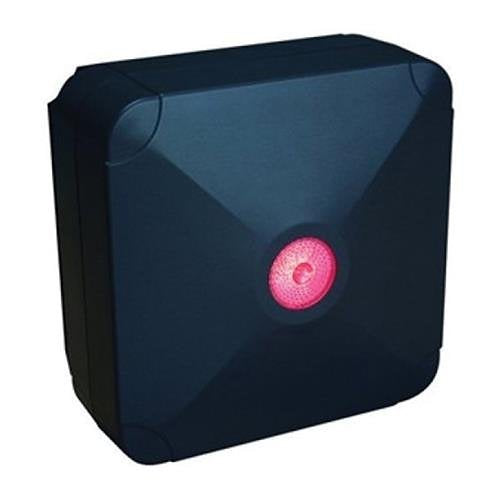

Paxton Access 313-110 long range reader, Black
About this product
Paxton Access 313-110 is a long range reader.
About – The long range reader has been designed specifically for car park access points. Its long read range of up to 5 metres means that a hand-free token can be read from within a vehicle. The built-in hands-free interface removes the need to lay ground loops.
The long range reader will accommodate vehicles of different sizes. Only one reader needs to be installed at each access point. The long range reader also works as a close proximity reader so that users without hands-free tokens can use it.Installation – Fix the mounting plate to the post.
The cables for power and data are fed through the mounting plate and into the rear of the reader via two compression glands. The reader is wired as shown on the control unit label. In addition the reader is wired to a power supply.
Readers should be mounted so that their active fields do not overlap.Operation – A hands-free token is read when it is within range of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate.
If access is granted the green LED flashes. If access is denied the red LED flashes.
Key features
- Use with Switch2 or Net2
- Integral hands-free interface
- Read range max 5m with hands-free tokens
- Bright LED display is visible even in sunlight
- Robust casing
- Easy mounting
If you are matching this to an existing installation, work from the 313-110 part number rather than the description.
Specifications
General information
Miscellaneous
Physical characteristics
Power description
Product information
Technical information
Attributes
Specifications
| Brand Name | Paxton Access |
|---|---|
| Manufacturer Part Number | 313-110 |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|
Miscellaneous
| Package Contents | Connector - 2 way plug UL Plastic - cable clamp Plastic - long range reader base Plastic - long range reader mounting plate Fasteners - 3 x 8mm, small pozi pan PV self tapping zinc , Fasteners - grommet seal, 55 shore silicone 6.5mm I/D Fitting kit - Long range reader No6 x 1/2 pan plastite Packaging - box OD 220x220x140mm LR reader (lr1) Packaging - long range lens protector, bla, Label - Net2Air hands free interface wiring label Long range reader PCB Label Label - product serial number label 27x10mm Label - Tech support international Label - Void if seal is broken, 80x30mm Sales code label, 27x20mm, Paxton, EU, CE, Unharmonised 2 core cable 0.75mm2, 5m 10 core cable Beldon 9540 5m Net2Air hands free interface PCB only Long range reader front assembly |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 135.00mm |
| Height | 220.00mm |
| Width | 220.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Identification Method | Contactless Card (RFID/Proximity) |
| Maximum Operating Range | 100.00m |
| Number of Doors | 1 |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | Connector - 2 way plug UL Plastic - cable clamp Plastic - long range reader base Plastic - long range reader mounting plate Fasteners - 3 x 8mm, small pozi pan PV self tapping zinc , Fasteners - grommet seal, 55 shore silicone 6.5mm I/D Fitting kit - Long range reader No6 x 1/2 pan plastite Packaging - box OD 220x220x140mm LR reader (lr1) Packaging - long range lens protector, bla, Label - Net2Air hands free interface wiring label Long range reader PCB Label Label - product serial number label 27x10mm Label - Tech support international Label - Void if seal is broken, 80x30mm Sales code label, 27x20mm, Paxton, EU, CE, Unharmonised 2 core cable 0.75mm2, 5m 10 core cable Beldon 9540 5m Net2Air hands free interface PCB only Long range reader front assembly |
