Axis Communications 5900-271 outdoor camera housing, White

Free Delivery
£ 237 08
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

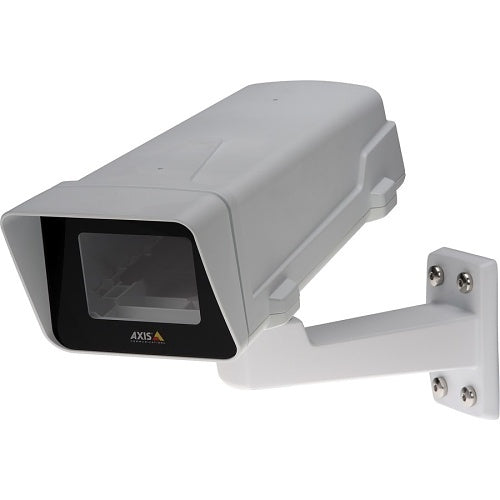

Axis Communications 5900-271 is an outdoor camera housing from the T93F range.

AXIS T93F10 Outdoor Housing supports IP66 and NEMA 4X ratings against the ingress of dust and water, and IK10 rating for protection against impact and vandal acts. All cables are protected inside the wall mount to enhance vandal protection and remove the risk of solar degradation. A slot is dedicated for an optional intrusion alarm switch.

It comes with a wall mount and an integrated sunshield.AXIS T93F10 Outdoor Housing can power the camera and its heater and has a temperature range from -40 °C to 60 °C (-40 °F to 140 °F) for the housing itself. The temperature range in running operation depends on the camera model. For more information please check the datasheet.The housing can power the camera at 12 V DC.

AXIS T93F10 is suitable when AC/DC power is a requirement. The outdoor housing can be powered with 20-24 V AC or 12-28 V DC and no midspan is required. As optional accessory, AXIS Corridor Format Bracket B can be purchased if the fixed box camera needs to be installed in a corridor format, but keeping the housing straight.

The corridor format installation is particularly suitable for surveillance of narrow alleys or perimeters. For a list of cameras that can be installed using AXIS Corridor Format Bracket B, see the product page of the bracket.

Key features

  • AC or DC power input
  • 12V DC power output
  • Weatherproof and vandal-proof
  • Suitable to fit large CS-mount lenses
  • Polymer casing

If you are matching this to an existing installation, work from the 5900-271 part number rather than the description.

£ 237 08
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£237.08 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
5900-271
Product Series
T93F
Product Type
Housings
Certifications
CE marking
Yes
Miscellaneous
Compatibility
AXIS Surveillance Cameras: P13 Series Q16 Series
Indoor or outdoor use
Outdoor
Package Contents
T93F10 Outdoor Housing Internal Power Cable 2 Pin Plug Connector for AC/DC Power Cable
Physical characteristics
Colour
White
Material
Plastic
Weight
1.20kg
Power description
Input Voltage
24V AC, 28V DC
Product information
Mount Type
Wall Mount
Attributes
Compatibility
AXIS Surveillance Cameras: P13 Series Q16 Series
Input Voltage
24V AC, 28V DC
Package Contents
T93F10 Outdoor Housing Internal Power Cable 2 Pin Plug Connector for AC/DC Power Cable
Weight
1.20kg

Specifications

Brand Name Axis Communications
Manufacturer Part Number 5900-271
Product Series T93F
Product Type Housings

Certifications

CE marking Yes

Miscellaneous

Compatibility AXIS Surveillance Cameras: P13 Series Q16 Series
Indoor or outdoor use Outdoor
Package Contents T93F10 Outdoor Housing Internal Power Cable 2 Pin Plug Connector for AC/DC Power Cable

Physical characteristics

Colour White
Material Plastic
Weight 1.20kg

Power description

Input Voltage 24V AC, 28V DC

Product information

Mount Type Wall Mount

Attributes

Compatibility AXIS Surveillance Cameras: P13 Series Q16 Series
Input Voltage 24V AC, 28V DC
Package Contents T93F10 Outdoor Housing Internal Power Cable 2 Pin Plug Connector for AC/DC Power Cable
Weight 1.20kg

Axis Communications 5900-271 outdoor camera housing

Axis Communications 5900-271 outdoor camera housing, White

Who this is for

For the installer — this is the outdoor camera housing supplied under Axis Communications part number 5900-271. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an outdoor camera housing made by Axis Communications. The part number 5900-271 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this outdoor camera housing is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact outdoor camera housing I have been quoted? Check the manufacturer part number 5900-271 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 5900-271 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Axis Communications 5900-271 outdoor camera housing
Axis Communications

Axis Communications 5900-271 outdoor camera housing, White

£237.08

Please note: this is a non-returnable item (excluding faulty goods)

Axis Communications 5900-271 is an outdoor camera housing from the T93F range.

AXIS T93F10 Outdoor Housing supports IP66 and NEMA 4X ratings against the ingress of dust and water, and IK10 rating for protection against impact and vandal acts. All cables are protected inside the wall mount to enhance vandal protection and remove the risk of solar degradation. A slot is dedicated for an optional intrusion alarm switch.

It comes with a wall mount and an integrated sunshield.AXIS T93F10 Outdoor Housing can power the camera and its heater and has a temperature range from -40 °C to 60 °C (-40 °F to 140 °F) for the housing itself. The temperature range in running operation depends on the camera model. For more information please check the datasheet.The housing can power the camera at 12 V DC.

AXIS T93F10 is suitable when AC/DC power is a requirement. The outdoor housing can be powered with 20-24 V AC or 12-28 V DC and no midspan is required. As optional accessory, AXIS Corridor Format Bracket B can be purchased if the fixed box camera needs to be installed in a corridor format, but keeping the housing straight.

The corridor format installation is particularly suitable for surveillance of narrow alleys or perimeters. For a list of cameras that can be installed using AXIS Corridor Format Bracket B, see the product page of the bracket.

Key features

If you are matching this to an existing installation, work from the 5900-271 part number rather than the description.
