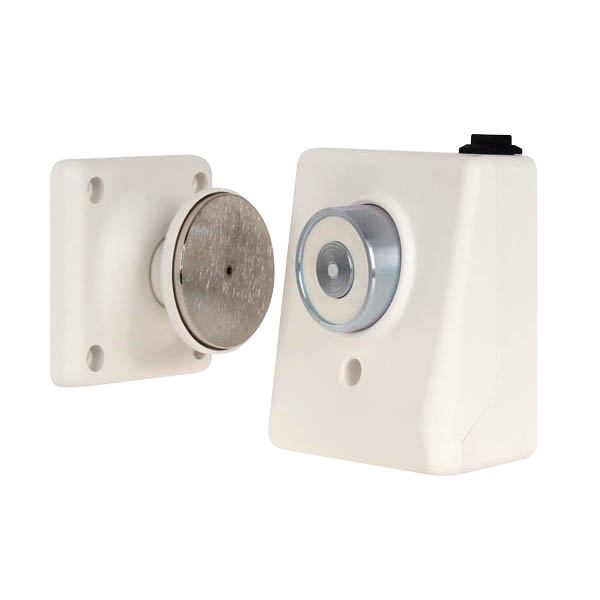

ESP DR916-240 240V AC Door Holder
£
36
22
(Incl. VAT)
3 Years Warranty
240V AC Door Holder
About this product
About this product
The ESP DR916-240, from ESP's Fire Protection range, is a 240V AC door holder with a maximum holding force of 200 N and zero residual force. Its housing is fire resistant ABS, and the door retainer measures 95 x 87 x 46 mm.
Key features
- Supply voltage 240 V AC; maximum current consumption 12mA
- Maximum holding force 200 N
- Zero residual force
- Door retainer dimensions 95 x 87 x 46 mm
- Housing: fire resistant ABS
- Maximum cable size 2.5 mm²
- Ingress protection IP51
- Operating temperature 0 to +40 °C
Frequently asked questions
What supply does it need?
240 V AC, with a maximum current consumption of 12mA.
What is its holding force?
A maximum holding force of 200 N.
Which accessories are there for it?
The DR916-FMB floor mounting bracket and the DR916-KP spare keeper plate.
What is its ingress protection rating?
IP51.
What is its operating temperature range?
0 to +40 °C.
-
Download
- DR916-240 Tech Sheet
£
36
22
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
95 x 87 x 46 (Door Retainer)
Materials
Housing: Fire Resistant ABS
Keeper Plate Dimensions (mm)
70 x 70 x 45
Maximum Holding Force (N)
200
Weight (Kg)
0.36
Warranty (Years)
3
Supply Voltage (V AC)
240
Maximum Cable Size (mm²)
2.5
Maximum Current Consumption
12mA
Operating Temperature (°C)
0 to +40
Ingress Protection
IP51
Accessories
DR916-FMB: Floor mounting Bracket, DR916-KP: Spare Keeper Plate
Features
Zero residual force
Dimensions
Dimensions (mm)
95 x 87 x 46 (Door Retainer)
Specifications
| Dimensions (mm) | 95 x 87 x 46 (Door Retainer) |
|---|---|
| Materials | Housing: Fire Resistant ABS |
| Keeper Plate Dimensions (mm) | 70 x 70 x 45 |
| Maximum Holding Force (N) | 200 |
| Weight (Kg) | 0.36 |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 240 |
| Maximum Cable Size (mm²) | 2.5 |
| Maximum Current Consumption | 12mA |
| Operating Temperature (°C) | 0 to +40 |
| Ingress Protection | IP51 |
| Accessories | DR916-FMB: Floor mounting Bracket, DR916-KP: Spare Keeper Plate |
| Features | Zero residual force |
Dimensions
| Dimensions (mm) | 95 x 87 x 46 (Door Retainer) |
|---|
240V AC Door Holder features
ESP DR916-240 240V AC Door Holder
