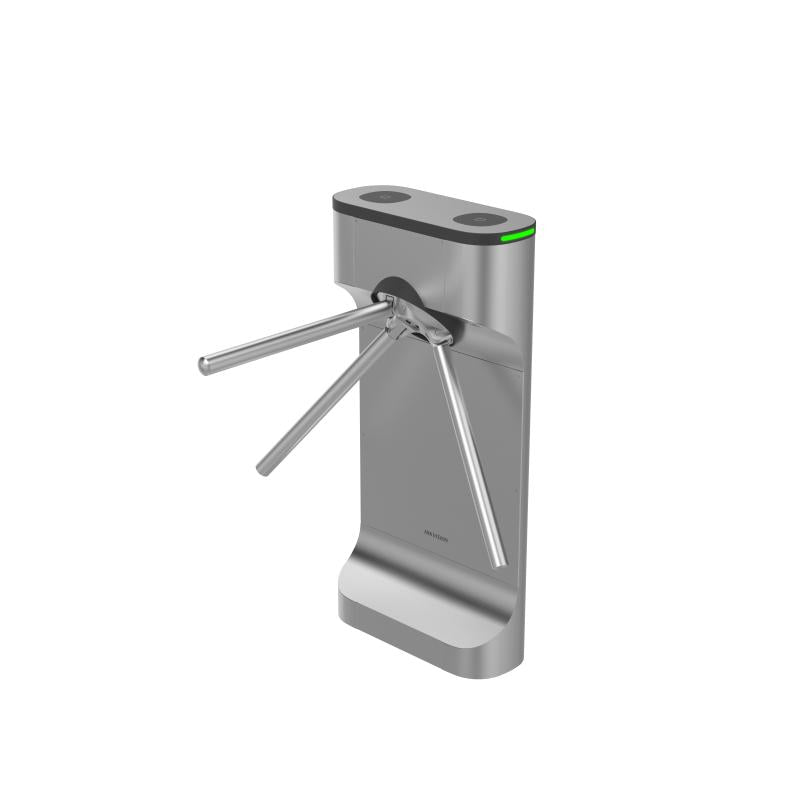

Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868 Pro Tripod Turnstile, Bidirectional, 550 mm Lane
About this product
The Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868 is a Pro Tripod Turnstile with a bidirectional (entering/exiting) lane, for indoor access control. It comes with an access controller supplied, handles 30 to 60 persons per minute depending on the passing rate and passing method, and drops its barrier automatically for emergency evacuation when the fire alarm is triggered.
Key features
- Bidirectional (entering/exiting) lane, 550 mm (21.65") lane width
- Fire alarm passing: the barrier drops automatically for emergency evacuation when the fire alarm is triggered
- Access controller supplied, with card capacity of 500,000 and event capacity of 500,000
- Card authentication with EM card or M1 card (the card type follows the product model name)
- Throughput of 30 to 60 persons per minute, affected by passing rate and passing method
- Speaker function with a self-defined voice file in MP3 format
- SUS304 stainless steel 1.2 mm pedestal; MCBF ≥ 3 million times
Frequently asked questions
How many people per minute can pass through the DS-K3G411CX?
Throughput is 30 to 60 persons per minute. The actual throughput is affected by the person passing rate and passing method.
What happens to the turnstile in a fire alarm?
When the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation. The turnstile has 1 fire alarm input.
Which access cards does it read?
It authenticates EM card or M1 card; the actual card type follows the product model name. The supplied access controller has a card capacity of 500,000.
Can it be installed outdoors?
The application environment is indoor. Working temperature is -20 °C to 65 °C and working humidity 0% to 95% (no condensing).
What power supply does it need?
Power supply is 100 to 240 VAC~, 50/60 Hz, 1A-0.5A. Power consumption is Standby: 20 W, Working: 35 W and Peak: 45 W.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K3G411CX-R/M-Dm55(O-STD)/868 |
| Manufacturer Part Number (MPN) | DS-K3G411CX-R/M-Dm55(O-STD)/868 |
| Product Type | Tripod Turnstile |
| Lane | Bidirectional (entering/exiting) |
| MCBF | ≥ 3 million times |
| Wired Network | 10/100 Mbps self-adaptive Ethernet |
| Interfaces | Network Interface 1, Lock Control 2, Exit Button 2, Alarm Output 2, RS-485 4, RS-232 2, Wiegand 2, Fire Alarm Input 1, Case Input 2 |
| Access Controller | Supplied |
| Card Capacity | 500,000 |
| Event Capacity | 500,000 |
| Card | EM card or M1 card (actual corresponding card type refer to product model names) |
| Configuration | Via PC Web, Via Mobile Web |
| Audio Prompt | Support |
| Communication Protocol | ISAPI |
| Throughput | 30 to 60 persons per minute (actual throughput is affected by the person passing rate and passing method) |
| Lane Width | 550 mm (21.65") |
| Barrier Material | 1.2 mm stainless pipe |
| Pedestal Material | SUS304 stainless steel 1.2 mm |
| Power Consumption | Standby: 20 W, Working: 35 W, Peak: 45 W |
| Power Supply | 100 to 240 VAC~, 50/60 Hz, 1A-0.5A |
| Working Temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working Humidity | 0% to 95% (No condensing) |
| Application Environment | Indoor |
| Dimensions (without package) | 502 mm × 202 mm × 1010 mm |
| Weight | Net: 26.65 kg (58.75 lb), Gross: 32.75 kg (72.2 lb) |
| Wall Distance | 20 mm |
| Movement Protrusion Width | 29 mm |
| Approval | CE/CB/RoHS/REACH/WEEE |
