24W Solar Panel with 75Wh Battery, Dual USB Outputs, IP65, CS-PBC24-R100-20AH

Introduction: A compact solar solution for continuous outdoor camera power

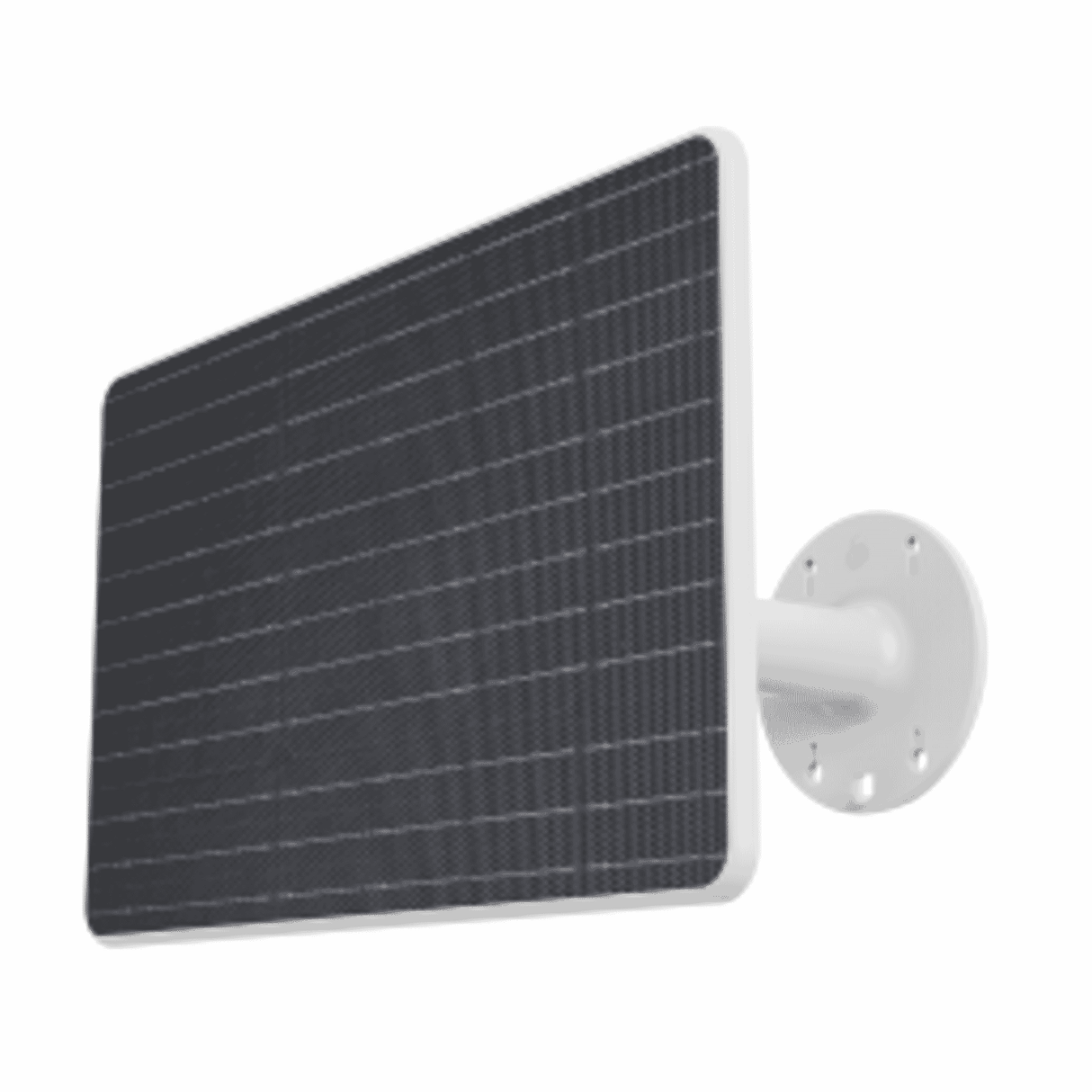

The EZVIZ 24W Solar Panel with 75Wh Battery (model CS‑PBC24‑R100‑20AH) is a purpose‑built power accessory designed to keep outdoor EZVIZ battery cameras running longer and more reliably. Combining a 24 W monocrystalline PV array with an integrated 75 Wh (14.6 V / ~5000 mAh) rechargeable battery and dual USB outputs, the unit provides both live solar charging and stored backup energy in a weatherproof, easy‑to‑mount package. With IP65 protection, onboard status indication and simple cabling for two cameras, it aims to solve a common problem for outdoor camera owners: providing continuous off‑grid power without complicated wiring or frequent battery swaps.

Key features at a glance

• 24 W monocrystalline solar paneldelivering up to 24 W of PV power with an approximate 23% conversion efficiency.
• Built‑in 75 Wh battery(14.6 V, ~5000 mAh) for energy storage and overnight/low‑sun backup.
• Dual USB‑A outputsthat allow two battery cameras to be powered simultaneously; 1 × Type‑C input for recharging.
• Weatherproof constructionwith IP65 rating and stainless‑steel fasteners for permanent outdoor installation.
• Complete mounting kitincluding adjustable bracket, long cables, adapters and fixings for wall or pole installations.
• App integration and status LEDfor simple binding/monitoring with compatible EZVIZ cameras.

Detailed specifications and practical benefits

Understanding the numbers behind a product helps evaluate how it will perform in real‑world conditions. The CS‑PBC24‑R100‑20AH’s technical specifications are tailored for camera accessories rather than heavy‑duty off‑grid power systems, which is exactly where this device is most useful.

• Model: CS‑PBC24‑R100‑20AH
• Max Power: 24 W (monocrystalline)
• Power Voltage: 15.3 V (‑5%, +10%)
• Open Circuit Voltage: 18.4 V (‑5%, +10%)
• Short Circuit Current: 1.65 A (‑5%, +10%)
• Max Power Current: 1.57 A (‑5%, +10%)
• Conversion Efficiency: ≈ 23%
• Battery: 75 Wh (14.6 V, ~5000 mAh) built‑in, non‑removable
• Interface: 1 × Type‑C input, 2 × USB‑A outputs
• Charging Input Requirement: DC 5 V / 2 A (adapter sold separately)
• IP Rating: IP65 (weatherproof)
• Operating Temperature: −20°C to 60°C (recommended charging range: 0°C to 45°C)
• Product Dimensions: 220.6 × 300 × 440 mm; Net Weight: 2.1 kg
• Included Accessories: adjustable bracket, 3 m cables, Type‑C→micro‑USB adapters (×2), screws, drill template, quick start guide

These specifications translate into several practical benefits. The 24 W panel and ~23% conversion efficiency make efficient use of available sunlight, while the onboard 75 Wh battery stores excess energy to cover periods of low light or nighttime operation. Dual USB outputs mean two cameras can be supported simultaneously without additional splitters, and the Type‑C input allows convenient recharging of the internal battery when needed.

Use cases and scenarios where this product excels

The combination of a compact PV panel, integrated battery and camera‑friendly outputs makes the EZVIZ unit particularly well suited to a variety of outdoor surveillance scenarios:

• Remote or off‑grid camera installations:When mains power is unavailable or costly to run, this solar panel keeps cameras online and reduces the need for frequent battery swaps.
• Holiday homes and second properties:Maintain surveillance while the property is unoccupied—solar harvesting plus the 75 Wh buffer helps ensure persistent coverage.
• Outbuildings, sheds and farm sites:Areas where running AC power is impractical benefit from a tidy solar solution that mounts to walls or poles and requires minimal maintenance.
• Temporary or seasonal deployments:For construction sites, events or seasonal monitoring, the ready‑to‑mount kit and dual outputs simplify setup and teardown.
• Supplementing mains supply:In locations where mains exists but is unreliable, the integrated battery can provide short‑duration backup during outages or brownouts.

In each of these use cases the IP65 rating and stainless‑steel fasteners increase confidence for permanent outdoor mounting; the included long cables and adapters make it easier to position the solar panel for ideal sun exposure while keeping cameras in their preferred surveillance locations.

Comparisons with similar products on the market

Not all solar camera accessories are created equal. When comparing the EZVIZ 24W panel to other offerings, consider four areas: wattage, built‑in battery capacity, outputs/interfaces and ruggedness.

• Wattage and efficiency:Many competing camera solar panels fall in the 5–30 W range. The 24 W rating positions the EZVIZ unit toward the higher end of camera‑specific panels, and ~23% efficiency is competitive for monocrystalline cells of this size.
• Integrated battery:Some panels rely solely on live solar output or require an external power bank; the built‑in 75 Wh battery here is a clear advantage for providing overnight or cloudy‑day buffering without extra hardware.
• Outputs and convenience:Dual USB‑A outputs that can power two cameras simultaneously are a practical differentiator—many rivals offer a single output or require splitters. The Type‑C input is also modern and convenient, though note that a 5 V / 2 A adapter is sold separately.
• Durability:An IP65 rating and stainless‑steel fasteners make the EZVIZ unit robust for outdoor use; some low‑cost panels sacrifice corrosion resistance or come with shorter, less flexible mounting kits.

Where the EZVIZ product may not suit everyone: power users who need extended multi‑device support or to run larger loads will prefer higher‑wattage panels (50 W–100 W) and separate charge controllers or battery systems. Likewise, those seeking removable or hot‑swappable batteries might opt for modular power stations instead of a sealed, non‑removable battery solution.

Installation tips, safety and compliance notes

For best results mount the panel facing south in the northern hemisphere (north in the southern hemisphere) with minimal shade throughout the day. The recommended charging temperature range is 0°C to 45°C; while the device can operate across −20°C to 60°C, charging efficiency and battery longevity are best within the recommended range. Use the provided adjustable bracket and stainless‑steel fixings, and follow the EZVIZ quick start guide during installation. For any local electrical or mounting codes, consult a qualified installer. Check packaging or the manufacturer listing for region‑specific certifications (CE / UKCA) before installation.

Conclusion: Why the EZVIZ 24W Solar Panel with 75Wh Battery is a great choice

The CS‑PBC24‑R100‑20AH balances performance, convenience and ruggedness in a single, camera‑focused package. For homeowners and site operators who need a low‑maintenance, weatherproof power solution to keep outdoor EZVIZ cameras online, its 24 W panel, integrated 75 Wh battery and dual USB outputs offer a practical and compact alternative to running mains or frequently changing batteries. With sensible specifications, an included mounting kit and a design built around common camera requirements, this unit is a strong pick for off‑grid monitoring, remote properties and supplemental backup power.
