EZVIZ CS-PSP100-R100-DS100W PSP100 Portable Solar Panel, 100W, IP67
About this product
The EZVIZ PSP100 (CS-PSP100-R100-DS100W) is a 100W portable solar panel designed to charge EZVIZ Power Stations, with the PS300 and PS600 listed as compatible models. It folds up with a built-in handle for carrying and has a built-in kickstand that props it at 25 to 60 degrees to make the most of the sunlight.
Key features
- Max. power 100W (-5% ,+10%)
- Monocrystalline solar cells with a conversion rate of up to 23%
- ETFE-laminated solar cells, IP67-rated against rain and snow
- Folding design with a built-in handle
- Built-in kickstand adjusts from 25 to 60 degrees
- MC4 connector on a 16 AWG, 1000 ± 10 mm cable
- Compatible with EZVIZ PS300 and PS600 Power Stations
Frequently asked questions
What does the EZVIZ PSP100 charge?
It is designed to charge EZVIZ Power Stations; the compatible models are the PS300 and PS600.
How long does it take to charge a power station?
EZVIZ estimates an average charging time of 8-16 hours for a PS300 or PS600 Power Station with 1 × PSP100 Solar Panel. Actual charging efficiency may be slightly higher or lower depending on sunlight intensity and other environmental factors.
Can the PSP100 be left out in the rain?
The panel is IP67-rated against rain and snow and is built with ETFE-laminated solar cells.
What connector does it use?
An MC4 connector on a 16 AWG, 1000 ± 10 mm cable.
How big is it when folded?

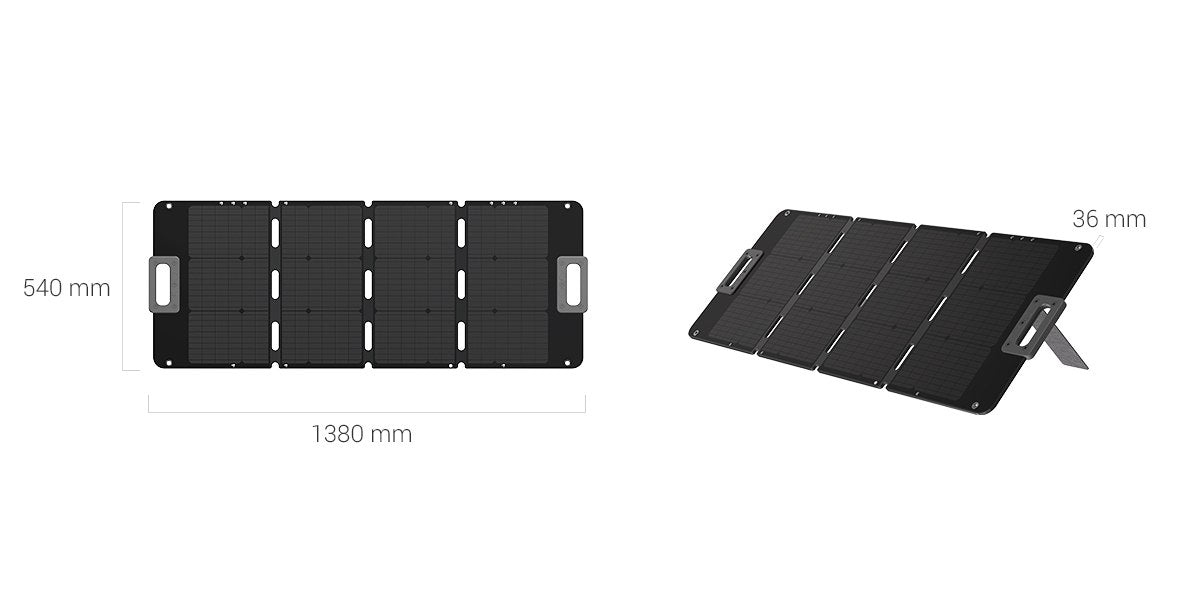

Folded, it measures 540 × 400 × 64 mm; unfolded, 1380 × 540 × 36 mm. Net weight without bracket is 4.78 kg.
What is in the box?
The PSP100 Portable Solar Panel, a Quick Start Guide and Regulatory Information.
Specifications
Specifications
| Brand | EZVIZ |
|---|---|
| Model | CS-PSP100-R100-DS100W |
| Manufacturer Part Number (MPN) | CS-PSP100-R100-DS100W |
| Open Circuit Voltage | 23.8V (-5% ,+10%) |
| Short Circuit Current | 5.33A (-5% ,+10%) |
| Max. Voltage | 19.8V (-5% ,+10%) |
| Max. Current | 5.05A (-5% ,+10%) |
| Max. Power | 100W (-5% ,+10%) |
| Efficiency | 23% |
| Solar cell type | Monocrystalline solar cells |
| Operation Temperature | -20°C ~60°C (-4°F~140°F) |
| Humidity | 90% or less (non-condensing) |
| IP Grade | IP67 |
| Connector | MC4 |
| Cable | 16 AWG, 1000 ± 10 mm |
| Product Dimensions (Folded) | 540 × 400 × 64 mm (21.26 × 15.55 × 2.56 inch) |
| Product Dimensions (Unfolded) | 1380 × 540 × 36 mm (54.33 × 21.26 × 1.42 inch) |
| Packaging Dimensions | 600 × 445 × 105 mm (23.63 × 17.52 × 4.13 inch) |
| Weight (With Package) | 6.08 kg (214.5 oz) |
| Net Weight (Without Bracket) | 4.78 kg (168.6 oz) |
| Kickstand angle | 25 to 60 degrees |
| Compatible models | PS300, PS600 |
| In the box | PSP100 Portable Solar Panel, Quick Start Guide, Regulatory Information |
| Certifications | CE / UKCA / RoHS / WEEE / REACH |
