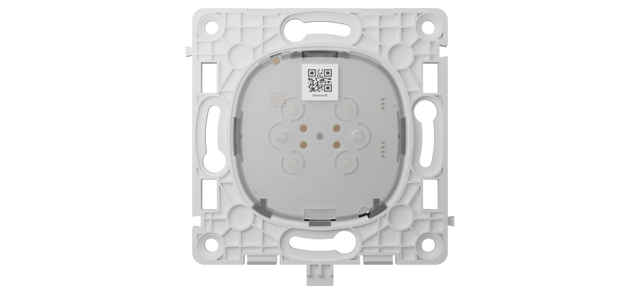

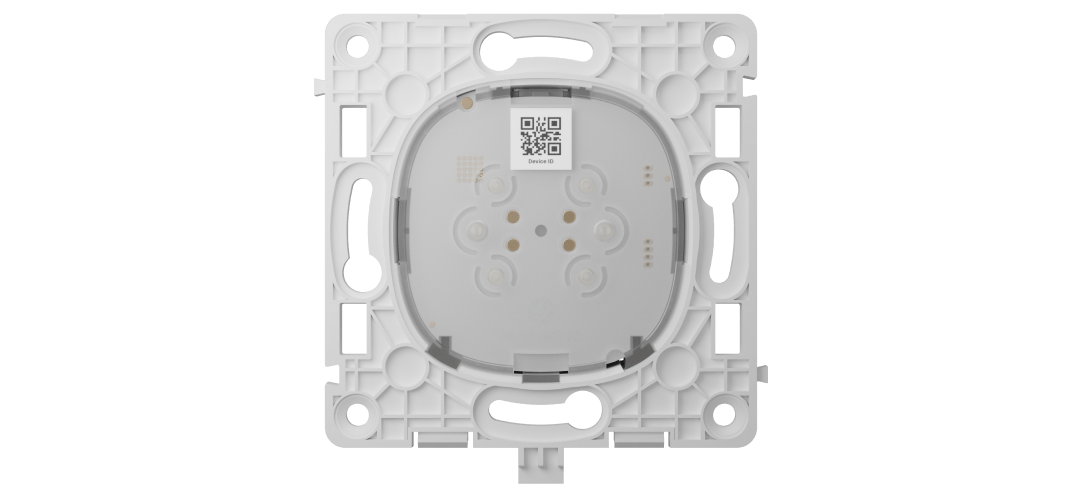

Ajax 63115.142.NC LightCore (2-gang) Jeweller Relay, Max. 300 W per Segment
About this product
The Ajax LightCore (2-gang) Jeweller, code 63115.142.NC, is the relay for a 2-gang switch: the relay component of the LightSwitch (2-gang) Jeweller smart touch light switch for Ajax security systems. This is the relay only, with no touch-sensitive panel or frame included: LightSwitch (2-gang) Jeweller is a prefabricated smart switch and all parts are purchased separately.
Key features
- Relay for a 2-gang switch
- Maximum power 300 W per segment (600 W in total)
- Switched device power from 5 to 300 W per segment
- No neutral wire needed: only a live wire
- Jeweller radio range up to 1,100 m to a hub or range extender in an open space
- Current protection: more than 2.6 A
- Temperature protection: more than +60 °C
- European type (55) switch form factor
Frequently asked questions
Does the LightCore (2-gang) Jeweller include a touch panel or frame?
No. It is the relay only. LightSwitch (2-gang) Jeweller is a prefabricated smart switch and all parts are purchased separately; for a single switch, the SoloButton (2-gang) panel provides the front panel and the frame as one component.
Does it need a neutral wire?
No. LightSwitch only needs a live wire to operate.
What lighting load can it switch?
Switched devices from 5 to 300 W per segment, with a maximum power of 300 W per segment (600 W in total).
How far can it be from the Ajax hub?
The radio communication range is up to 1,100 m between the device and a hub or range extender in an open space.
Can it be installed outdoors?
No. The device is designed for indoor use only, with protection class IP20, and a professional electrician should install it.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 63115.142.NC |
| Manufacturer Part Number (MPN) | 63115.142.NC |
| Function | Relay for a 2-gang switch |
| Power supply voltage | 230 V~, 50/60 Hz |
| Maximum power | 300 W per segment (600 W in total) |
| Power of switched device | from 5 to 300 W per segment |
| Neutral wire | LightSwitch only needs a live wire to operate. |
| Average consumption | up to 200 mW |
| Current protection | more than 2.6 A |
| Temperature protection | more than +60 °C |
| Radio communication range | up to 1,100 m (between the device and a hub or range extender in an open space) |
| Operating temperature range | from –10 °C to +40 °C |
| Operating humidity | up to 75% with no condensation |
| Protection class | IP20 |
| Form factor of the switch | European type (55) |
| Dimensions (LightCore (2-gang) Jeweller) | 76.3 × 72.3 × 29.2 mm |
| Weight (LightCore (2-gang) Jeweller) | 54 g |
