TOA PA Equipment & Accessories

This page brings together TOA public address equipment for paging, background music and announcements: the A-2060D, A-2120D and A-2240D digital mixer-amplifiers, the P-2240 booster and VM-2240 five-zone management amplifier, 100 V line horn, ceiling and column speakers, the IP-A1SC15 PoE horn speaker, desk and remote paging microphones, the MB-25B rack bracket and SP-131 pole brackets. It also has WB-2000-2 Y rechargeable AA cells for TOA 5000-series wireless transmitters and portable receivers.

Choosing TOA PA Equipment & Accessories

TOA PA equipment covers public address mixer-amplifiers, paging microphones and horn, ceiling and column speakers for announcements and background music.

Mixer-amplifiers and boosters

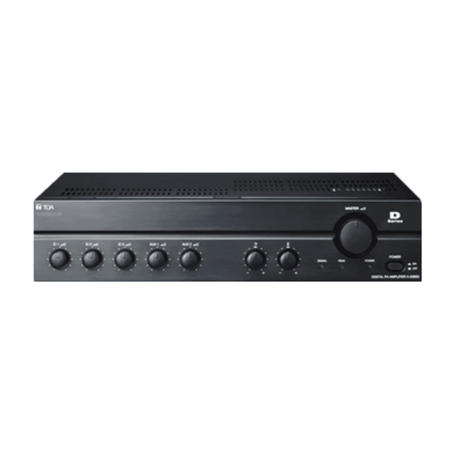

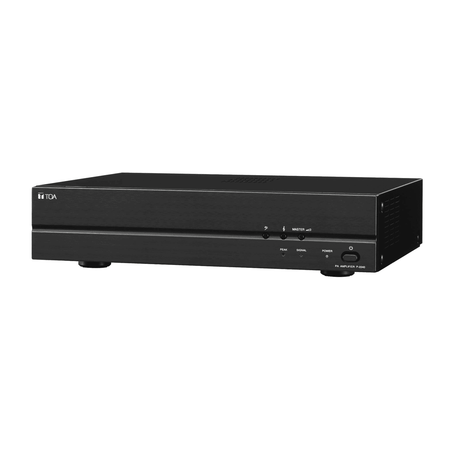

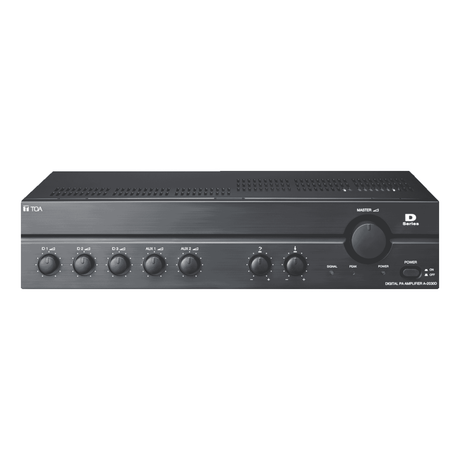

The A-2060D, A-2120D and A-2240D are Class-D digital mixer-amplifiers rated at 60 W, 120 W and 240 W. Each has three balanced microphone inputs, two auxiliary inputs, a 100 V speaker output and bass and treble controls of ±10 dB, with phantom power on MIC 1. The P-2240 is a 240 W 2U booster for A-2000 series mixer-amplifiers that runs from 220–240 V AC or 24–30 V DC for battery backup and has an emergency master-volume bypass. The MB-25B bracket mounts TOA amplifiers in a standard rack.

Zoned systems and paging microphones

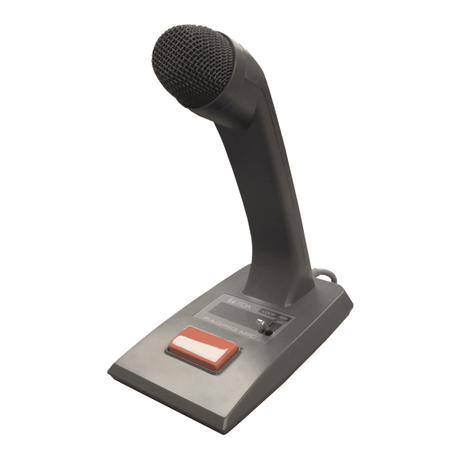

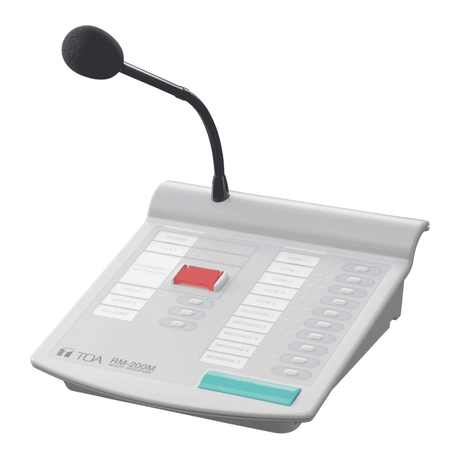

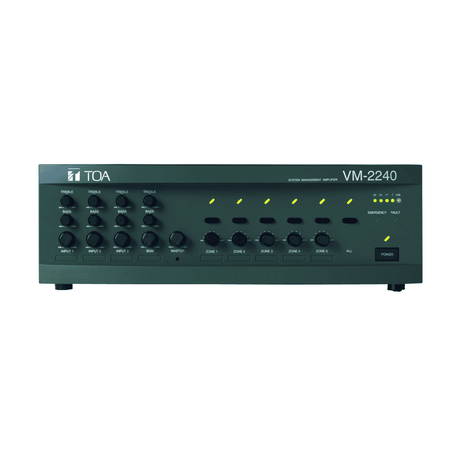

The VM-2240 is a 240 W system management amplifier in an EIA 3U case with five switchable speaker zones, three mic/line inputs and a background music input, and it supports emergency broadcast when fitted with optional modules. The RM-200MS remote paging microphone connects to VM-2000 and VM-3000 management amplifiers over Cat5 STP and runs from 24 V DC, with assignable keys for zone, group or all-call paging. The PM-660D is a dynamic cardioid desk microphone with a locking push-to-talk switch.

Speakers, mounting and batteries

The SC-615M (15 W) and SC-630M (30 W) are IP65 paging horns with aluminium horns and 70/100 V taps. The CS-154 and CS-154BS are 15 W wide-range IP65 horns with about 90° of horizontal coverage, and the CS-154BS is the EN54-24 certified variant for voice alarm. The IP-A1SC15 is a network horn speaker powered by PoE or PoE+ with a 15 W amplifier and SIP support. The PC-1868W-EB is a 6 W flush-mount ceiling speaker with a 12 cm driver and spring-catch fixing, and the TZ-50-EB is a slim 50 W IP55 column speaker with 100 V taps and a 20 Ω option. The SP-131 stainless steel brackets mount horn speakers on a pole, and the WB-2000-2 Y is a pair of AA Ni-MH cells for TOA 5000-series wireless transmitters.

ModelTypeRated power
A-2060DMixer-amplifier60 W
P-2240Booster amplifier240 W
VM-2240Five-zone management amplifier240 W
SC-630MIP65 horn speaker30 W
CS-154BSEN54-24 horn speaker15 W
TZ-50-EBIP55 column speaker50 W
PC-1868W-EBCeiling speaker6 W

Related categories

Browse TOA speakers, the wider amplifiers and mixers range, PA speakers and systems and ceiling speakers.

Frequently asked questions

What is TOA Electronics?

TOA Electronics is part of TOA Corporation, a Japanese manufacturer of public address, paging and commercial sound equipment. Its kit is common in schools, shops, offices, factories, transport hubs and places of worship. The TOA line-up covers mixer-amplifiers, paging microphones, horn and ceiling speakers, and IP audio devices that work over a computer network. The range here includes amplifiers, speakers, microphones and mounting brackets.

How does a TOA PA system work?

A TOA PA system feeds microphones and music sources into an amplifier, which usually drives a chain of speakers on a 100V line around the building. Zoning can send announcements to chosen areas, and a booster amplifier adds power when a system grows. TOA IP devices carry audio over a computer network instead, often powered by PoE. The range here includes mixer-amplifiers, paging microphones and IP audio devices.

What types of TOA microphone are there?

TOA microphones for PA work include desktop paging mics, remote paging stations with assignable keys, headworn mics and wireless beltpack transmitters. A desktop paging mic suits a reception desk or office, while a remote station lets staff call selected zones on a management amplifier. Headworn mics suit fitness classes and presenters. The range here includes an IP remote microphone that connects over a network.

What does a TOA PA amplifier do?

A TOA PA amplifier boosts microphone and music signals so they can drive a line of PA speakers. Mixer-amplifiers combine the mixer and power stage in one box, booster amplifiers add power to an existing system, and management amplifiers can split output across several zones. Match the amplifier's rated power to the total of the speaker tap settings on the line, leaving some headroom.
