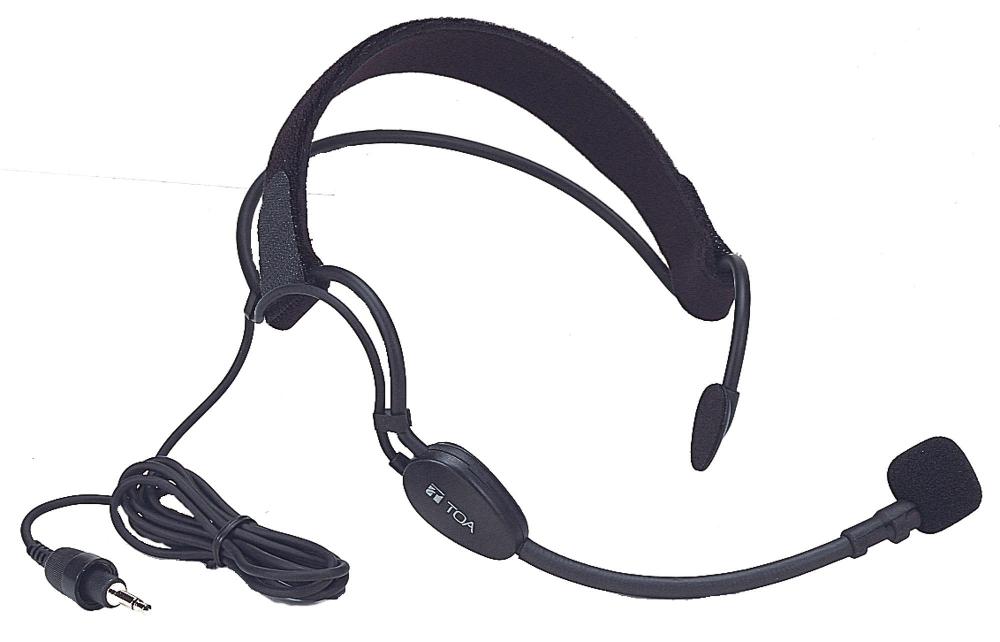

TOA WH-4000A Headworn Microphone, Unidirectional, 3.5mm Mini Plug
About this product
The TOA WH-4000A is a headworn microphone, the sports version of the WH-4000H, suited for use in gyms and aerobics classes. It has a unidirectional electret condenser capsule, an adjustable neckband and protection against the ingress of moisture, and is made to use with the WM-5325 or WM-D5200.
Key features
- Sports version of the WH-4000H headworn microphone
- Adjustable neckband
- Protection against the ingress of moisture
- Unidirectional electret condenser capsule
- Max. SPL: 120 dB
- Frequency response 80 Hz – 15 kHz ±3 dB
- 1.3 m cord with 3.5 mm mini plug
- To use with WM-5325 or WM-D5200
Frequently asked questions
Which units does the WH-4000A work with?
It is made to use with the WM-5325 or WM-D5200, and connects with a 3.5 mm mini plug on a 1.3 m cord.
How is the WH-4000A powered?
Power is supplied from the beltpack unit.
Is it suitable for fitness classes?
Yes. It is the sports version of the WH-4000H, suited for use in gyms and aerobics classes, with an adjustable neckband and protection against the ingress of moisture.
What pick-up pattern does the microphone have?
It uses a unidirectional electret condenser capsule.
What are its frequency response and maximum sound level?
Frequency response is 80 Hz – 15 kHz ±3 dB and max. SPL is 120 dB.
How heavy is the headset?
It weighs 50 g (cable included).
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | WH-4000A |
| Manufacturer Part Number (MPN) | WH-4000A |
| Microphone type | Electret condenser |
| Directivity | Unidirectional |
| Sensitivity | -66 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz) |
| Frequency Response | 80 Hz – 15 kHz ±3 dB |
| Max. input level | 120 dBSPL |
| Power source | supplied from beltpack unit |
| Cord length | 1.3 m |
| Connection | 3.5 mm mini plug |
| Output Terminal | Ø3.5 mm monaural plug |
| Finish | Stainless steel, Synthetic rubber, black |
| Weight | 50 g (cable included) |
| Use with | WM-5325 or WM-D5200 |
TOA WH-4000A Headworn Microphone, Unidirectional, 3.5mm Mini Plug
