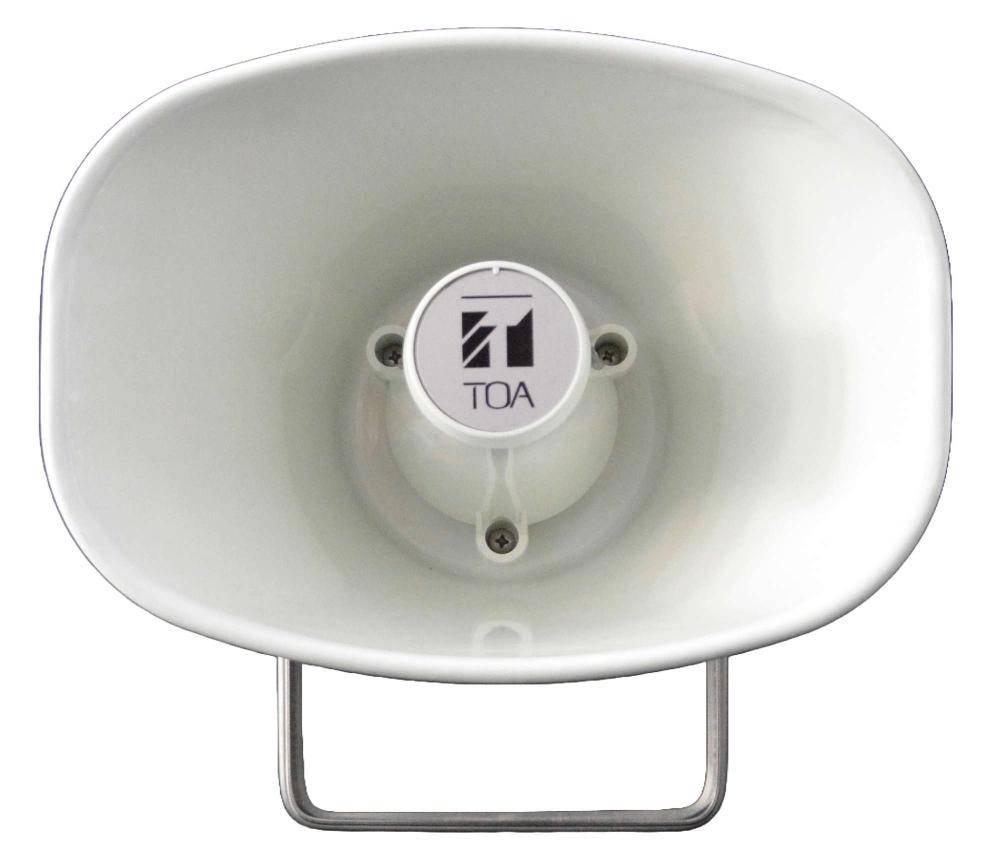

TOA SC-PE615 Active Horn Speaker, IP66
About this product
The TOA SC-PE615 is a compact, highly intelligible active horn speaker with a built-in power amplifier (rated output 10W at PoE+ powered, 7.5 W at DC12V powered, 5W at PoE powered), made for public address announcements and remote paging via network video surveillance applications. Its rugged enclosure is IP66 rated for outdoor environments.
Key features
- Built-in power amplifier: rated output to speaker 7.5 W (at DC12V powered), 10W (at PoE+ powered), 5W (at PoE powered)
- Public address announcements and remote paging via network video surveillance applications
- IP66 rated enclosure for outdoor environments
- Power: PoE (IEEE802.3af Class 3) or PoE+ or DC12V/ DC24V (9V-29V)
- Sensitivity 105 dB (1 W, 1 m) and max. SPL 115 dB (1 m)
- -6dB, 10kΩ electronically-balanced audio input on a removable terminal block (3 pins)
- Low impedance (8Ω) speaker output
- Aluminium, off-white finish
Frequently asked questions
Can the SC-PE615 be used outdoors?
Yes. Its rugged enclosure is IP66 rated for outdoor environments, and it is rated for an operating temperature of -20º ~ +50ºC.
How loud is it?
Sensitivity is 105 dB (1 W, 1 m) and maximum SPL is 115 dB (1 m).
What audio input does it take?
A -6dB, 10kΩ electronically-balanced input on a removable terminal block (3 pins).
How much power does it consume?
35 W or less at rated output and 4 W or less in standby.
What comes in the box?
Removable terminal plugs: one 2-pin, one 4-pin and one 3-pin.
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | SC-PE615 |
| Manufacturer Part Number (MPN) | SC-PE615 |
| Power | PoE (IEEE802.3af Class 3) or PoE+ or DC12V/ DC24V (9V-29V) |
| Power / current consumption | 35 W or less (Rated output); 4 W or less (Standby) |
| Rated output to Speaker | 7.5 W (at DC12V powered); 10W (at PoE+ powered); 5W (at PoE powered) |
| Sensitivity (1 W, 1 m) | 105 dB |
| Max. SPL (1 m) | 115 dB |
| Distortion | 0.5 % or less |
| Audio input | -6dB, 10kΩ electronically-balanced, removeable terminal block (3 pins) |
| Speaker output | Low impedance (8Ω) |
| PoE / PoE+ Interface | RJ45 |
| Indicators | Power indicator LED (Rear side / Bottom side); Audio input indicator LED |
| Dust/Water protection | IP66 |
| Operating temperature | -20º ~ +50ºC |
| Operating humidity | 10%~90%RH (no condensing) |
| Dimensions | 222 x 162 x 281 mm (W x H x D) |
| Finish | Aluminium, off-white |
| Brackets, screws, and bolts | Stainless steel |
| Cable Gland | Nickel plated copper |
| Weight | 1.35 kg |
| Accessories | Removable terminal plug (2 pins) …1pcs; Removable terminal plug (4 pins) …1pcs; Removable terminal plug (3 pins) …1pcs |
| Colour | Off-white |
