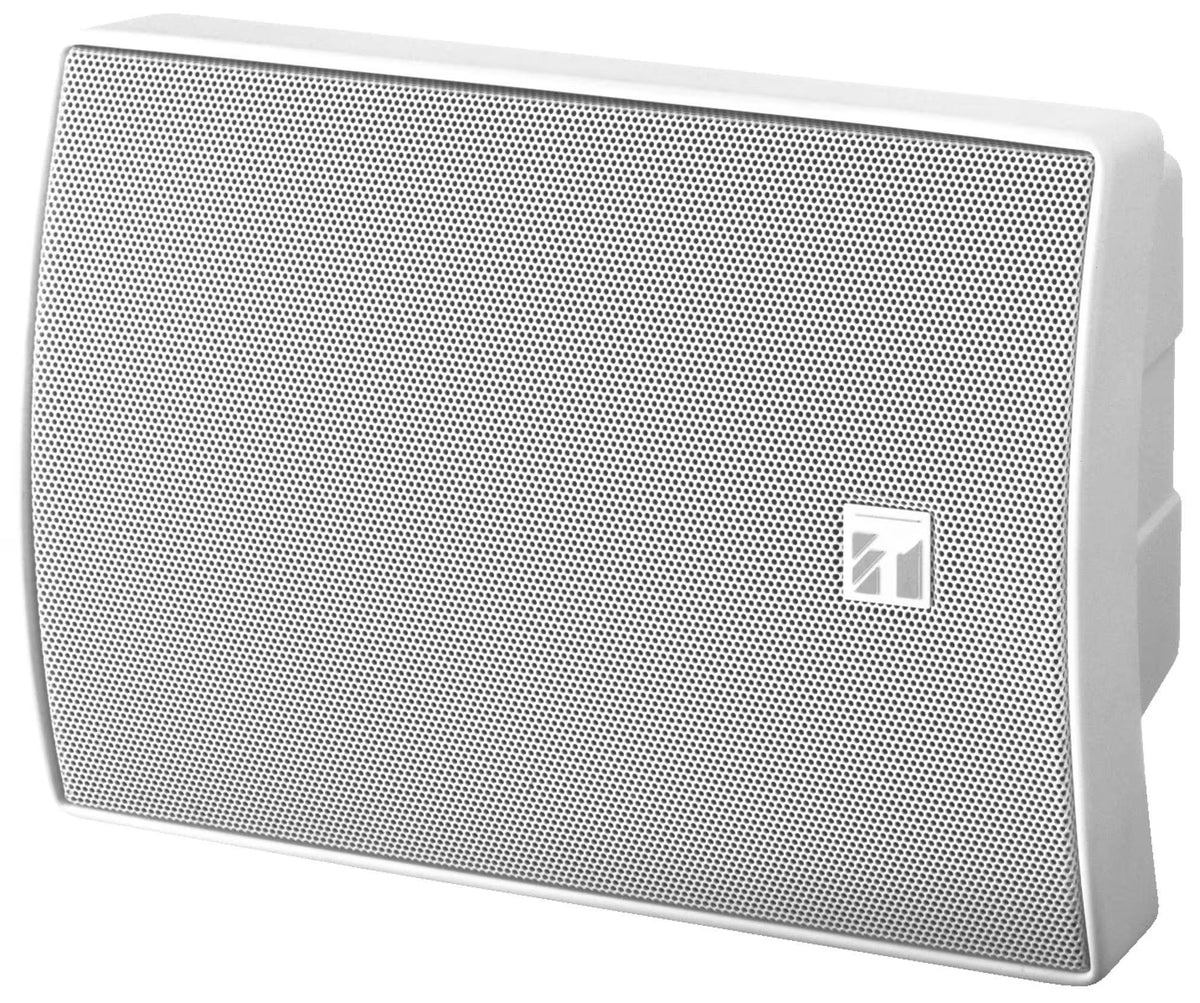

TOA BS-1030W 2-Way Bass Reflex Cabinet Speaker, 30W, 8Ω/100V
About this product
The TOA BS-1030W is a small, 2-way bass-reflex PA box speaker with a wide frequency range for announcements and music playback. Rated at 30 W, it runs at low impedance (8 Ω) or high impedance (100V), selected by a rotary switch, and comes in white with a bracket.
Key features
- 2-way bass-reflex enclosure
- Rated input 30 W
- Low impedance (8 Ω) or high impedance (100V) selectable by rotary switch
- Sound pressure level 90 dB (1 W, 1 m)
- Frequency response 80 Hz - 20 kHz
- 12 cm cone woofer and 2.5 cm dome tweeter
- Splash-proof construction for installation under the eaves, out of direct rain
- Bracket included
Frequently asked questions
Can the TOA BS-1030W be used on a 100 V line?
Yes. Low impedance (8 Ω) or high impedance (100V) is selectable by rotary switch, with 100 V line taps of 30 W, 20 W, 15 W, 10 W and 5 W.
Can the BS-1030W be fitted under the eaves?
Yes. Its splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
Is a bracket included with the BS-1030W?
Yes. It comes with a bracket, 2 bracket mounting screws and 2 bracket mounting washers.
What is the frequency response of the BS-1030W?
80 Hz - 20 kHz, with a sound pressure level of 90 dB (1 W, 1 m).
What optional mounting accessories suit the BS-1030W?
The SP-420 mounting bracket, the WCB-13W and SP-410 applicable brackets and the ST-16A applicable stand.
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | BS-1030W |
| Manufacturer Part Number (MPN) | BS-1030W |
| Enclosure | 2-way bass-reflex type |
| Rated input | 30 W |
| Rated impedance | 8 Ω |
| Rated impedance (100 V line) | 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) |
| Rated impedance (70 V line) | 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
| Sound pressure level | 90 dB (1 W, 1 m) |
| Frequency response | 80 Hz - 20 kHz |
| Speaker component | 12 cm cone-type + dome-type |
| Speaker cable | 2-core cabtyre cord with diameter of 6 mm |
| Finish (enclosure) | ABS resin, white (RAL9010 PURE WHITE), paint |
| Finish (net) | Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating |
| Finish (bracket) | Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating |
| Dimensions | 196 (W) x 290 (H) x 150 (D) mm (unit only) |
| Weight | 2.5 kg (unit only) |
| Included accessories | Bracket (1), bracket mounting screw (2), bracket mounting washer (2) |
| Optional accessories | Mounting bracket: SP-420; applicable bracket: WCB-13W, SP-410; applicable stand: ST-16A |
| Colour | White |
