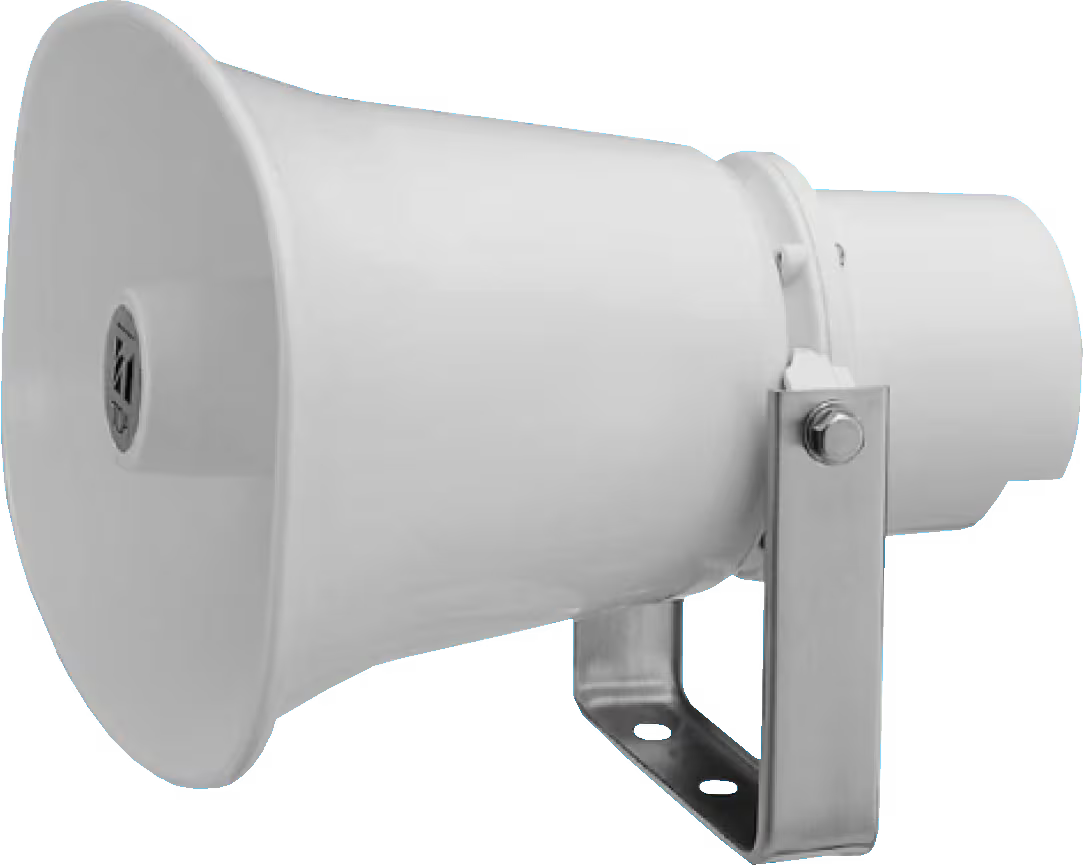

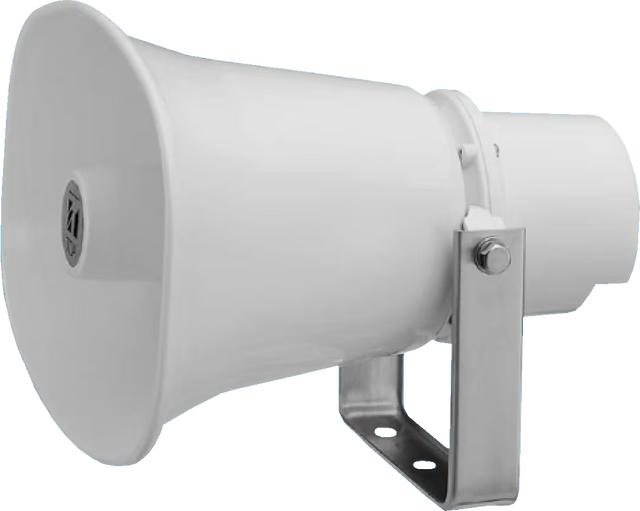

TOA SC-610M Paging Horn Speaker, 10W, 100 V Line
About this product
The TOA SC-610M is a 10W paging horn speaker from the SC Series, the "M"-type model for high-impedance (70V/100V lines) systems. It is designed for both indoor and outdoor applications, is rated IP 65 and produces a sound pressure level of 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level).
Key features
- 10W rated input
- Works on a 100 V line or 70 V line
- Input impedance selector switch (4 steps for 100V line, and 5 steps for 70V line) with an OFF position
- 110 dB sound pressure level (1 W, 1 m at 500 to 2,500 Hz peak level)
- 315 – 12,500 Hz frequency response
- IP 65 rated for indoor and outdoor applications
- Shock-resistant aluminium oval horn with 50-micron thick powder paint coating
- Stainless steel bracket, screws and bolts
Frequently asked questions
Does the SC-610M work on a 100 V line system?
Yes. It is the "M"-type model for high-impedance (70V/100V lines) systems and works on a 100 V line or 70 V line.
What impedance taps does it have?
Rated impedance is 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W), chosen on the input impedance selector switch.
Can it be installed outdoors?
Yes. The SC Series is designed for both indoor and outdoor applications; the SC-610M is rated IP 65 with an operating temperature of -20˚C to +55˚C (must be free from dew condensation).
How loud is it?
Sound pressure level is 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level).
How is it wired?
Polarity is Hot: Black, Com: White, on a polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length).
Is there an alternative bracket?
Yes. The YS-151S swivel bracket can be used instead of the supplied bracket.
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | SC-610M |
| Manufacturer Part Number (MPN) | SC-610M |
| Rated Input | 10W |
| Line Voltage | 100 V line or 70 V line |
| Rated Impedance | 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sound Pressure Level | 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level) |
| Frequency Response | 315 – 12,500 Hz |
| Sensitivity when used as Microphone | -24 dB at 1 kHz |
| IP Code | IP 65 |
| Polarity | Hot: Black, Com: White |
| Operating Temperature | -20˚C to +55˚C (must be free from dew condensation) |
| Horn flare | Aluminum, off-white, powder coating |
| Reflector horn and rear cover | ABS resin, off-white |
| Bracket, screws and bolts | Stainless steel |
| Speaker cable | Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length) |
| Dimensions | 172 (W) x 161 (H) x 188 (D) mm |
| Weight | 1.2 kg |
| Option | Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
| Mounting | Wall & Pole |
| Colour | Off-white |
