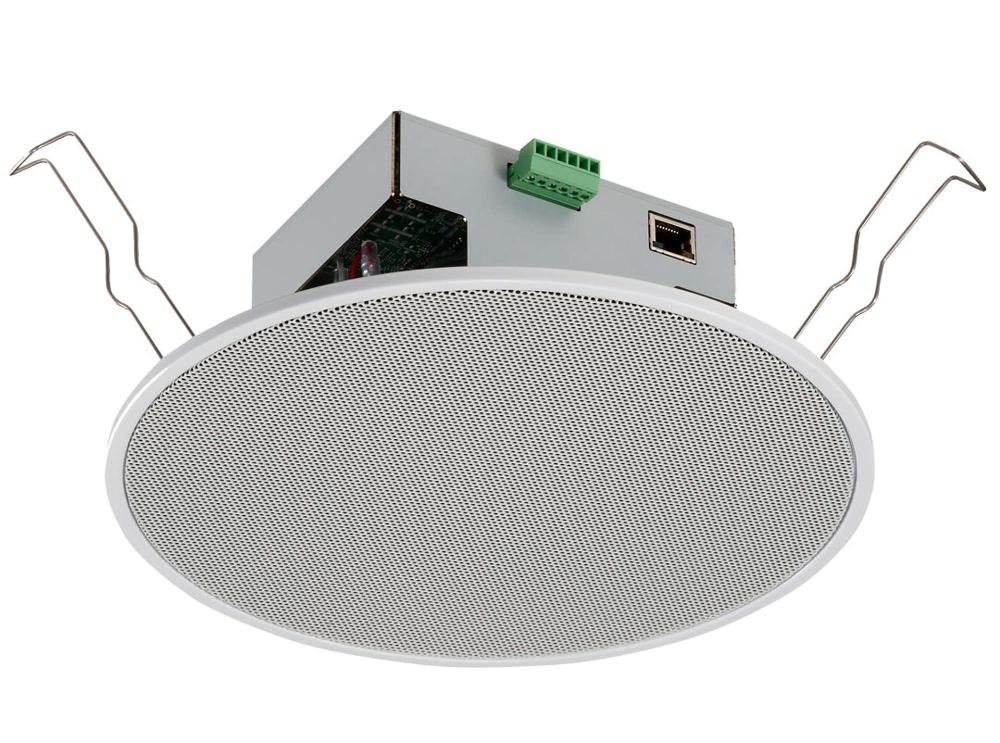

TOA IP-A1PC238 IP Ceiling Speaker, 8 W Built-in Amplifier, PoE-Powered
About this product
The TOA IP-A1PC238 is an IP ceiling speaker with a 16 cm (6”) cone-type speaker for in-ceiling installations and a built-in 8 W power amplifier, powered and connected over a single standard network cable. It receives SIP audio, ONVIF audio and multicast audio (up to 20 addresses) and integrates into a video management system (VMS) or SIP-based communication system for audio calls and paging into indoor areas like offices, conference areas, doctor's offices, educational facilities, hotels or malls.
Key features
- Receives SIP audio, ONVIF audio and multicast audio (up to 20 addresses)
- 16 cm (6”) cone-type speaker for in-ceiling installations
- 8 W built-in amplifier
- PoE-powered over a single standard network cable that also carries the network connection
- Audio file storage for local broadcast: 20 files, total 80 MB, WAV/MP3
- Different playback programs: repeat, duration, weekly timer
- 2 control inputs and 1 control output
- API (HTTP commands) to adapt the volume to the environmental noise level, time of day, distance and degree of emergency
Frequently asked questions
How is the IP-A1PC238 powered?
It is PoE-powered: a single standard network cable provides both power and connectivity. Power / current consumption is 12.95 W (rated output) and 5 W (IEC62368-1).
Which audio streams can the IP-A1PC238 receive?
SIP audio, ONVIF audio and multicast audio (up to 20 addresses). It can also broadcast locally using internal audio files.
How many audio files can it store?
Audio file storage holds 20 files, total 80 MB, in WAV/MP3 format.
How loud is the IP-A1PC238?
Rated output is 8 W, sensitivity (1 W, 1 m) is 94 dB and Max. SPL (1 m) is 103 dB.
How is it fitted in the ceiling?
It has spring clamps for easy and quick installation. Dimensions are 230 x 89 mm (Ø x D).
Does it have control inputs and outputs?
Yes: 2 control inputs (2x no-voltage make contact, terminal block) and 1 control output (1x open collector, terminal block).
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | IP-A1PC238 |
| Manufacturer Part Number (MPN) | IP-A1PC238 |
| Power source | PoE |
| Power / current consumption | 12.95 W (rated output); 5 W (IEC62368-1) |
| Rated output | 8 W |
| Frequency response | 60 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) | 94 dB |
| Max. SPL (1 m) | 103 dB |
| Speaker component | 16 cm cone-type |
| Data I/F | 1x 100BASE-TX (RJ-45) |
| Network protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS, SIP-TLS, DHCP |
| Audio reception | SIP audio, ONVIF audio and multicast audio (up to 20 addresses) |
| Audio file storage | 20 files, total 80 MB, WAV/MP3 |
| Control input | 2x no-voltage make contact (terminal block) |
| Control output | 1x open collector (terminal block) |
| Dimensions | 230 x 89 mm (Ø x D) |
| Finish | traffic white (RAL 9016 or equivalent) |
| Operating temperature | 0 °C to +50 °C |
| Weight | 880 g |
| Colour | Traffic white (RAL 9016 or equivalent) |
