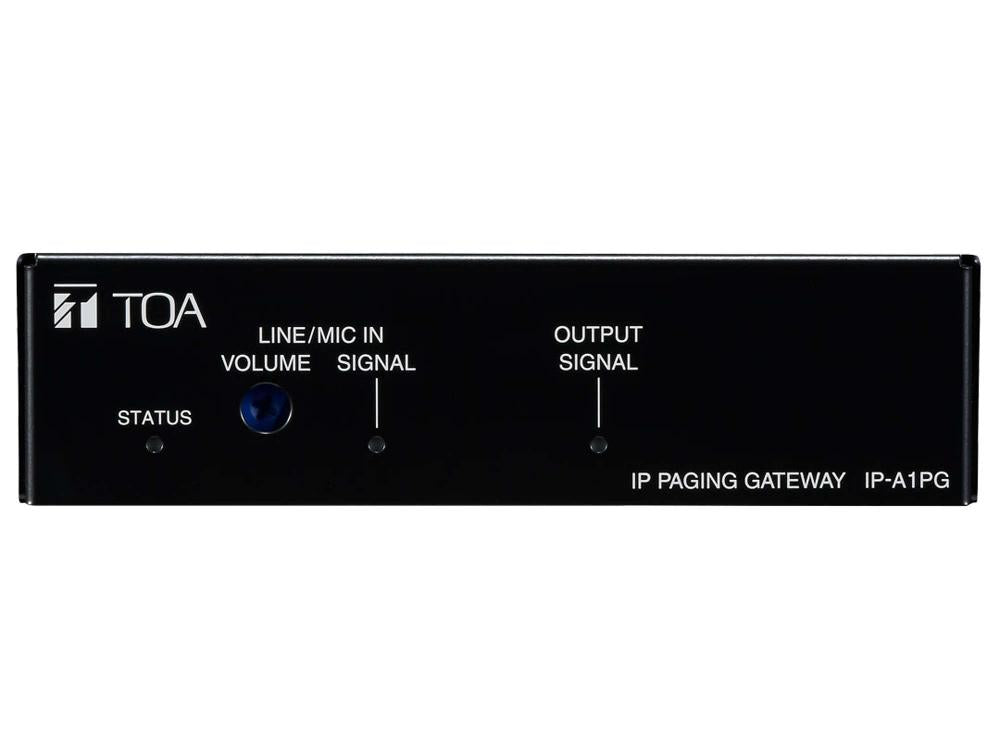

TOA IP-A1PG IP Paging Gateway, PoE-powered, Multicast up to 20 Addresses
About this product
The TOA IP-A1PG is an IP Paging Gateway that converts SIP/ONVIF calls into multicast streams, delivering the group paging function also to systems that are not multicast-ready. Based on open standards, it plugs into standard IP networks and can be integrated into a video management system (VMS) or SIP-based communication system, with a single standard network cable providing both power and connectivity.
Key features
- Converts SIP audio, ONVIF audio, internal audio files or a local audio source into multicast streaming (up to 20 addresses)
- System mute function to mute all broadcasts of IP-A1 series devices within the same network
- 1 local audio input, LINE/MIC selectable, with phantom power ON/OFF (12 V DC)
- API (HTTP commands): transmission of up to 10 HTTP command sets, consisting of up to 20 commands each
- Audio file storage: 20 files, total 80 MB, WAV/MP3
- 4x no-voltage make contact inputs and 1x mute control input (24 V), plus 1x open collector output, on terminal blocks
- Scheduler in the web interface for flexible time schedules
- PoE-powered, with 2.5 W power / current consumption
Frequently asked questions
How is the TOA IP-A1PG powered?
It is PoE-powered: a single standard network cable provides both power and connectivity. Power / current consumption is 2.5 W.
How many multicast addresses can the IP-A1PG stream to?
It converts SIP audio, ONVIF audio, internal audio files or a local audio source into multicast streaming (up to 20 addresses).
Can a microphone or music player be connected?
Yes. It has 1 local audio input (LINE/MIC and phantom power selectable), and an analogue audio source such as audio players for BGM or microphones can be connected and distributed to various IP devices in the network simultaneously.
How many audio files can it store?
Audio file storage holds 20 files, total 80 MB, in WAV/MP3 format.
What control inputs and outputs does it have?
Control input is 4x no-voltage make contact (terminal block) and 1x mute control (24 V, terminal block); control output is 1x open collector (terminal block).
Can it trigger other devices over the network?
Yes. It supports transmission of up to 10 HTTP command sets (consisting of up to 20 commands each), triggered by the API or control inputs.
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | IP-A1PG |
| Manufacturer Part Number (MPN) | IP-A1PG |
| Power source | PoE |
| Power / current consumption | 2.5 W |
| Data I/F | 1x 100BASE-TX (RJ45) |
| Network protocol | TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS, SIP-TLS, DHCP |
| Audio input | 1 channel, electronically-balanced, LINE/MIC selectable, pad function (–20 dBV), Phantom power ON/OFF (12 V DC), volume adjustable |
| Audio output | 1x monitor (balanced, RCA pin jack) |
| Control input | 4x no-voltage make contact (terminal block); 1x mute control (24 V, terminal block) |
| Control output | 1x open collector (terminal block) |
| Multicast streaming | Up to 20 addresses |
| HTTP command sets | Up to 10 (consisting of up to 20 commands each) |
| Audio file storage | 20 files, total 80 MB, WAV/MP3 |
| Dimensions | 126 x 33 x 80 mm (W x H x D) |
| Finish | Steel plate, black |
| Operating temperature | 0 °C to +40 °C |
| Weight | 390 g |
| Colour | Black |
