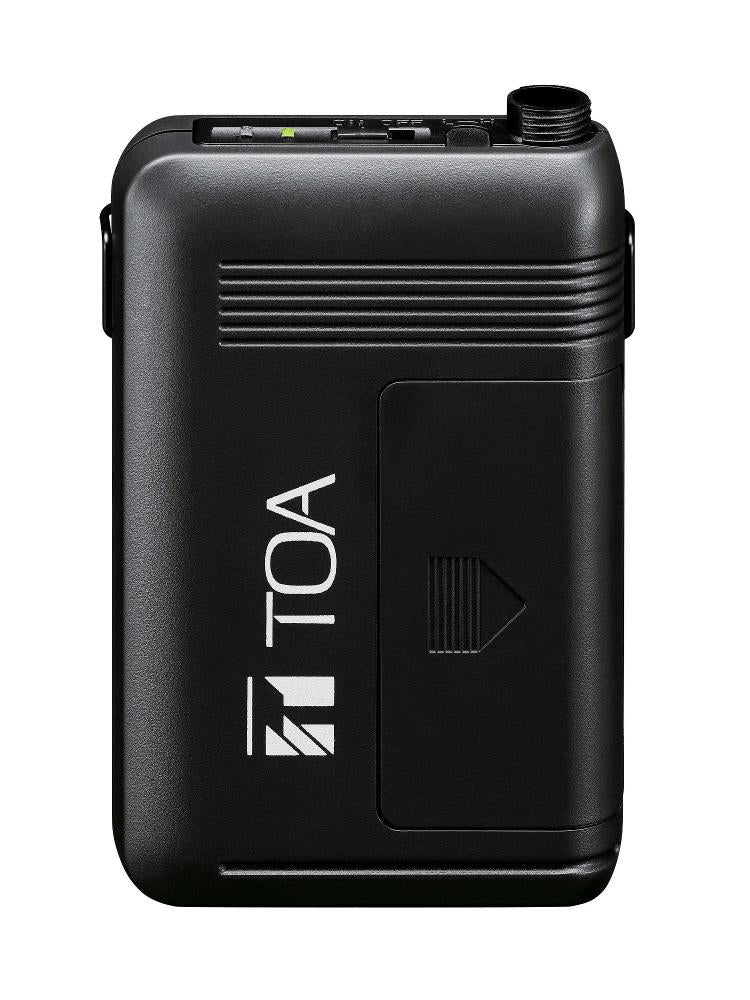

TOA WM-5325 D04 UHF Beltpack Transmitter, 863 – 865 MHz, 64 Selectable Frequencies
About this product
The TOA WM-5325 D04 is a UHF beltpack transmitter for use with a UHF wireless system in speech reinforcement applications. It works across 863 – 865 MHz with 64 selectable frequencies, has a 3.5 mm mini-jack audio input, and runs on 1x AA alkaline battery or WB-2000-2.
Key features
- Frequency range of 863 – 865 MHz
- PLL-synthesizer system with 64 selectable operating frequencies
- 3.5 mm mini-jack audio input with screw-on cap
- Powered by 1x AA type alkaline battery, or WB-2000-2
- Belt clip and length-adjustable neck strap
- High output power for stable radio signal transmission
- 62 x 102.5 x 23 mm (W x H x D) resin body weighing 90 g
Frequently asked questions
What batteries does the WM-5325 D04 take?
It runs on 1x AA type alkaline battery, or WB-2000-2.
What frequency range does it use?
It operates at 863 – 865 MHz, with 64 selectable frequencies from its PLL-synthesizer system.
What audio input does it have?
It has a 3.5 mm mini-jack audio input with a screw-on cap.
How is it worn?
It comes equipped with a belt clip and a length-adjustable neck strap.
What is it designed for?
It is for use with a UHF system in speech reinforcement applications, and is specially developed for speech applications.
How big and heavy is it?
It measures 62 x 102.5 x 23 mm (W x H x D) and weighs 90 g, with a black resin finish.
Specifications
Specifications
| Brand | TOA |
|---|---|
| Model | WM-5325 D04 |
| Manufacturer Part Number (MPN) | WM-5325 D04 |
| Type | Beltpack transmitter |
| Power source | Battery 1x AA type, Alkaline, or WB-2000-2 |
| Frequency range | 863 – 865 MHz |
| Selectable frequencies | 64 |
| Audio input | 3.5 mm mini-jack (with screw-on cap) |
| Dimensions | 62 x 102.5 x 23 mm (W x H x D) |
| Finish | Resin, black |
| Weight | 90 g |
| Colour | Black |
