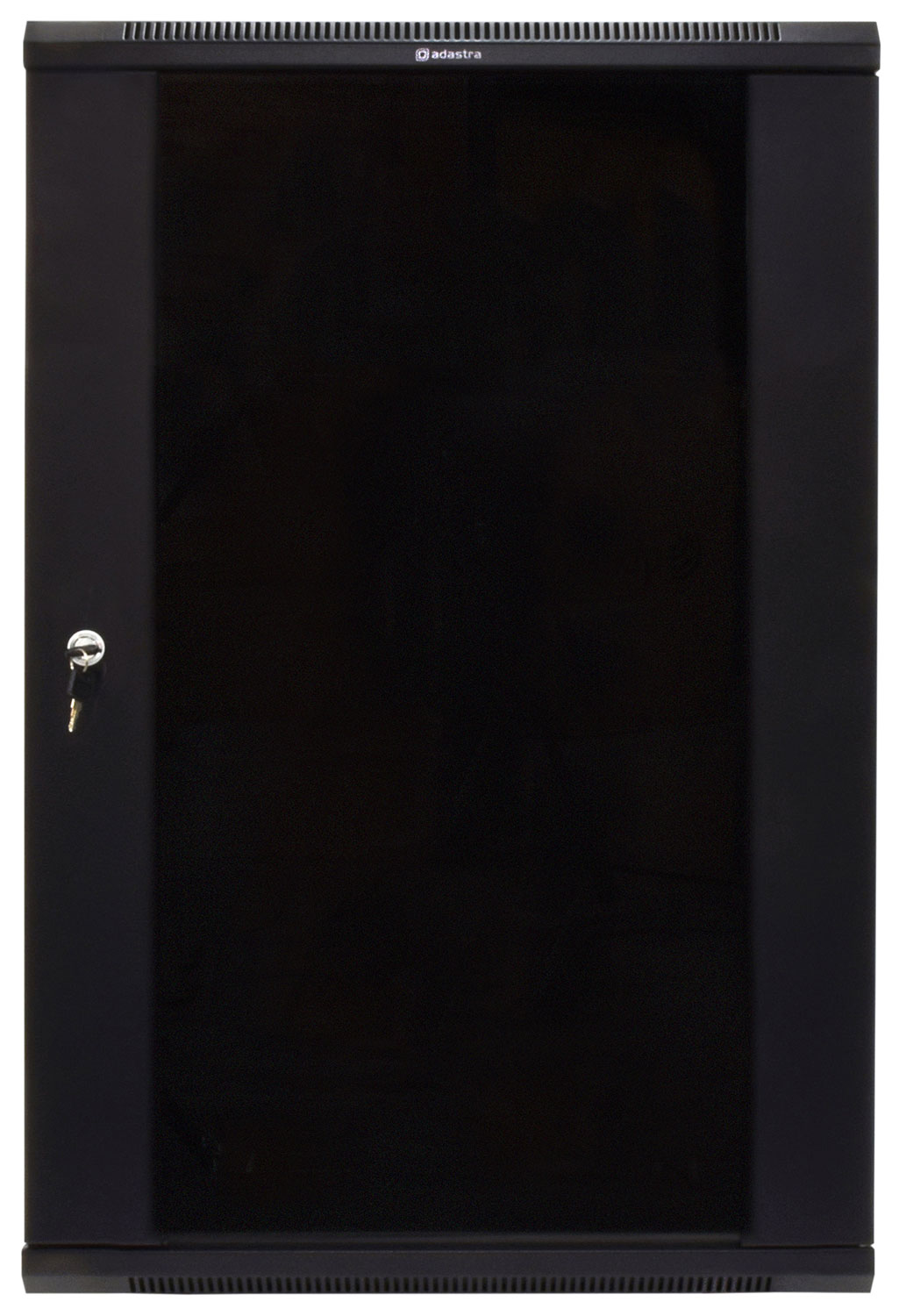

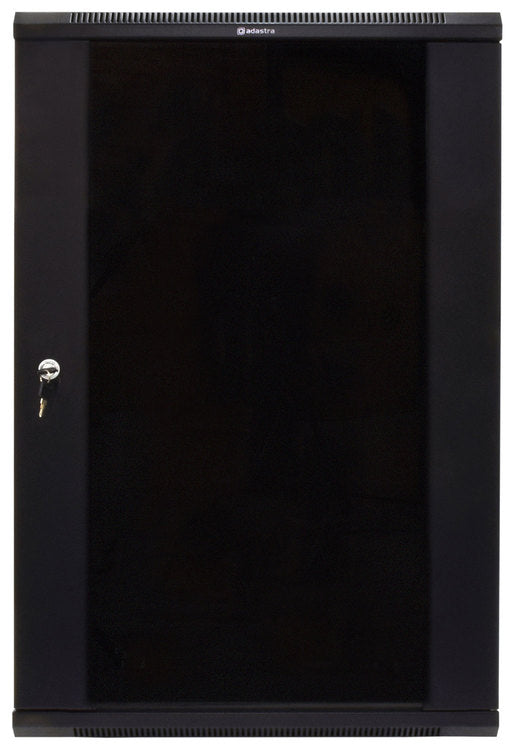

Adastra: 953.518UK, 19" Rack Cabinet, 18U x 450mm Deep, Cold Rolled Steel, Glass Door
About this product
19" Rack Cabinets are perfect for your rack-mount equipment needs. Constructed from cold-rolled steel with removable side panels and a lockable front door, these cabinets provide a secure environment for your equipment.
- Durable epoxy powder coated finish
- Supplied with glass door, lock and 2 keys for added security
- Clip-in side panels allowing easy access
- Versatile: can be wall-mounted or free-standing

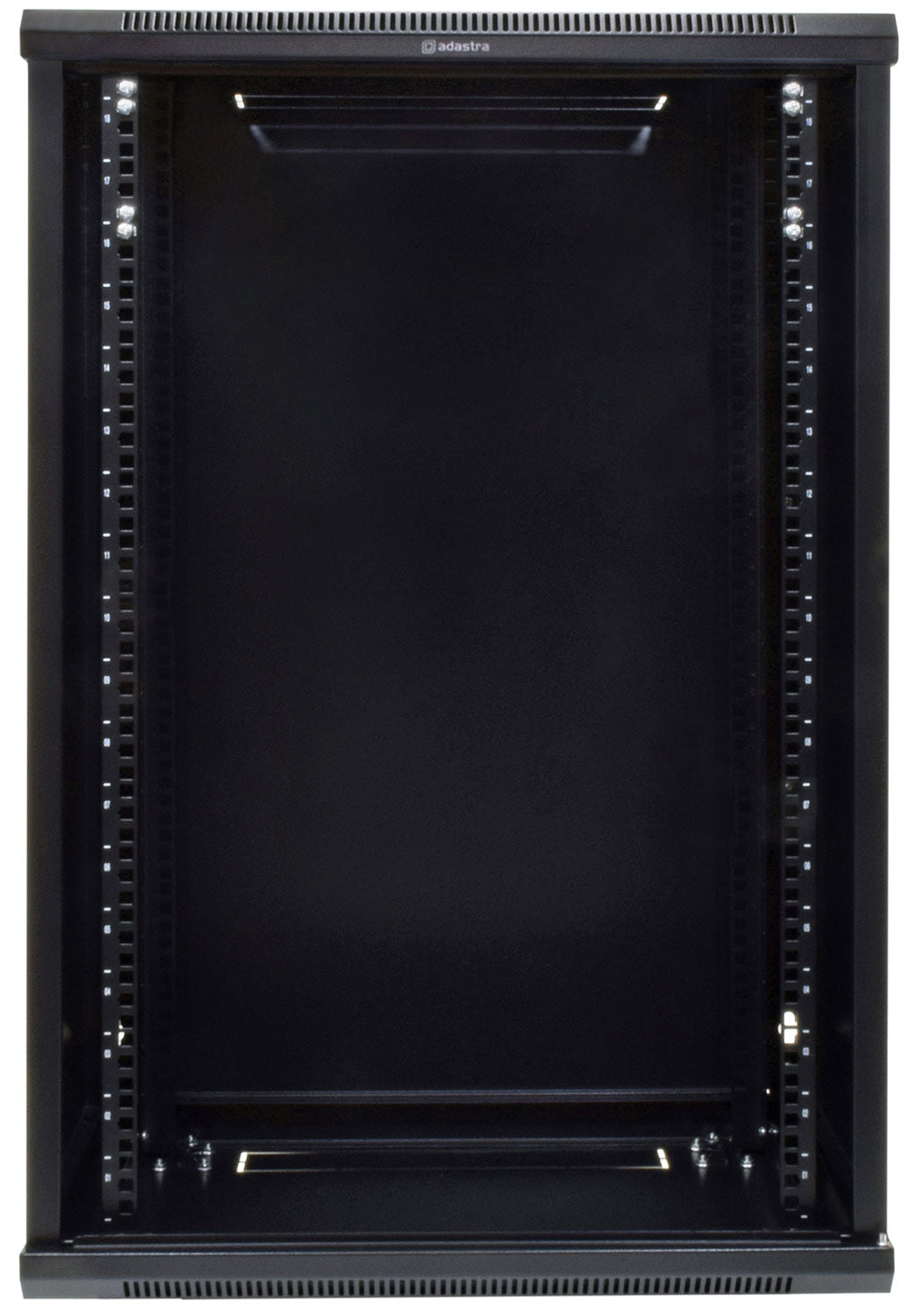

- Easy to assemble with adjustable front & rear rack strips
- Top and bottom knock-outs for cable feeds
- Available in 2 depths and various rack heights
-
Download
- Instruction Manual
Specifications
Specifications

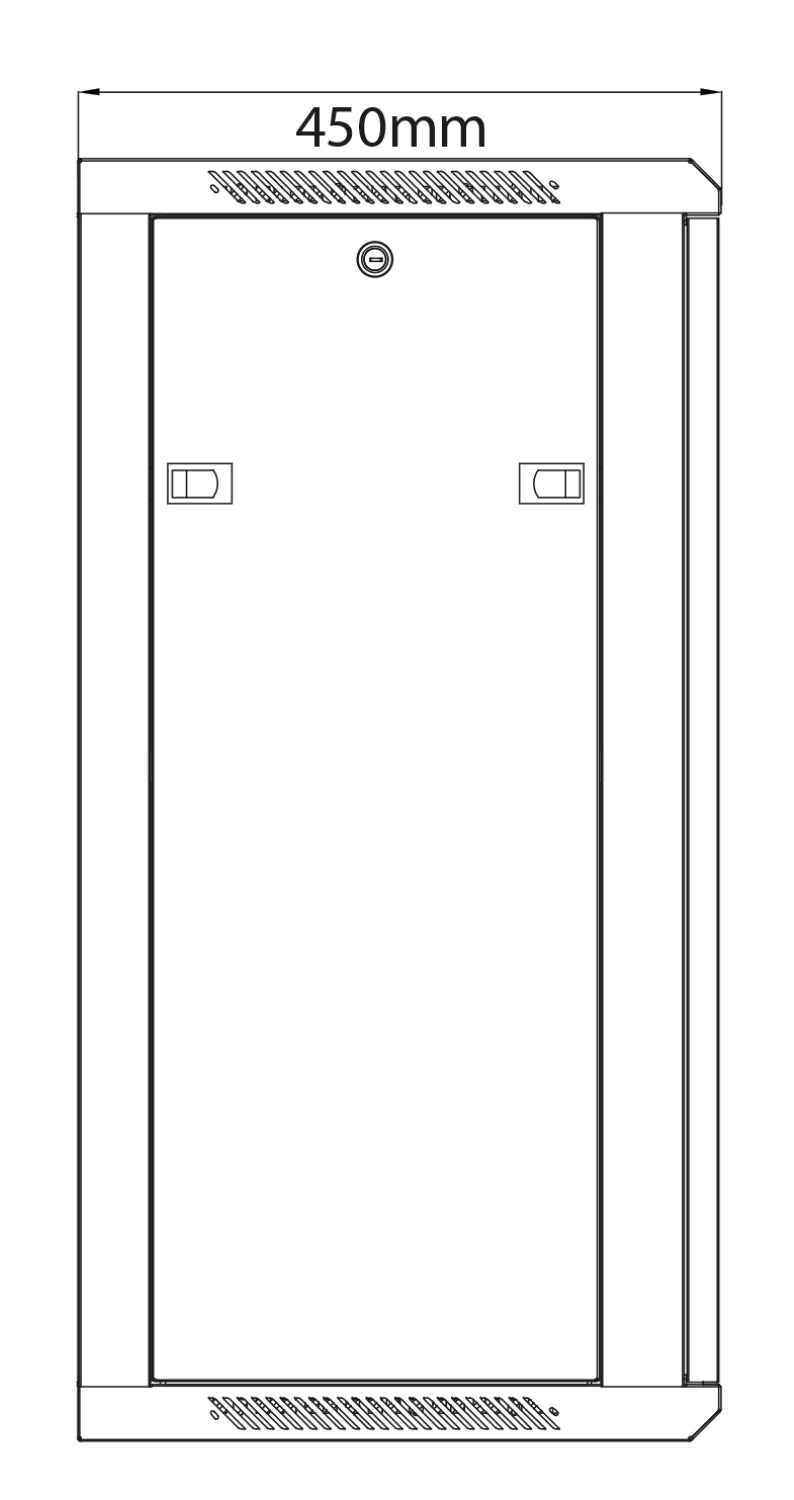

Depth | 450 mm |
---|---|

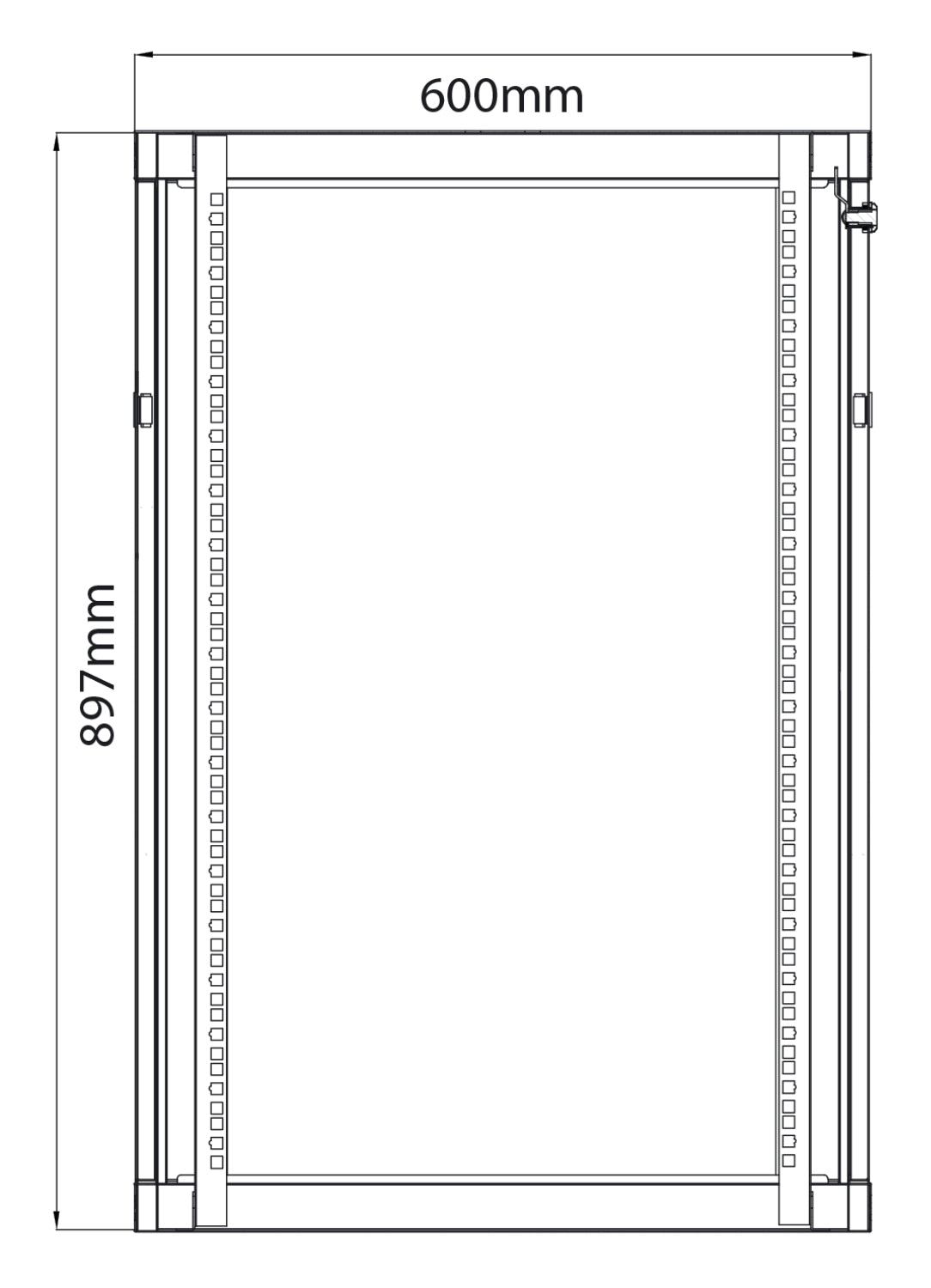

Width | 600 mm |
Finish | Epoxy powder coated RAL9004 |
Height | 897 mm |
Material | 1.2 mm cold rolled steel & 5 mm tempered glass |
Standard | ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI compliant |
Rack Height | 800 mm (18U) |
Maximum Load | 100 kg static (total) |
Mounting Depth | 370 mm |
