B-6806: Stainless Steel Grab Bar, 38mm Diameter, 457-1219mm Lengths
About this product

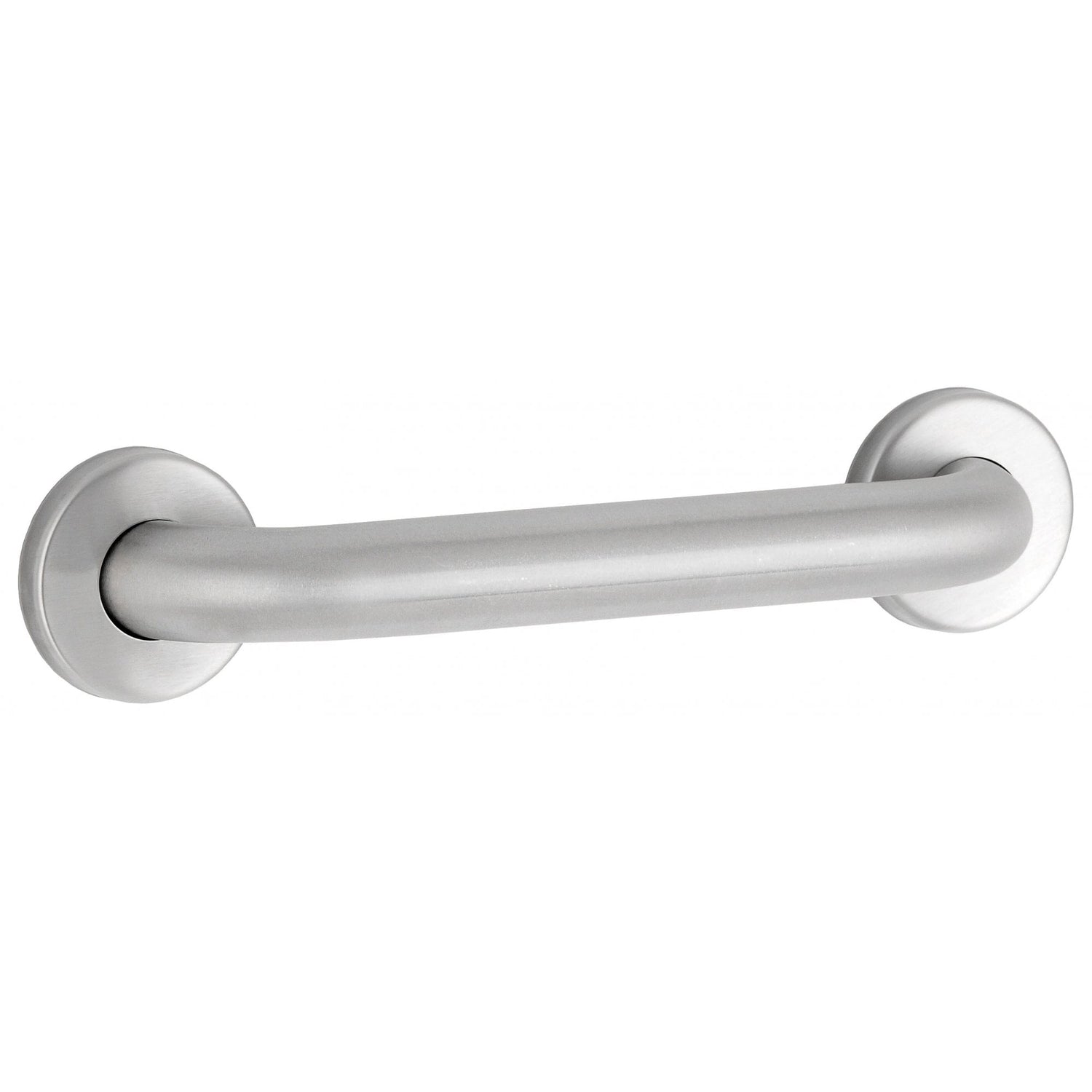

The B-6806 grab bar is designed for mobility assistance, ideal for sanitary facilities accessible to the elderly or disabled. Key features include:
- Available lengths: 457mm, 610mm, 762mm, 914mm, 1067mm, and 1219mm
- Durable brushed stainless steel material
- Supports weight resistance of up to 408Kg (900 pounds)
- Bar diameter of 38mm and bar thickness of 1.2mm

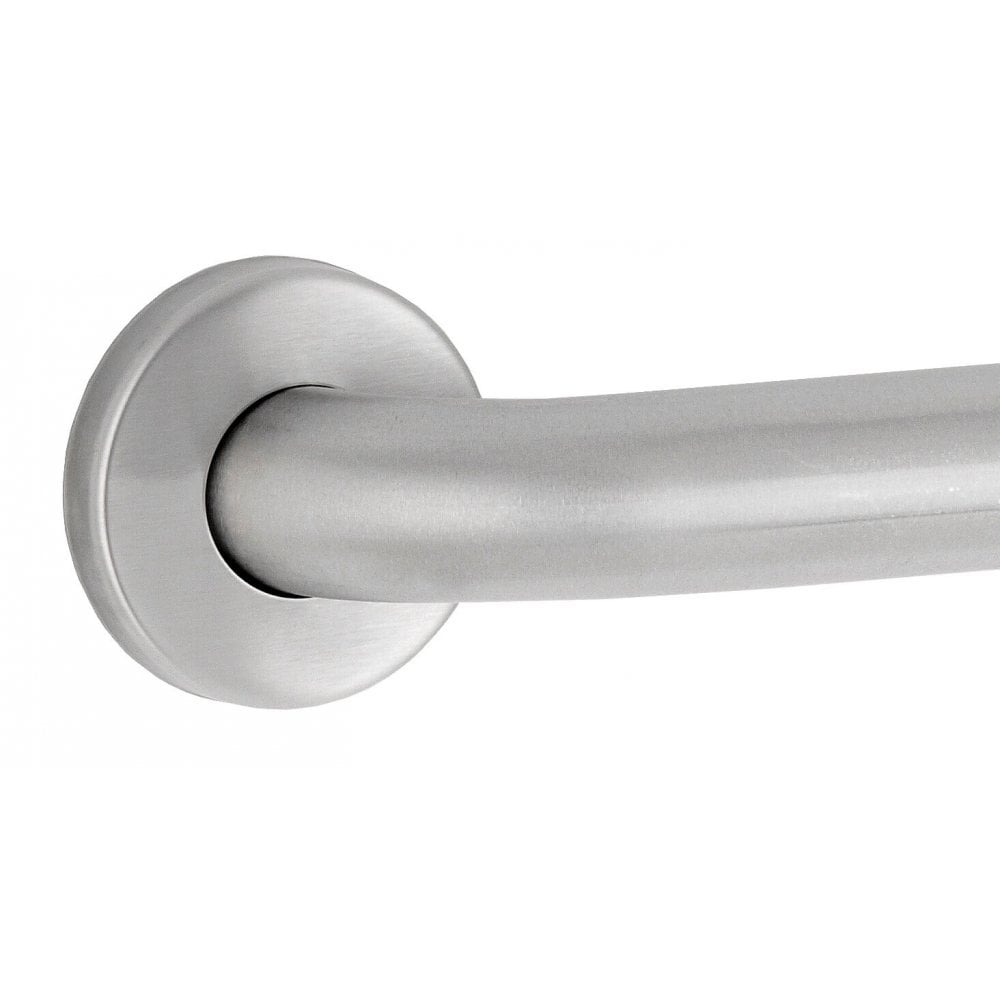

- Snap flange covers with a diameter of 85mm
- Clearance from wall: 38mm
- Handles made from 65-70% recycled metal
Follow maintenance tips to ensure longevity: avoid abrasive cleaning products.
Note: The box does not include concealed anchors or mounting screws; compatible fixing kits are available.
-
Download
- Bobrick Maintenance Tips Stainless Steel (PDF)
- Technical Sheet - Bobrick B-6806 Peened Stainless Steel Handrail with 38mm Diameter
- BIM Object - Bobrick B-6806 Peened Stainless Steel Handrail with 38mm Diameter (RFA)
- CAD - Bobrick B-6806 Peened Stainless Steel Handrail with 38mm Diameter (DWG)
Specifications
Specifications
Weight Resistance | 408 Kg (900 lbs) |
---|---|
Bar Diameter | 38 mm |
Material | Brushed Stainless Steel |
Recycled Metal Content | 65-70% |
B-6806 Stainless Steel Grab Bar (Various Lengths) features
