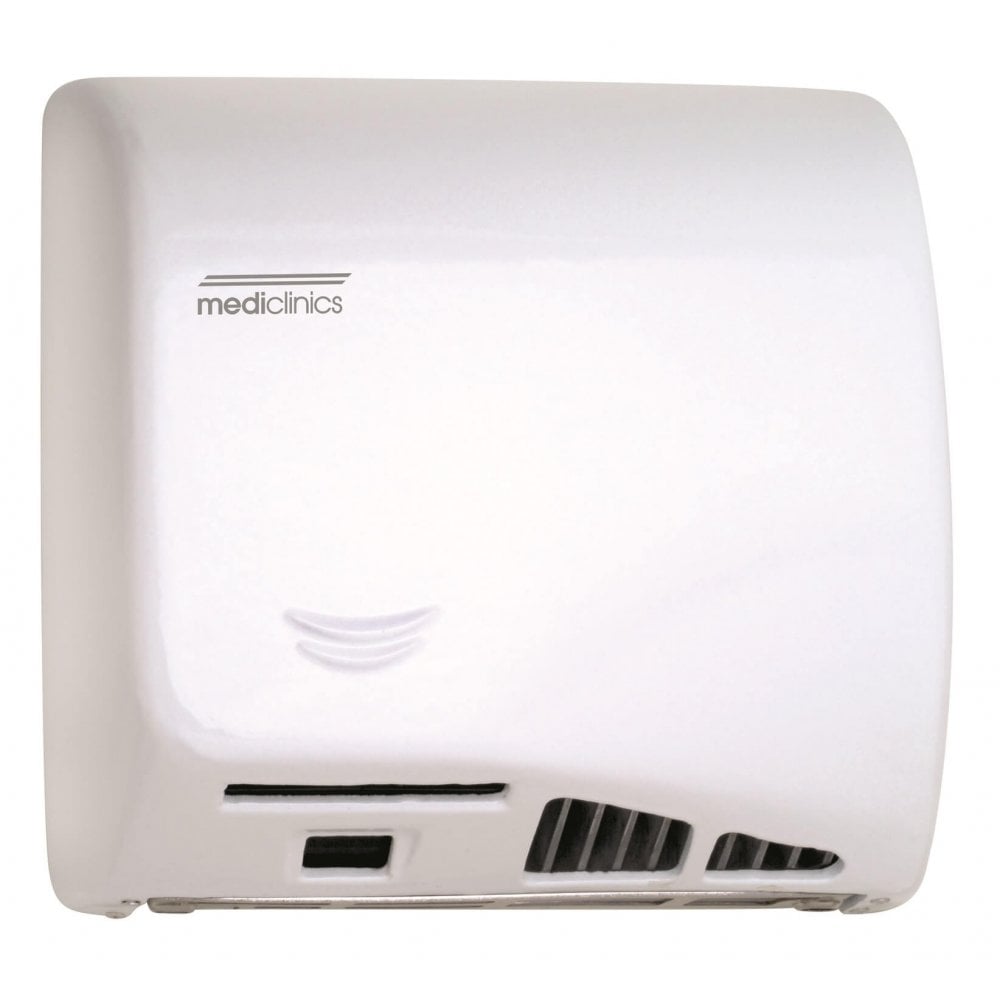

Speedflow Plus Hand Dryer, Cast Iron Enamelled, 180-850W, HEPA
About this product
The Mediclinics Speedflow Plus is one of the most energy efficient hand dryers available, operating at a rated power of just 180W whilst reaching up to 850W at maximum settings. This dryer complies with ADAAG accessibility for public washrooms with a depth of only 10cm.
- Fast Drying: Achieves drying time in 10-12 seconds.
- Energy Efficiency: 4347 dries possible per £1 spent on electricity.
- Low Noise: Maintains a noise level of 57-65 dBA.
- HEPA Filter: Included as standard to improve air quality.
- Durable Design: Features a robust cast iron cover for vandal resistance.
- Adjustable Settings: Customisable motor speed and heater activation.
For safety, the hand dryer stops automatically with 3-5 seconds of detecting a static object and after 30 seconds of continuous use.
This product is CE marked, compliant with UK regulations.
-
Download
- Catalogue Pages - Mediclinics Hand Dryers (PDF)
- Install and User Manual - Mediclinics Speedflow Plus Hand Dryer M17XX (PDF)
- Troubleshooting guide - Mediclinics Speedflow Plus Hand Dryer M17XX (PDF)
- Product Leaflet - Mediclinics Speedflow Plus M17AXX (PDF)
- CB Certificate - Mediclinics Speedflow Plus Hand Dryer M17AXX (PDF)
- CE Certificate - Mediclinics Speedflow Plus Hand Dryer M17AXX (PDF)
- G-MARK Certificate - Mediclinics Speedflow Plus Hand Dryer M17AXX (PDF)
- CAD - Mediclinics Speedflow Plus Hand Dryer M17AF (DWG)

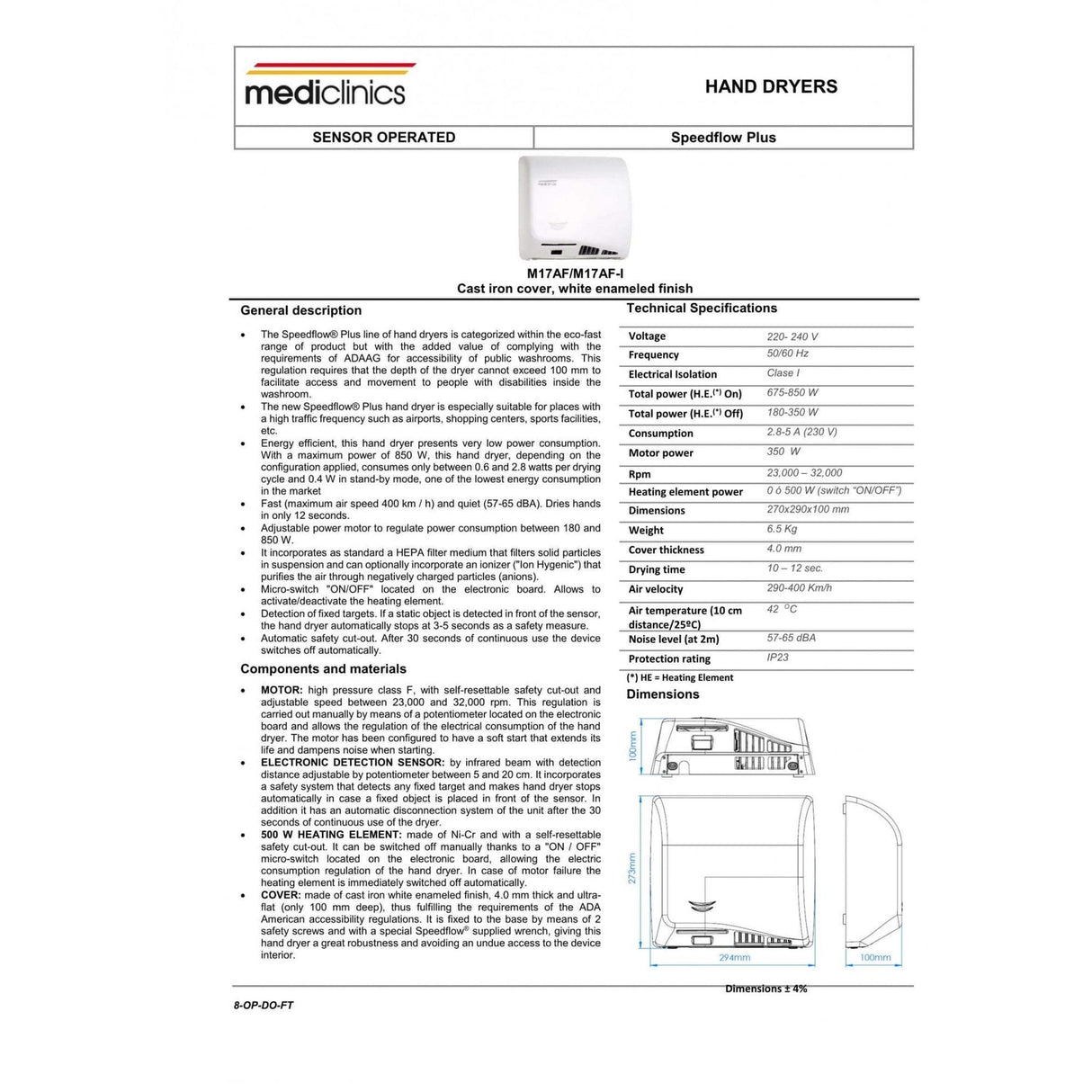

- Spec Sheet / Catalogue Page - Mediclinics Speedflow Plus Hand Dryer M17AF (PDF)

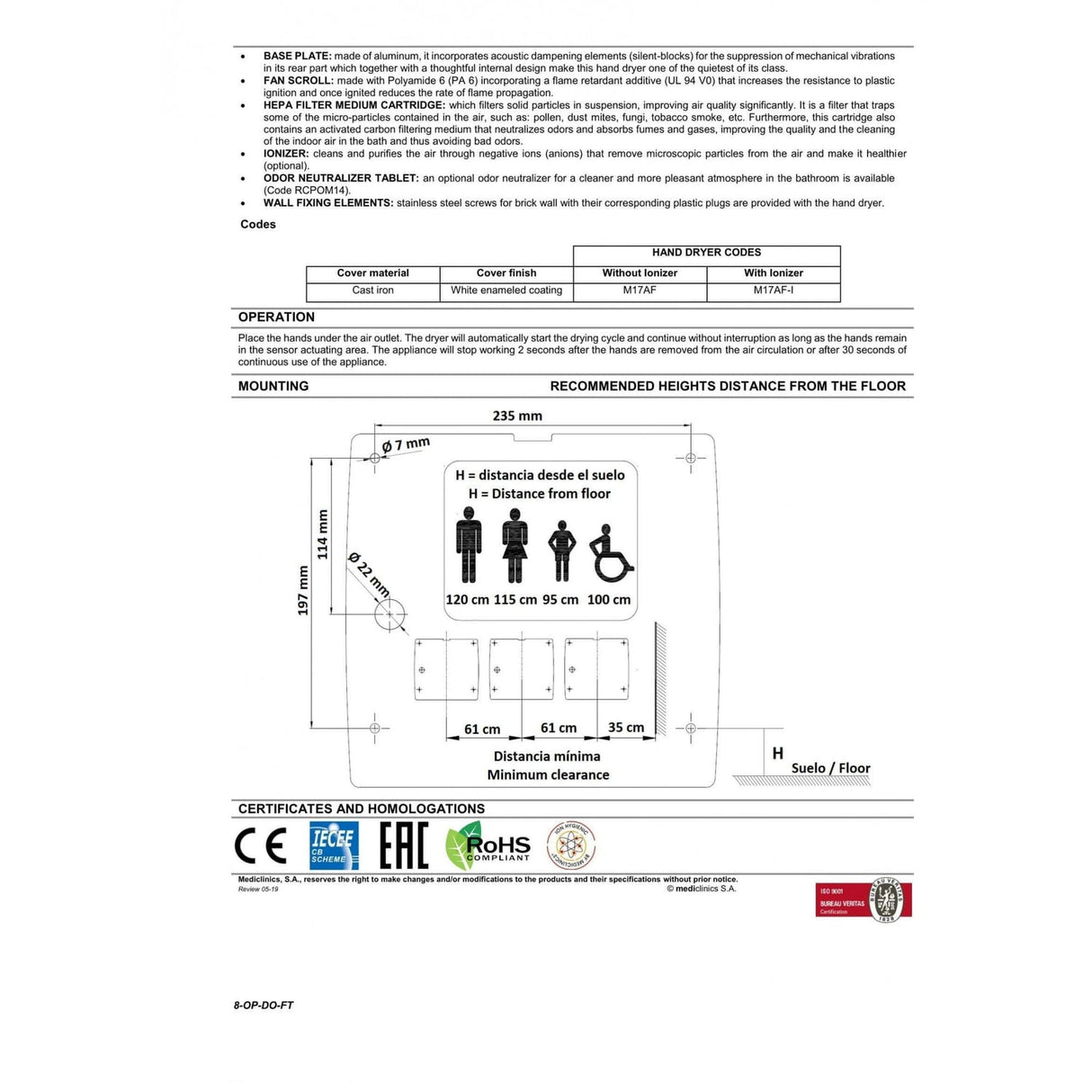

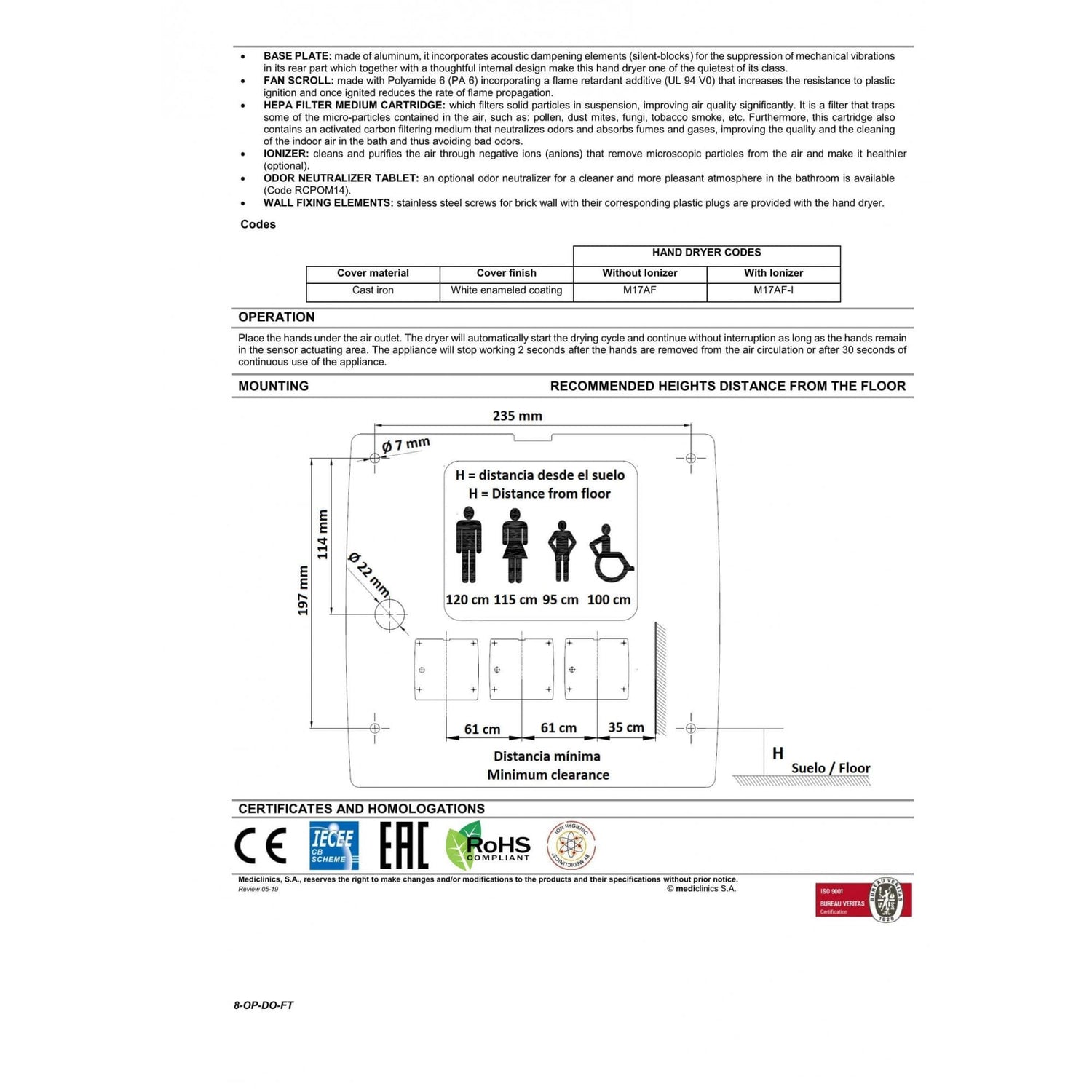

- Outline Drawing - Mediclinics Speedflow Plus Hand Dryer M17AF (PDF)
Specifications
Guarantee
Electrical
Performance
Construction
Accreditations
Dimensions_and_weight
Specifications
Guarantee
Type | Parts and Labour |
---|---|
As standard | 3 Years |
Extended enhanced available | No |
Electrical
Isolation | Class I |
---|---|
Rated power | 0.18 - 0.85 kW |
Energy per dry | 1.17 - 2.36 Wh |
Ingress protection | IP23 |
Heater element power | 0.5 kW |
Electrical supply voltage | 220 - 240V |
Electrical supply frequency | 50 / 60 Hz |
Performance
Dry time | 10 - 15 Seconds |
---|---|
Air speed | 180.1 - 248.5 MPH |
Low noise | Yes |
Motor type | Brushed Motor |
Motor speed | 23,000 - 33,000 RPM |
Adjustable settings | Yes |
Expected motor life | 2,000 Hours |
Recommended daily uses | 101 - 300 (Medium Traffic) |
Construction
Hepa filter | Yes |
---|---|
Cover material | Cast Iron White Enameled |
Notable extras | - |
Finishes available | White |
Antibacterial additives | No |
Accreditations
Certificates | CE. UL, ROHS, EAC, CB |
---|
Dimensions_and_weight
Depth | 100 mm |
---|---|
Width | 290 mm |
Height | 270 mm |
Net weight | 6.5 Kg |
Packed weight | - |
Packaging depth | - |
Packaging width | - |
Packaging height | - |
Speedflow Plus Cast Iron Hand Dryer features
