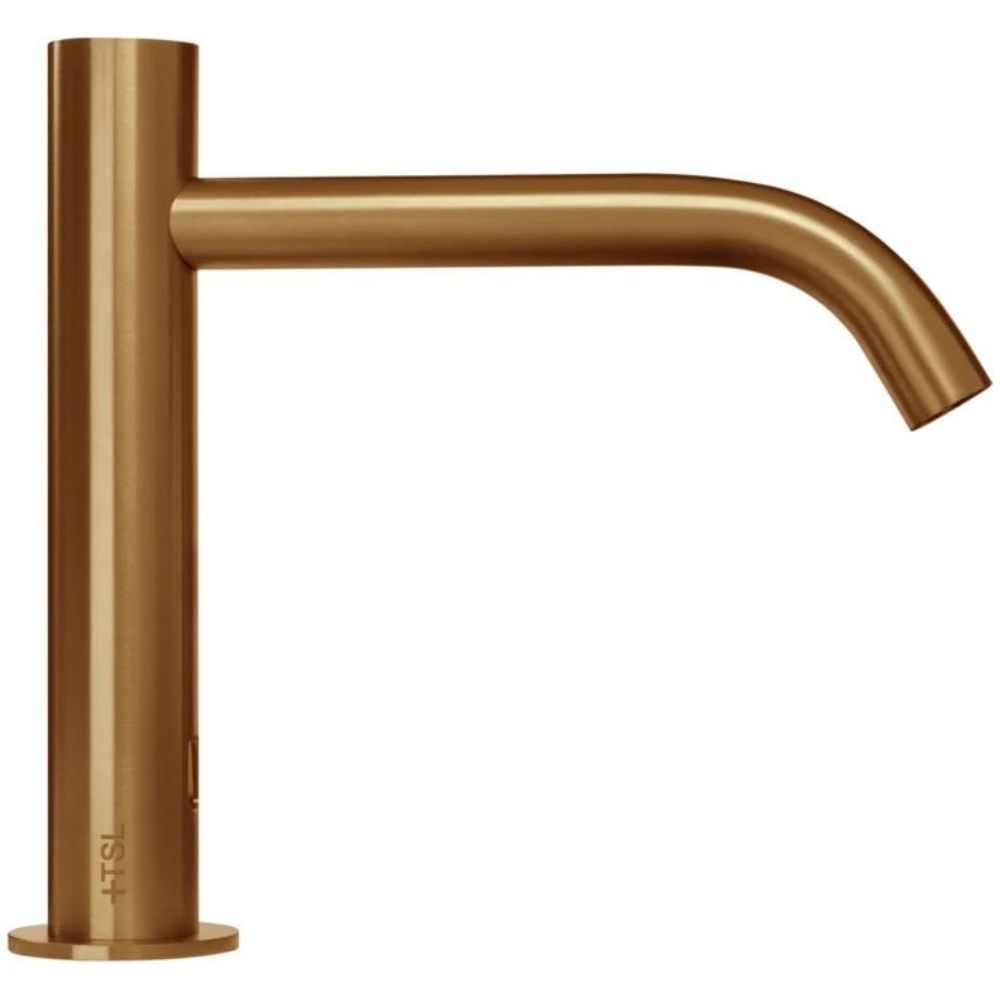

The Splash Lab: TSL.960, Deck Mounted IR Sensor Tap, Mains Operated, 304 Stainless Steel

Product Overview & Key Benefits

The Deck mounted IR Sensor Tap TSL.960 is a state-of-the-art mains operated tap designed to enhance hygiene and convenience in various settings. Ideal for commercial and domestic applications, this touch-free tap offers automatic water flow detection via an infrared sensor, minimising water waste and promoting total hygiene by reducing manual contact. Perfect for busy environments such as restaurants, office washrooms, or public facilities, the TSL.960 not only ensures a luxurious user experience but also meets stringent sustainability standards.

Technical Specifications & Product Details

• Product Title:Deck mounted IR sensor Tap Mains Operated - Large TSL.960
• Supplier SKU:TSL.960CP
• Operation:100-240V; 1.5A; 50-60Hz PSU (Mains)
• Flow Rate at 3 Bar:3.8 lpm; also available - 1.3 lpm spray, 1.89 lpm spray
• Guarantee:2 Years
• Type of Water Mixing:Fixed at Source
• Connector:1/2" BSP female connection
• Mounting:Deck Mounted
• Total Hygiene:No Manual Contact
• Material:304 AISI Stainless Steel
• Available Finishes:Black, Brushed Satin, Bronze, Copper, Brass
• IP Rating:IP67
• Security Time Stop:30 Seconds
• Weight:1.5kg
• Dimensions:175mm Height, 30mm Diameter, 181mm Projection
• Counter Top Hole Requirement:Ø35mm
• Max Counter Top Thickness:50mm

Ideal Uses & Applications

The TSL.960 is particularly well-suited for high-traffic environments where hygiene is paramount. Common applications include:

• Domestic Settings:Ideal for modern households looking to promote hygiene and convenience.
• Commercial Buildings:Utilised in shopping centres and office buildings to enhance the visitor experience.
• Hospitality Venues:Restaurants and hotels can benefit from its luxurious design and touch-free operation to elevate guest satisfaction.
• Public Restrooms:Reduces the need for manual contact, promoting cleanliness and preventing cross-contamination.

Energy Efficiency & Cost Savings

The TSL.960 is designed with energy efficiency in mind. By employing touch-free technology, this tap not only conserves water but also helps reduce energy expenses. Users can save on their water bills and energy costs associated with heating water, ultimately leading to measured benefits, such as:

• Lower water consumption due to efficient sensor activation, which can lead to savings of up to 50 percent on water bills.
• A consistent and controlled water temperature prevents energy wastage associated with overheating.
• Compliance with BREEAM and LEED standards enhances sustainability profiles, making it an ideal choice for eco-conscious users.

In summary, the Deck mounted IR Sensor Tap TSL.960 not only offers practicality and modern design but also embodies sustainable use of resources, making it a valuable addition to any environment where hygiene and efficiency are a priority.
