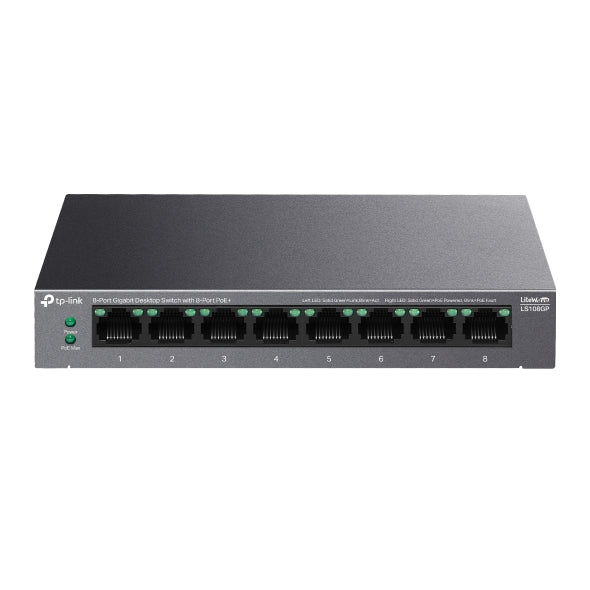

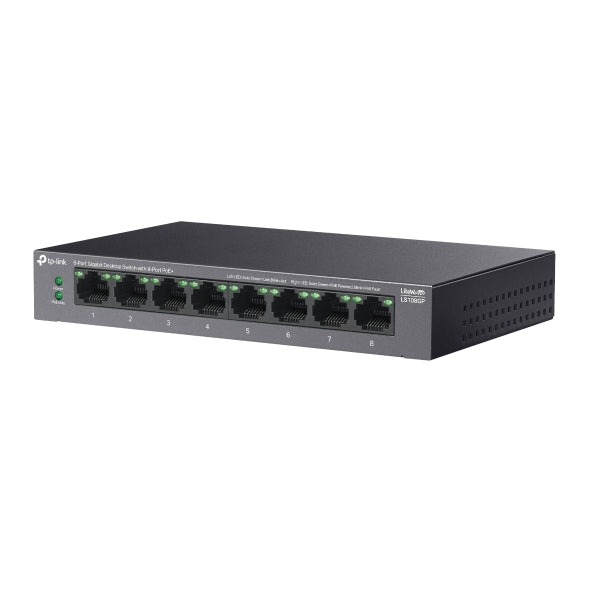

TP-Link 8-Port Gigabit Desktop PoE+ Switch – LS108GP | 62W PoE Budget | 250m Range | Plug & Play

Upgrade your network infrastructure with the TP-Link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+ (SKU: LS108GP)—a powerful, compact, and reliable solution for powering and connecting multiple IP devices in both home and business environments. Designed with plug-and-play convenience, extended transmission capabilities, and PoE auto recovery, this unmanaged switch is ideal for powering IP cameras, wireless access points, and VoIP phones without complex setup or wiring.

Full Gigabit Performance with 62W PoE+ Budget

The TP-Link LS108GP features eight 10/100/1000 Mbps auto-negotiation ports, all supporting IEEE 802.3af/at-compliant PoE+. With a total PoE power budget of 62W, each port delivers up to 30W of power, allowing you to run devices such as:

• IP security cameras (like the TP-Link VIGI Insight S455 or S485)

• Wireless access points

• IP phones

• Smart doorbells

• Thin clients

This reduces the need for separate power adapters and helps streamline your installations with a single Ethernet cablecarrying both data and power.

Extended PoE Transmission up to 250 Metres

Traditional Ethernet switches are limited to 100 metres of cable length. However, by enabling Extend Mode on the LS108GP, your PoE devices can be powered and connected over distances of up to 250 metres at 10 Mbps. This feature is especially valuable for CCTV installations or long-range deployments in large areas such as:

• Parking lots

• Warehouses

• University campuses

• Retail parks

This extended reach allows installers to cover more ground without additional hardware, helping reduce costs and simplify cabling.

PoE Auto Recovery for Uninterrupted Device Uptime

The LS108GP’s PoE Auto Recovery function automatically detects and reboots unresponsive PoE devices, reducing the need for manual intervention. If a powered device such as a security camera or access point crashes or freezes, the switch will restore operation by cycling power, maintaining continuous operation without user input.

Plug-and-Play Simplicity & Fanless Silent Design

No configuration is required. Simply connect your Ethernet cables, and the LS108GP auto-negotiates speed and duplex settings for each port. The fanless, compact metal casing ensures silent operation, making it suitable for environments like:

• Small offices

• Surveillance control rooms

• Home setups

• Medical and library facilities

Mount it on a desktop or wall for maximum flexibility in placement.

Reliable and Durable Hardware

Built with a sturdy metal housing, the LS108GP is engineered for long-term durability and heat dissipation. With support for desktop and wall mounting, it’s ready to adapt to varied environments and network scales.

Use Case Example

For a small retail business looking to set up a robust video surveillance system, the LS108GP is an ideal backbone. It can power up to 8 TP-Link VIGI cameras (e.g., S385 or S455) via PoE, transmit footage over long distances using Extend Mode, and automatically recover any device outages. With no configuration required, it’s a reliable and scalable choice for growing businesses.

Key Specifications:

• Model: LS108GP

• Ports: 8× 10/100/1000 Mbps RJ45 PoE+ Ports

• PoE Standard: IEEE 802.3af/at

• Total PoE Budget: 62W

• Max Power per Port: 30W

• Transmission Distance (Extend Mode): Up to 250m

• Mounting: Desktop/Wall

• Fanless: Yes (Silent Operation)

• Weight: Approx. 0.7 kg

• Dimensions: 171 × 98 × 27 mm

Invest in the TP-Link LS108GP to power and connect your entire IP infrastructure from one central hub—whether it’s for security, communications, or networking. Built for reliability, designed for simplicity.
