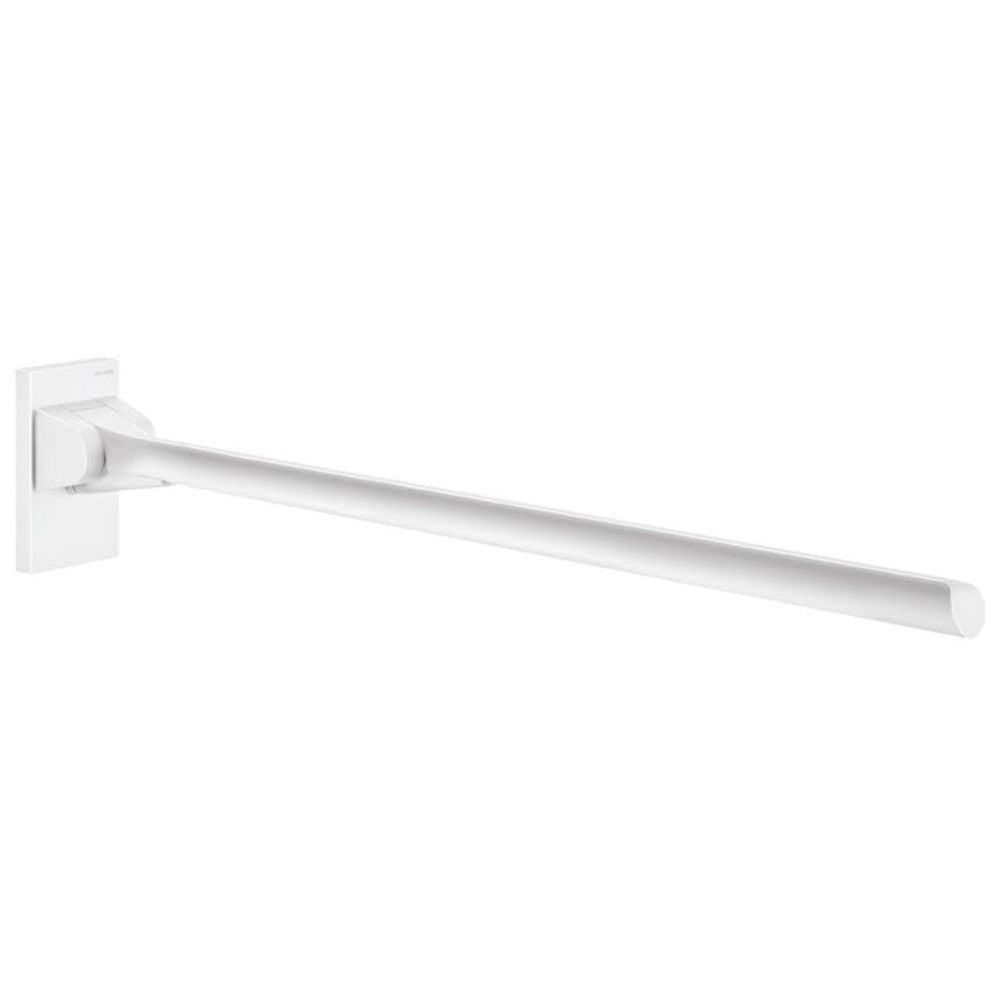

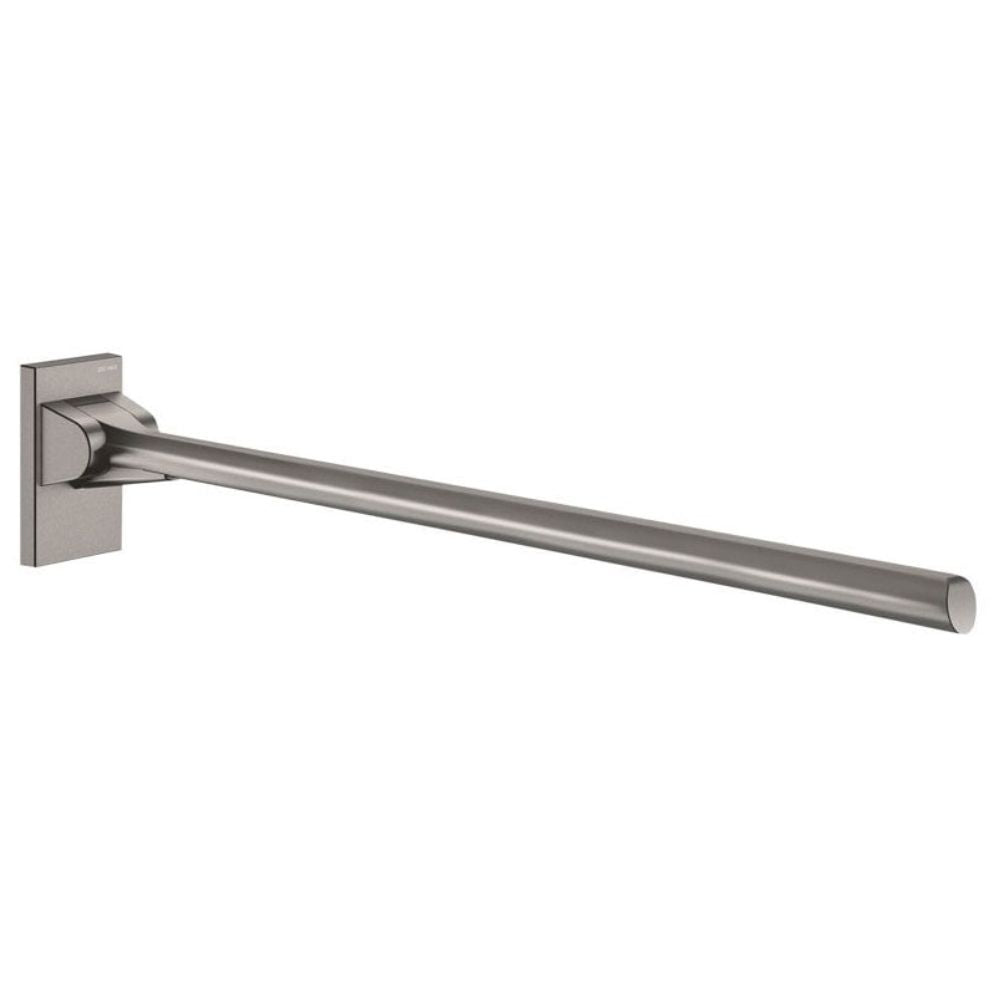

Be-Line: 511964, Aluminium Drop-Down Support Rail, 850mm, 42mm Diameter, Metallised Grey/Matte White
About this product
The DELABIE Be-Line® Aluminium Drop-Down Support Rail is an essential addition for shower and toilet installations, especially designed for enhanced safety and comfort. Key features include:
- Available in a metallised grey or matte white powder-coated finish.
- Weight resistance tested to over 200kg; maximum recommended user weight of 135kg.
- Ergonomically designed with a rounded profile and flat front face to prevent rotation, ensuring optimal grip.
- Concealed fixings secured with a 5mm thick 304 stainless steel plate for durability.
- Easy to clean uniform surface.
- Allows side access when raised and removable for convenience.
- Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
This support rail is ideal for use in hospitality settings such as hotels or B&Bs, allowing flexibility for disabled guests without long-term space commitment.
10 Year Guarantee.

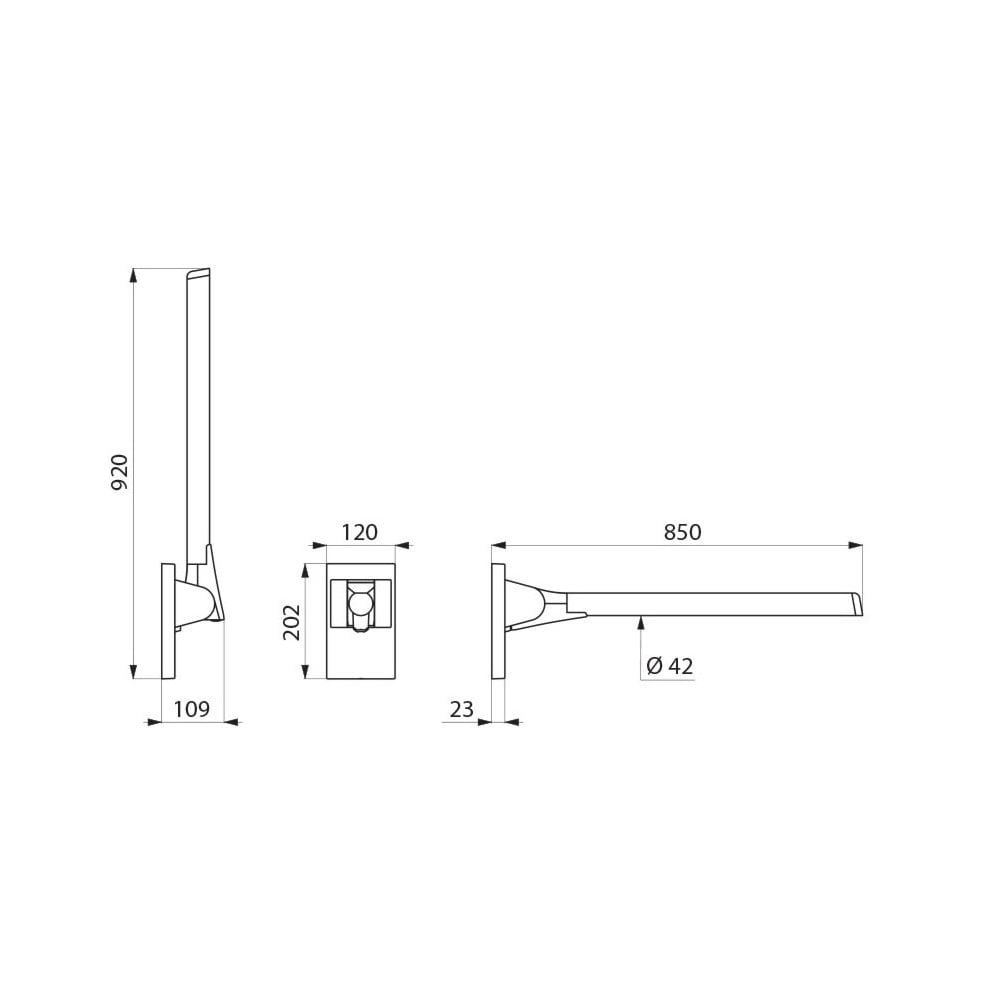

Specifications
Specifications
Weight Capacity | 135 kg (tested to 200 kg) |
---|---|
Material | Aluminium |
Finish Options | Metallised Grey/Matte White |
Diameter | 42 mm |
Length | 850 mm |
Wall Fixings | 304 Stainless Steel Plate 5mm |
Be-Line Drop-Down Support Rail (850mm, 42mm) features
