Hikvision Intercom

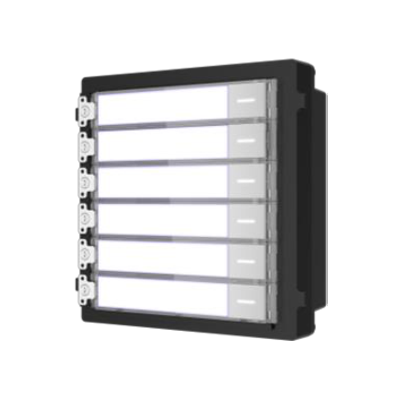

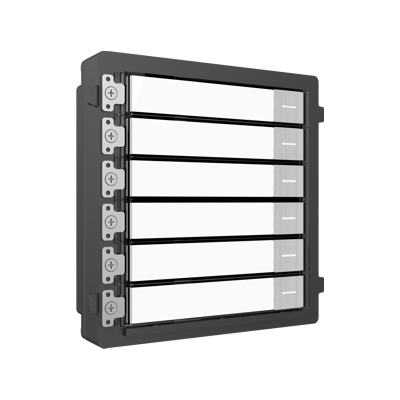

Hikvision intercom links a door station outside with an indoor station on the wall for video door entry. This page holds IP and 2-wire video intercom kits, door stations with MIFARE card readers or face recognition, 7" indoor stations, 9 Series control panels, module frames, a rain shield and a blanking module, a DIN-rail power supply, MIFARE cards, and Hik-Connect and HikCentral intercom licences.

Choosing Hikvision Intercom

Choose the wiring, then the door station, then the indoor stations.

IP or 2-wire

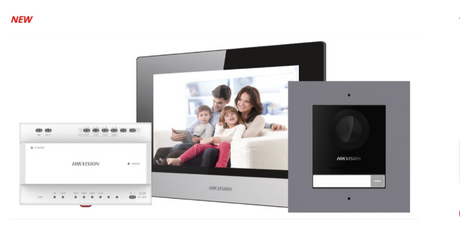

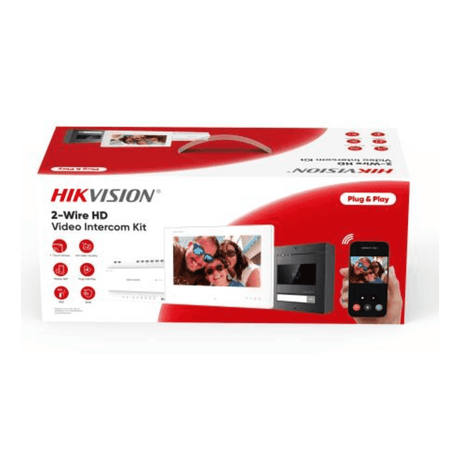

IP systems run over network cable: the DS-KIS604-P(C) kit pairs a 2 MP door station with a 7-inch touch indoor station and uses standard PoE. 2-wire kits suit a retrofit: the DS-KIS704EY puts an IP65/IK08 aluminium door station, a 7" capacitive touch monitor and a 2-wire distributor in one kit, and the distributor provides a 48 V channel supply.

Door stations

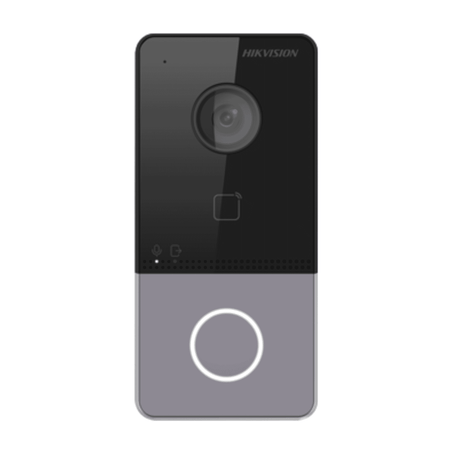

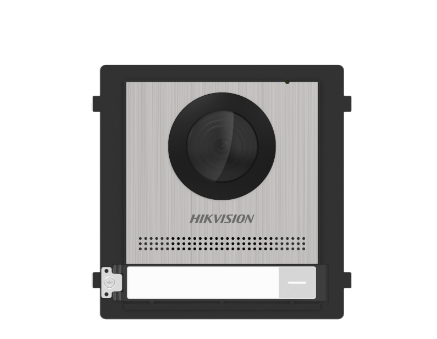

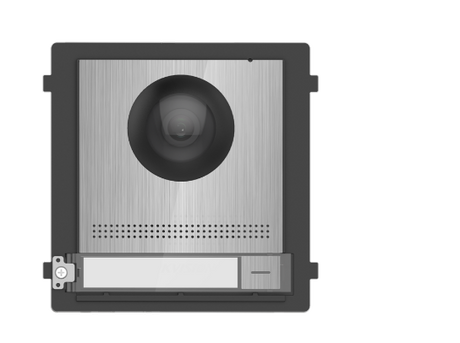

The DS-KV6113-WPE1(C) is a surface-mount villa door station with a 2 MP wide-angle camera, IR illumination and a built-in MIFARE card reader, and the DS-KV8113-WME1(C) is a flush-mount version with Wi-Fi and PoE. The DS-KD9633-WBE6 has a 10.1-inch screen and supports face recognition, fingerprints, card, PIN, Bluetooth and QR codes, with an IP65 rating. Frames such as the DS-KD-ACF2/Black finish modular door stations for flush mounting.

Indoor stations and control panels

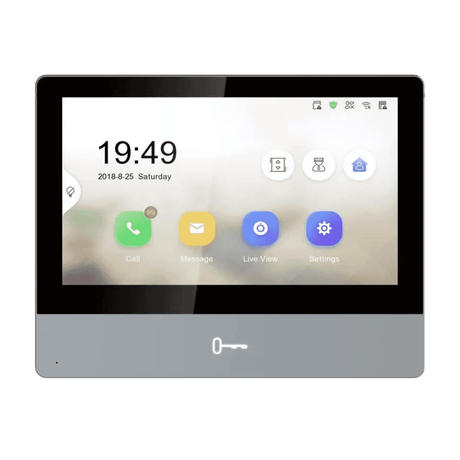

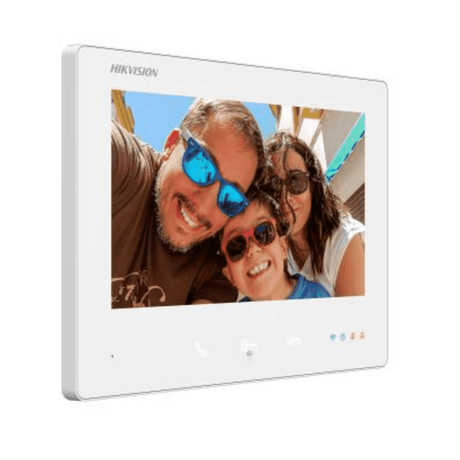

The DS-KH8350-TE1 is a 7" indoor station with PoE or 12 VDC power, 8 alarm inputs, 2 alarm outputs, 2 lock relays and RS-485, and the DS-KH8520-WTE1 adds Wi-Fi and live video from linked cameras. On a 2-wire system, the DS-KH7300EY-WTE2 is powered from a 2-wire distributor and has Wi-Fi for the Hik-Connect app. The DS-KC9570-WTE1/S 9 Series control panel manages lighting, curtains, HVAC, intercom, alarms and network cameras from a 10.1" touch display.

Cards, power and licences

The IC-S50 is a MIFARE S50 contactless card to ISO/IEC 14443A, made for intercom systems that use MIFARE. The HC-Intercom/1Room/1Y licence adds one room to Hik-Connect or HikCentral Connect for 12 months, and the HC-Intercom/1Room/Lifetime licence is the perpetual version.

ModelPartWiringKey detail
DS-KIS604-P(C)Kit: 2 MP door station, 7" monitorIP, PoEIK08 tamper-proof design
DS-KIS704EYKit: aluminium door station, 7" monitor2-wireIP65, IK08
DS-KIS613-SKit: 4MP door stationIP, PoE150° view, 2-locks control
DS-KV6113-WPE1(C)Villa door stationIP, PoE or 12 VDCMIFARE card reader
DS-KD9633-WBE6Face recognition door stationIP10.1" screen, IP65
DS-KH8350-TE17" indoor stationIP, PoE or 12 VDC8 alarm inputs
DS-KH7300EY-WTE27" indoor station2-wireWi-Fi, microSD

Related categories

Compare other makers in door entry and intercom systems and door stations and monitors. Add cameras from Hikvision CCTV cameras, readers and controllers from access control systems, and the locks a door station releases from door locks. Setup and integration help is in our CCTV and security blog.

Frequently asked questions

What is a 2-wire Hikvision intercom?

It is a video intercom that runs over two-wire cabling, so an existing door entry cable can often be reused. The DS-KIS704EY kit pairs a 2 MP aluminium door station, rated IP65 and IK08, with a 7" capacitive touch monitor and a 2-wire distributor that provides a 48 V channel supply. Indoor stations such as the DS-KH7300EY-WTE2 are powered through that distributor.

What comes in a Hikvision IP video intercom kit?

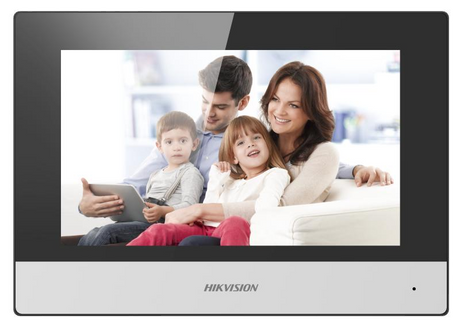

A door station and an indoor station, usually with power and a memory card. The DS-KIS604-S(C) includes a DS-KV8113-WME1(C) door station, a DS-KH6320-WTE1 indoor station, a 4-port standard PoE switch, a 16 GB TF card and a power adapter. The DS-KIS613-S has a 4MP door station with a 150° viewing angle and adds a 32GB TF card, an administrator card and five key fobs.

Can I answer the door from my phone?

Yes, through the Hik-Connect app on stations that support it. The DS-KH8520-WTE1 indoor station allows remote unlocking through client software or mobile apps, and the DS-KIS604-S(C) kit has Hik-Connect app mobile control. For managed sites, the HC-Intercom/1Room/1Y licence enables app calling and remote door opening for one room for 12 months.

Can the door station also read access cards?

Yes, several door stations have a built-in reader. The DS-KV6113-WPE1(C) and DS-KV8113-WME1(C) have an integrated MIFARE card reader with capacity for up to 10,000 cards, and the DS-KD9633-WBE6 adds face recognition, fingerprint, PIN, Bluetooth and QR code entry. IC-S50 MIFARE S50 contactless cards are made for intercom systems that use MIFARE technology.
