Ruijie Modules

Match the module to the switch chassis first, then to the output voltage and power it has to supply. Check the module part number against the chassis's supported list before fitting.

RG-PA150IB-F and RG-PA150I-F

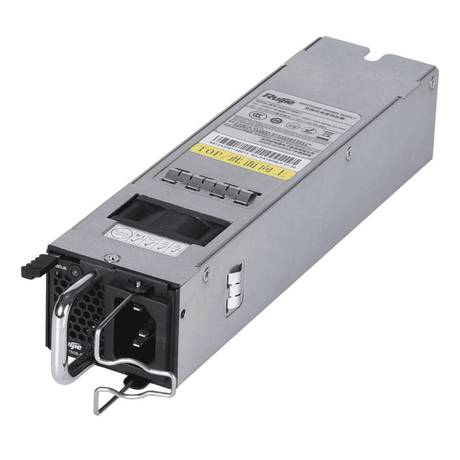

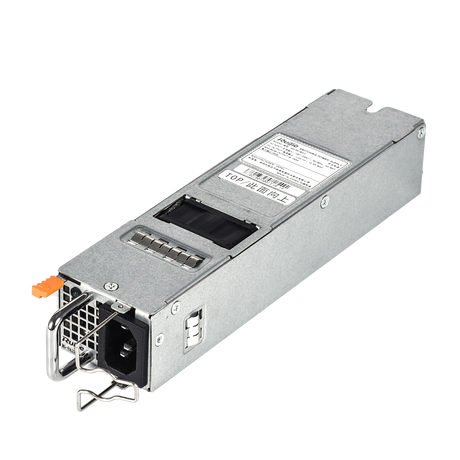

The RG-PA150IB-F is a 150 W hot-swappable AC power module with a 12 V DC output of up to 12.5 A. It can be inserted or removed while the host stays powered, and two modules can run in parallel and share current. It reports its status to the host over I2C, protects against undervoltage, overcurrent, overvoltage and short circuit, and has a conformal coating against moisture and contaminants. The RG-PA150I-F is a 150 W internal power module with a 12 V DC output of max 12.5 A, a 100–240 VAC input with HVDC support, I2C monitoring and status LEDs.

RG-PA600I-P-F and RG-PA1000I-P-F for PoE switches

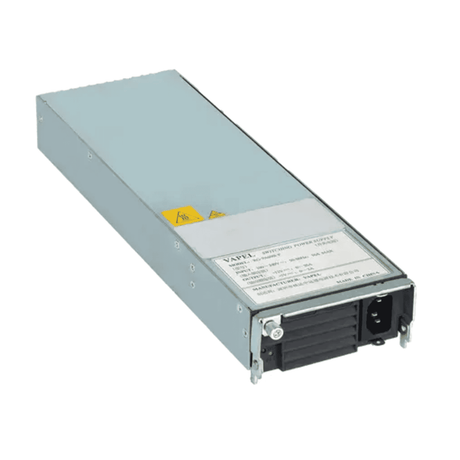

The RG-PA600I-P-F is a hot-plug AC/HVDC power module with a 56 V DC output and up to 600 W in total, a typical PoE budget of about 370 W depending on the chassis. The RG-PA1000I-P-F gives up to 1000 W, depending on the input voltage, for large PoE budgets in high-port deployments. Both suit redundant power configurations, have a status LED and use rear-to-front airflow, so check the chassis cooling direction before fitting one.

DIN-rail industrial power

The RG-NIS-PA240-54 is an AC/DC industrial power module that gives a nominal 54 V DC at up to 4.4 A (240 W) through dual DC outputs. The RG-NIS-PA240-54 mounts on a TS35 DIN rail for cabinet installation, takes a 100–240 V AC input at 47–63 Hz, and has a DC-OK indicator plus short-circuit, over-current, over-voltage, over-temperature and surge/ESD protection. It powers Ruijie and Reyee industrial switches and other network devices.
