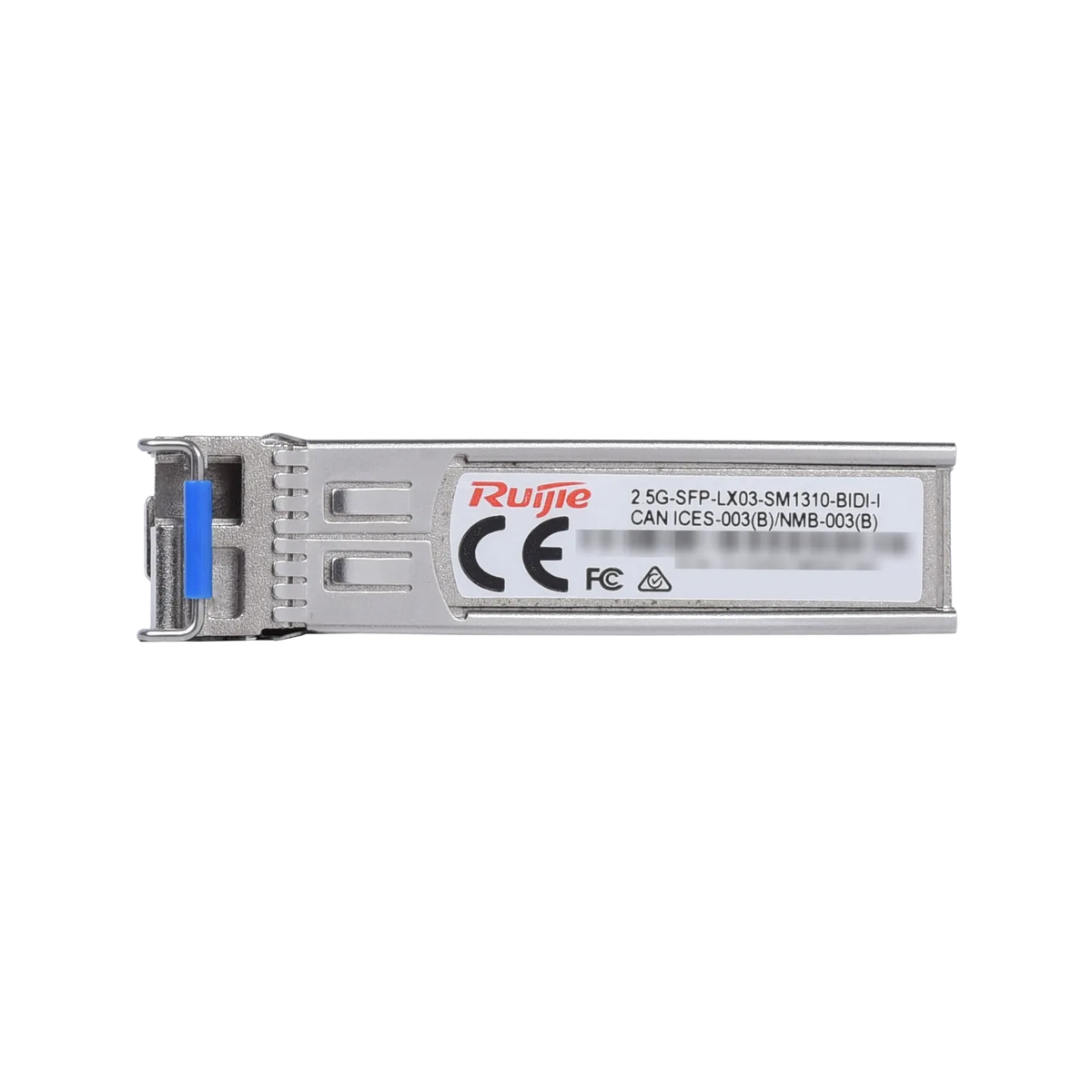

Ruijie 2.5G-SFP-LX03-SM1310-BIDI-I 2.5G BiDi SFP Transceiver Module, 1310nm-TX/1550nm-RX, 3 km
£
47
76
(Incl. VAT)
RRP: £57.31
About this product
The Ruijie 2.5G-SFP-LX03-SM1310-BIDI-I is a 2.5G BiDi SFP transceiver module (1310nm-TX/1550nm-RX) that uses one fibre for transmitting and receiving, over simplex LC SMF, with a reach of 3 km. It is applicable to data centre and campus networks.
Key features
- Bidirectional optics: 1310nm-TX/1550nm-RX
- One fibre for transmitting and receiving, saving half the fibre
- Reach of 3 km (9,842.52 ft.) over SMF
- Data rate 3.125 Gbps
- Hot pluggable, SFP MSA compliant
- Digital optical monitoring (DDM/DOM) for diagnostics
- Max. power consumption 1 W
- Class 1 laser safety and RoHS compliant
Frequently asked questions
What wavelengths does the 2.5G-SFP-LX03-SM1310-BIDI-I use?
It is 1310nm-TX/1550nm-RX.
How far can it reach?
Its reach is 3 km (9,842.52 ft.) over SMF.
What connector does it use?
A BIDI LC connector, using one fibre for transmitting and receiving.
Does it support DOM monitoring?
Yes. It is data diagnosis-capable (DDM/DOM), with digital optical monitoring capability.
Is it hot pluggable?
Yes. It is hot pluggable and SFP MSA compliant.
What is its operating temperature range?
–40ºC to +85ºC (–40ºF to +185ºF).
£
47
76
RRP: £57.31
Save £9.55
Price
Technical Details
Specifications
Brand
Ruijie
Model
2.5G-SFP-LX03-SM1310-BIDI-I
Manufacturer Part Number (MPN)
2.5G-SFP-LX03-SM1310-BIDI-I
Wavelength
1310nm-TX/1550nm-RX
Data rate
3.125 Gbps
Form factor
SFP
Connector type
BIDI LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Receiver type
PIN
Reach
3 km (9,842.52 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1 W
Max. transmit power (AVG)
–3 dBm
Min. transmit power (AVG)
–9 dBm
Min. extinction ratio
≥ 6.5 dB
Receive sensitivity (OMA)
< –16 dBm
Overload optical power (AVG)
–3 dBm
Operating temperature
–40ºC to +85ºC (–40ºF to +185ºF)
Operating humidity
10% RH to 90% RH
Storage temperature
–40ºC to +85ºC (–40ºF to +185ºF)
Storage humidity
10% RH to 90% RH
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.51 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
Specifications
| Brand | Ruijie |
|---|---|
| Model | 2.5G-SFP-LX03-SM1310-BIDI-I |
| Manufacturer Part Number (MPN) | 2.5G-SFP-LX03-SM1310-BIDI-I |
| Wavelength | 1310nm-TX/1550nm-RX |
| Data rate | 3.125 Gbps |
| Form factor | SFP |
| Connector type | BIDI LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Receiver type | PIN |
| Reach | 3 km (9,842.52 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1 W |
| Max. transmit power (AVG) | –3 dBm |
| Min. transmit power (AVG) | –9 dBm |
| Min. extinction ratio | ≥ 6.5 dB |
| Receive sensitivity (OMA) | < –16 dBm |
| Overload optical power (AVG) | –3 dBm |
| Operating temperature | –40ºC to +85ºC (–40ºF to +185ºF) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | –40ºC to +85ºC (–40ºF to +185ºF) |
| Storage humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.51 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
