Hikvision IP68 Products

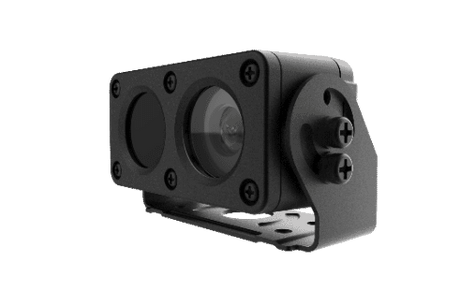

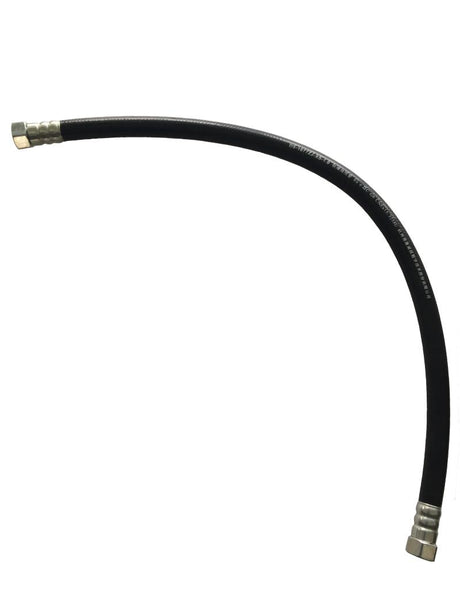

Hikvision IP68 products are cameras and accessories rated dust-tight and protected against continuous immersion under IEC 60529, for sites exposed to water, dust or corrosion. This page includes an underwater vari-focal bullet camera, an anti-corrosion ColorVu bullet camera, thermal bi-spectrum bullet cameras, an analogue mobile camera, a body-worn camera, a face access terminal, junction boxes, flexible conduit and the DS-2FSCH30 solar backup battery pack.

Choosing Hikvision IP68 Products

Pick by the hazard on site: weather and water, corrosion, an explosive atmosphere, or a camera that has to go with the wearer.

Explosive atmospheres

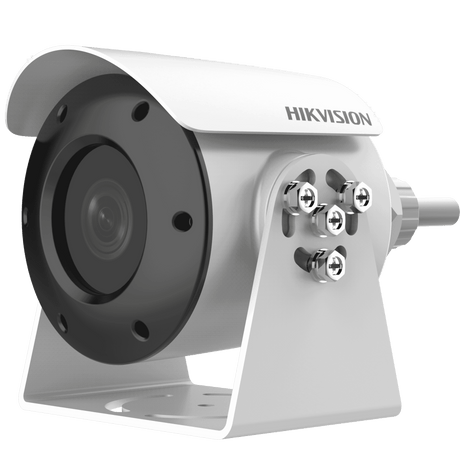

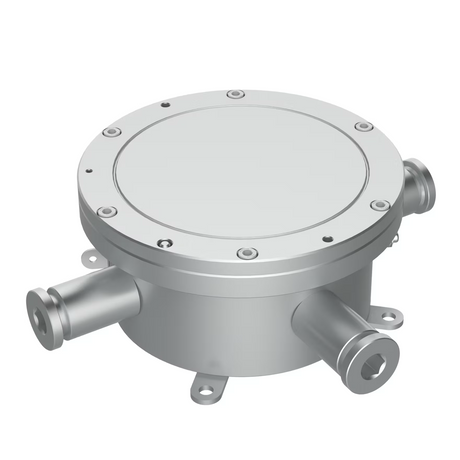

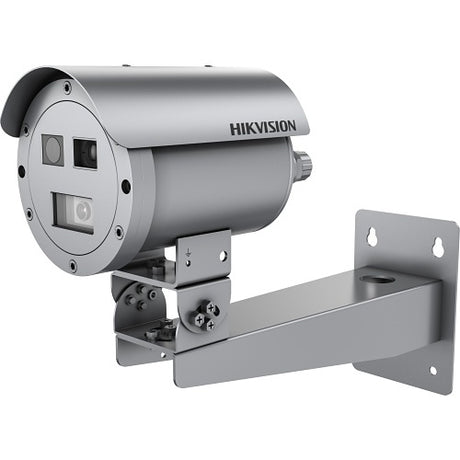

The DS-2XE6025G0-I is a 2 MP camera in an aluminium-alloy flameproof housing certified to ATEX and IECEx for Zone 1, 2, 21 and 22, rated IP68 and IK08, with a fixed 4 mm lens, smart infrared to 30 m and 24 VDC or 802.3af PoE power. The DS-2TD2568T-15/G0/T1Y and DS-2TD2568T-5/G0/T1Y are thermographic thermal and optical bi-spectrum bullet cameras in 304 stainless steel, with a 640 x 512 sensor, temperature measurement alarms and line crossing, intrusion and region entrance and exit detection. The DS-2781ZJ-X(OS)/316L junction box has ATEX and IECEx certification for the same zones, a 316L stainless steel body and a preinstalled 12 VDC, 2 A power adaptor.

Corrosive and coastal sites

The DS-2XC6047G0-LS is a 4 MP ColorVu bullet camera from the Anti-Corrosion series, in a polymer housing with C5 / NEMA 4X protection and IP68. The DS-2XC6047G0-LS has an F1.0 lens for colour images down to 0.001 Lux, white supplement light up to 40 m, and PoE or 9–36 VDC power.

Body-worn recording

The DS-MCW407/32G/GLE(D) body-worn camera records Full HD to 32 GB of built-in storage, with a 3,220 mAh battery rated for around 11 hours of recording at 1080p, IR and white-light illumination, a 2.0" colour display and 2 m drop resistance.

Off-grid power

For solar or off-grid IP camera sites, the DS-2FSCH30 is a 30 Ah lithium backup battery pack, 10.8 V nominal, with a built-in MPPT solar controller and an integrated heater for cold weather. Its aluminium alloy enclosure is IP68 rated to 1.5 m for 72 h.

ModelTypeHazard ratingKey figure
DS-2XE6025G0-I2 MP bullet cameraATEX/IECEx, IK08Infrared to 30 m
DS-2TD2568T-15/G0/T1YBi-spectrum thermal bullet640 x 512 sensor
DS-2XC6047G0-LS4 MP ColorVu bulletC5 / NEMA 4XWhite light to 40 m
DS-2781ZJ-X(OS)/316LJunction boxATEX/IECEx12 VDC, 2 A out
DS-MCW407/32G/GLE(D)Body-worn camera2 m drop resistance32 GB
DS-2FSCH30Solar backup batteryIP68, heater for cold weather30 Ah

Related categories

See more in Hikvision CCTV cameras, weatherproof models in Hikvision IP66 cameras and heat-sensing models in Hikvision thermal cameras. Record with Hikvision NVRs.

Frequently asked questions

What is an IP68 camera?

An IP68 camera is a camera whose housing is dust-tight and can withstand continuous immersion in water under conditions the maker sets. The rated depth and duration vary by model, so check them before using a camera under water. These cameras suit coastal, washdown and submerged sites. The range here includes IP68 bullet cameras and stainless steel junction boxes.

What is a stainless steel CCTV camera used for?

A stainless steel CCTV camera is used where ordinary housings would corrode, such as coastal sites, chemical plants and food processing areas. Marine-grade stainless steel typically resists salt spray and cleaning chemicals better than a painted housing. Some models are also rated for use under water, so check the depth rating for submerged installs. The range here includes stainless steel bullet cameras.
