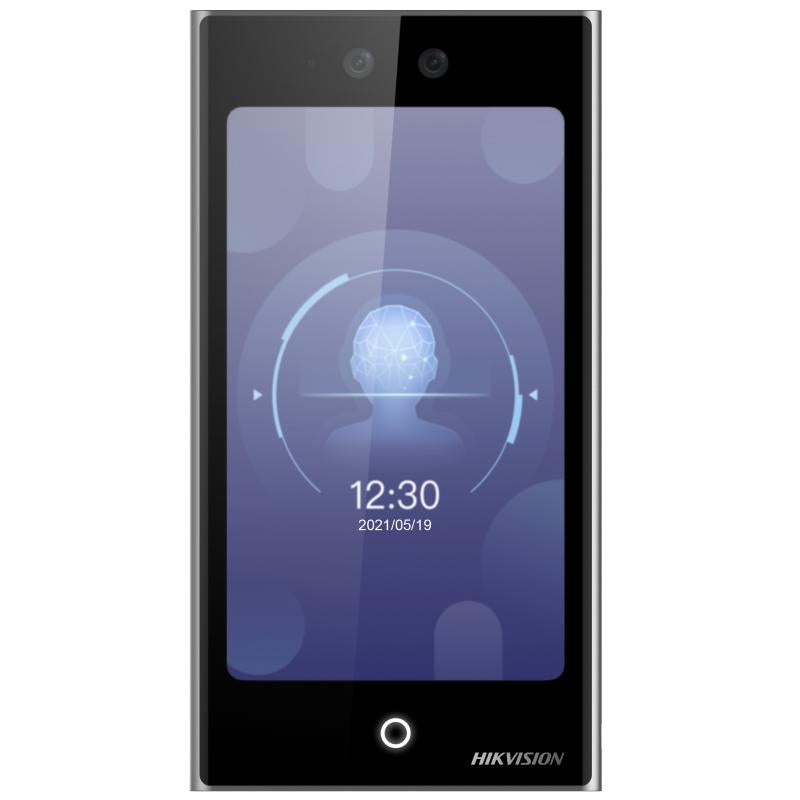

Hikvision DS-K1T673DWX-PROE1 Pro Face Access Terminal, 7-inch Touch Screen, IP68, IK07
About this product
The Hikvision DS-K1T673DWX-PROE1 is a Pro Face Access Terminal with a 7-inch LCD touch screen and a 2 Mega pixel wide-angle lens, for face and card access control at a door. It recognises faces at 0.3 to 3 m in less than 0.2 s per person with an accuracy rate of ≥ 99%, reads M1, Felica and DESfire cards, and carries an IP68, IK07 protective level.
Key features
- 7-inch capacitive IPS touch screen, resolution 600 × 1024
- Face recognition distance 0.3 to 3 m, accuracy rate ≥ 99%
- Single person and multiple people (Up to 5 people) recognition
- Built-in M1, Felica and DESfire card reading module, card reading distance 0 to 3 cm
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity and 150,000 event capacity
- Face mask detection and face anti-spoofing
- PoE (IEEE802.3at) or 12 VDC to 24 VDC, 2 A power supply
- Wi-Fi 2.4 G (802.11b/g/n) and 1 RJ-45 10/100/1000 M network interface
Frequently asked questions
Can the DS-K1T673DWX-PROE1 be powered over PoE?
Yes. PoE is supported to IEEE802.3at. It also takes a 12 VDC to 24 VDC, 2 A power supply.
Which cards does it read?
It reads M1 card, Felica card and DESfire card, with a card reading distance of 0 to 3 cm.
How many people can it recognise at once?
It supports single person and multiple people recognition, up to 5 people.
What protective level and working conditions is it rated for?
It has an IP68, IK07 protective level, a working temperature of -30 °C to 60 °C and working humidity of 0 to 90% (no condensing).
Which door hardware can be wired to it?
It has 1 lock control, 1 exit button, 1 door contact input, 2 alarm inputs, 1 alarm output, 1 RS-485 (OSDP protocol version V2.1.7) and 1 Wiegand (Hik 26bit, Hik 34bit).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K1T673DWX-PROE1 |
| Manufacturer Part Number (MPN) | DS-K1T673DWX-PROE1 |
| Operating System | Linux |
| Screen Size | 7 inch |
| Operation Method | Capacitive touch screen |
| Display Type | IPS |
| Display Resolution | 600 × 1024 |
| Camera | 2 Mega pixel wide-angle lens |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Network Interface | 1 RJ-45, 10/100/1000 M self-adaptive |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Alarm Input | 2 |
| Alarm Output | 1 |
| Tamper | 1 |
| RS-485 | 1 RS-485. Supports OSDP protocol version V2.1.7, Baud 19200 |
| Wiegand | 1 Wiegand (Hik 26bit, Hik 34bit) |
| USB | 1 (For Module) |
| Audio Output Interface | 1 (3.5 mm) |
| PoE | Support, IEEE802.3at |
| Face Capacity | 10,000 |
| Fingerprint Capacity | 10,000 (With fingerprint module) |
| Card Capacity | 50,000 |
| Event Capacity | 150,000 |
| Face Recognition Distance | 0.3 to 3 m |
| Face Recognition Accuracy Rate | ≥ 99% |
| Face Recognition Duration | ＜ 0.2 s per person |
| Card Type | M1 card; Felica card; DESfire card |
| Card Reading Distance | 0 to 3 cm |
| Power Supply | 12 VDC to 24 VDC, 2 A |
| Power Output | DC12 V, 0.5 A |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 0 to 90% (no condensing) |
| Protective Level | IP68, IK07 |
| Dimensions | 110.5 mm × 209.2 mm × 24 mm |
| Net Weight | 0.57 kg |
| Protocols | ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6) |
| SIP servers | ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio |
