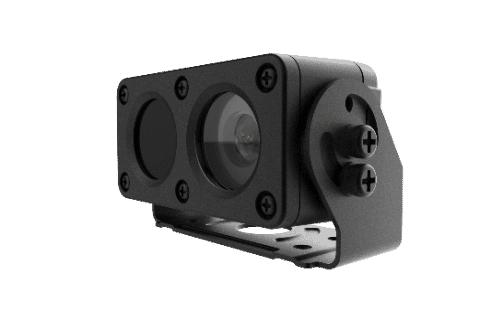

Hikvision AE-VC253T-IT(2.1MM)(MIRROR) Square Analog Camera, 1080P, IP68
About this product
The Hikvision AE-VC253T-IT(2.1MM)(MIRROR) is a square analog camera with a 2.1 mm fixed focal lens and up to 1080P resolution, sending TVI video through an aviation plug. It supports left & right mirror mode and auto electronic day & night switching, has an IR distance of 15m, and carries an IP68 protection level.
Key features
- Up to 1080P resolution (1920×1080) at 1080P@25 fps
- Supports left & right mirror mode
- IR distance of 15m, with 0 lux with IR
- 2.1 mm fixed focal lens: horizontal FOV 98°, diagonal FOV 125°
- TVI video output on a 1 Vpp composite output (aviation plug)
- IP68 protection level and a metal camera body
- 9 to 16 V DC power supply, max. 2.5 W
Frequently asked questions
What power does the AE-VC253T-IT(2.1MM)(MIRROR) need?
A 9 to 16 V DC power supply, with a power consumption of max. 2.5 W.
Does it see in the dark?
Yes. The IR distance is 15m, and it reaches 0 lux with IR.
Can the image be mirrored?
Yes. It supports left & right mirror mode.
Does it record audio?
No. It has no built-in microphone, no built-in speaker and no audio.
How does it connect?
Through a 1 Vpp composite output on an aviation plug (1: video, 2: empty, 3: power, 4: ground), carrying TVI video.
What field of view does the 2.1 mm lens give?
Horizontal FOV 98°, vertical FOV 81° and diagonal FOV 125°.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | AE-VC253T-IT(2.1MM)(MIRROR) |
| Manufacturer Part Number (MPN) | AE-VC253T-IT(2.1MM)(MIRROR) |
| Case Type | Square camera |
| Sensor | Progressive Scan CMOS |
| Resolution | 1920×1080 |
| Min. Illumination | 0.1 lux @ (F1.2, AGC ON), 0 lux with IR |
| Lens Type | Fixed focal lens, 2.1 mm |
| FOV (2.1 mm) | Horizontal FOV 98°, vertical FOV 81°, diagonal FOV 125° |
| Lens Mount | M12 |
| IR Distance | 15m |
| Shutter Speed | 1/25 s to 1/50,000 s |
| P/N | P (Default format is PAL and support switching to NTSC) |
| WDR | 85dB |
| Day & Night | Electronic |
| Frame Rate | 1080P@25 fps |
| SNR | 42 dB |
| Video Output | TVI |
| Built-in Microphone | No |
| Built-in Speaker | No |
| Audio | No |
| Interface Style | 1 Vpp Composite Output (aviation plug); 1: video, 2: empty, 3: power, 4: ground |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 2.5 W |
| Camera Material | Metal |
| Camera Dimension | 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64") |
| Startup and Operating Conditions | -40 °C to 75 °C (-40 °F to 167 °F), 90% |
| Protection Level | IP68 |
