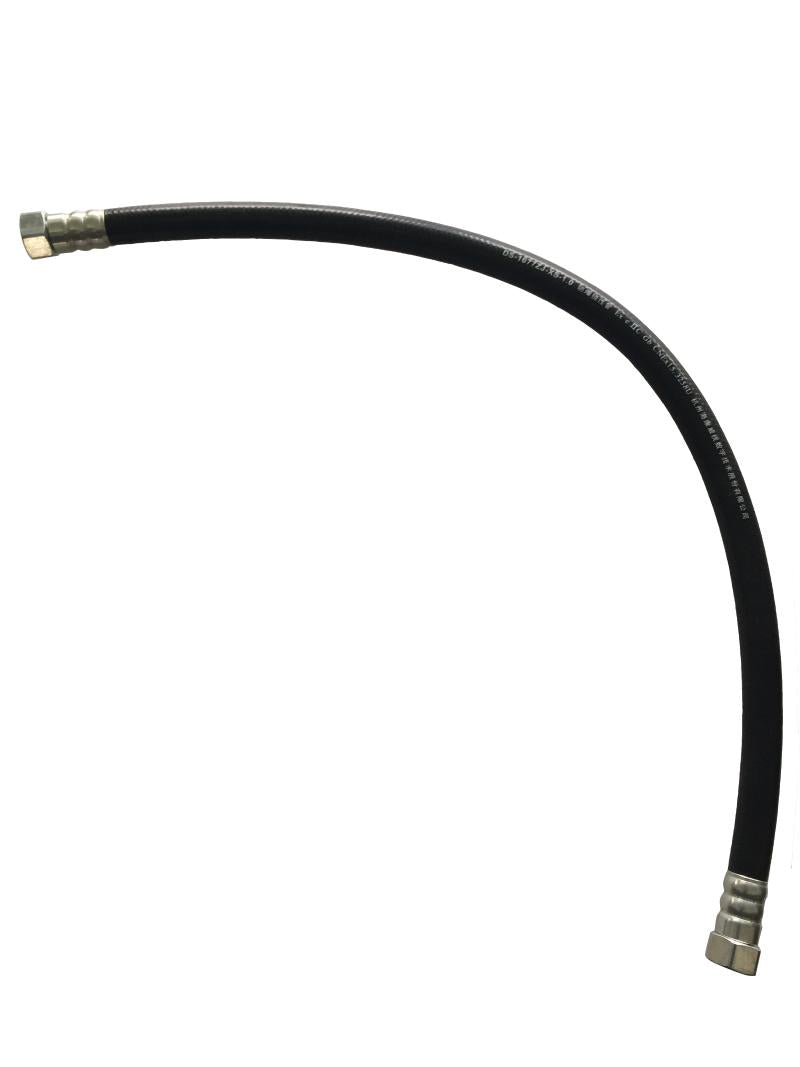

Hikvision DS-1677ZJ-XS-1.0(DY) Flexible Conduit, Ø25 mm × 1000 mm, IP68
Save £19.17
About this product
The Hikvision DS-1677ZJ-XS-1.0(DY) is a flexible conduit for cable protection in explosive environments. It has an NBR and braided steel wire body, a 316L stainless steel connector and a G-3/4 conduit thread, measures Ø25 mm × 1000 mm and is rated IP68.
Key features
- For cable protection in explosive environments
- Body: NBR, braided steel wire
- Connector: 316L stainless steel
- G-3/4 conduit thread
- IP68 ingress protection
- Ø25 mm × 1000 mm (0.98" × 39.37")
Frequently asked questions
What is the DS-1677ZJ-XS-1.0(DY) used for?
It is a flexible conduit for cable protection in explosive environments.
What thread does the conduit have?
A G-3/4 conduit thread.
How long is the conduit?
The dimension is Ø25 mm × 1000 mm (0.98" × 39.37").
What is it made of?
The body is NBR with braided steel wire, and the connector is 316L stainless steel.
What conditions is it rated for?
It has IP68 ingress protection and operating conditions of -40°C to +80°C (-40°F to 176°F), 95%RH or less (non-condensing).
Technical Details
Specifications
Brand
Hikvision
Model
DS-1677ZJ-XS-1.0(DY)
Manufacturer Part Number (MPN)
DS-1677ZJ-XS-1.0(DY)
Material
Body: NBR, braided steel wire; Connector: 316L stainless steel
Dimension
Ø25 mm × 1000 mm (0.98" × 39.37")
Conduit Thread
G-3/4
Ingress Protection
IP68
Operating Conditions
-40°C to +80°C (-40°F to 176°F), 95%RH or less (non-condensing)
Weight
Approx. 0.7 kg (1.54 lb.)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-1677ZJ-XS-1.0(DY) |
| Manufacturer Part Number (MPN) | DS-1677ZJ-XS-1.0(DY) |
| Material | Body: NBR, braided steel wire; Connector: 316L stainless steel |
| Dimension | Ø25 mm × 1000 mm (0.98" × 39.37") |
| Conduit Thread | G-3/4 |
| Ingress Protection | IP68 |
| Operating Conditions | -40°C to +80°C (-40°F to 176°F), 95%RH or less (non-condensing) |
| Weight | Approx. 0.7 kg (1.54 lb.) |
