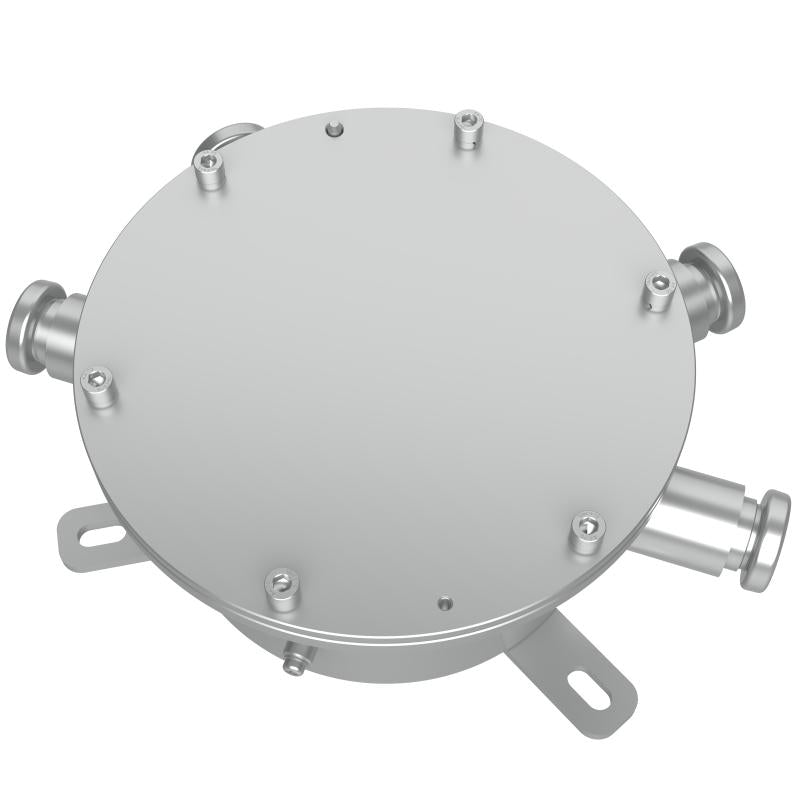

Hikvision DS-2XE2705-M04(316L) 316L Explosion-Proof Junction Box, 4 Cable Outlets, IP68
About this product
The Hikvision DS-2XE2705-M04(316L) is a 316L Explosion-Proof Junction Box with 4 cable outlets, made from stainless steel 316L with an anti-corrosion surface spray treatment. It is for explosion-proof installations, with ATEX and IECEx certified explosion-proof performance and IP68 ingress protection.
Key features
- Stainless steel 316L with anti-corrosion surface spray treatment
- 4 cable outlets
- ATEX and IECEx certified explosion-proof performance
- Explosion-proof protection: Ex db ⅡC T6 Gb/Ex tb ⅢC T80°C Db
- IP66 and IP68 protection (IEC 60529-2013)
- Startup and operating conditions: -40 °C to 60 °C (-40 °F to 140 °F)
Frequently asked questions
How many cable outlets does the Hikvision DS-2XE2705-M04(316L) have?
It has 4 cable outlets.
What is the DS-2XE2705-M04(316L) made of?
Stainless steel 316L with anti-corrosion surface spray treatment.
Is the DS-2XE2705-M04(316L) explosion-proof certified?
Yes. It has ATEX and IECEx certified explosion-proof performance, and its explosion-proof protection is Ex db ⅡC T6 Gb/Ex tb ⅢC T80°C Db.
What IP rating does the DS-2XE2705-M04(316L) have?
IP66: IEC 60529-2013 and IP68: IEC 60529-2013.
What temperature range is the DS-2XE2705-M04(316L) rated for?
Startup and operating conditions are -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing).
What size is the DS-2XE2705-M04(316L)?
It measures 323.4 mm × 219.5 mm × 109.1 mm (12.73" × 8.64" × 4.30").
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2XE2705-M04(316L) |
| Manufacturer Part Number (MPN) | DS-2XE2705-M04(316L) |
| Material | stainless steel 316L |
| Surface treatment | Anti-corrosion surface spray treatment |
| Cable outlets | 4 |
| Dimension | 323.4 mm × 219.5 mm × 109.1 mm (12.73" × 8.64" × 4.30") |
| Startup And Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP66: IEC 60529-2013, IP68: IEC 60529-2013 |
| Explosion-Proof Protection | Ex db ⅡC T6 Gb/Ex tb ⅢC T80°C Db |
| Explosion-proof certification | ATEX and IECEx certified |
Hikvision DS-2XE2705-M04(316L) 316L Explosion-Proof Junction Box, 4 Cable Outlets, IP68
