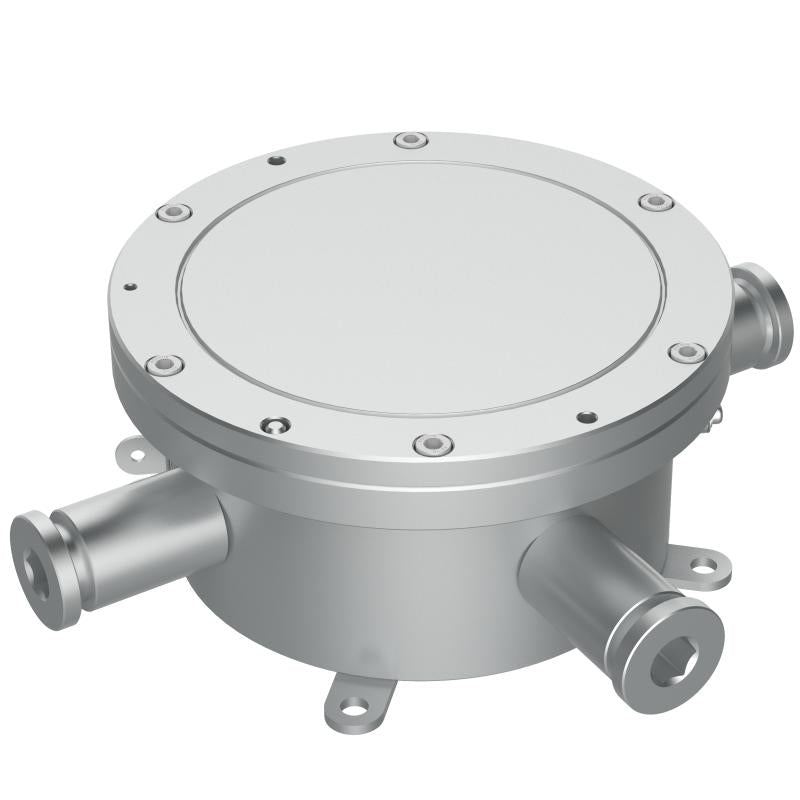

Hikvision DS-2780ZJ-X(OS)/316L Explosion-Proof Junction Box, 316L Stainless Steel, IP68
About this product
The Hikvision DS-2780ZJ-X(OS)/316L is a junction box in stainless steel 316L with anti-corrosion surface spray treatment and ATEX and IECEx certified explosion-proof performance. It has four cable outlets (M25 × 1.5) and IP68 ingress protection, and is rated for hazardous areas Zone 1, Zone 2, Zone 21 and Zone 22.
Key features
- Stainless steel 316L with anti-corrosion surface spray treatment
- ATEX and IECEx certified explosion-proof performance
- Hazardous area: Zone 1, Zone 2, Zone 21 and Zone 22
- 4 cable outlets, M25 × 1.5
- IP68 ingress protection
- Operating conditions -40°C to +60°C, 95%RH or less (non-condensing)
- Wire gauge No. 22 to No. 12 AWG, max. 3.294 mm2
Frequently asked questions
Which hazardous areas is the Hikvision DS-2780ZJ-X(OS)/316L rated for?
Zone 1, Zone 2, Zone 21 and Zone 22, with ATEX and IECEx certified explosion-proof performance.
What is the DS-2780ZJ-X(OS)/316L made of?
Stainless steel 316L with an anti-corrosion surface spray treatment.
How many cable entries does the junction box have?
4 cable outlets, M25 × 1.5.
Which devices can the DS-2780ZJ-X(OS)/316L be used with?
A device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply.
What wire sizes does it take?
Wire gauge No. 22 to No. 12 AWG, max. 3.294 mm2.
What are the operating conditions and ingress rating?
-40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing), with IP68 ingress protection.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2780ZJ-X(OS)/316L |
| Manufacturer Part Number (MPN) | DS-2780ZJ-X(OS)/316L |
| Material | Stainless steel 316L |
| Surface treatment | Anti-corrosion surface spray treatment |
| Explosion protection | ATEX and IECEx certified explosion-proof performance |
| Dimension | 272 mm × 272 mm × 96.8 mm (10.7" × 10.7" × 3.8") |
| Weight | Approx. 6.4 kg (14.1 lb.) |
| Cable Outlet | 4 cable outlets, M25 × 1.5 |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing) |
| Hazardous Area | Zone 1, Zone 2, Zone 21, and Zone 22 |
| Ingress Protection | IP68 |
| Interface | 110 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported) |
| Wire Gauge | No. 22 to No. 12 AWG, max. 3.294 mm2 |
| Applicable Device | Device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply |
