B-Tech Mounts

B-Tech makes mounts for flat screens, displays and AV equipment, and this page brings them together: low-profile and fixed wall mounts, tilting mounts, single and double arm mounts, pop-out mounts for video walls and signage, portrait mounts, display stands and a floor-to-wall mount, plus screen mounts with hidden equipment trays and loudspeaker brackets. Choose by the screen’s VESA pattern and weight first, then by how far it needs to tilt, swivel or pull out.

Choosing B-Tech Mounts

Start with the screen’s weight and the VESA hole pattern on its back, then decide how much movement you need.

Fixed and low-profile mounts

A fixed mount keeps the screen close to the wall. The BT7510/B sits just 15mm from the wall with a load capacity of 20kg, and the BT8441/B mounts screens of up to 80kg at 30mm with a universal interface for patterns up to 455 x 400mm. The Elements BT5442/B holds displays of up to 70kg at a depth of 27mm and has a pull-to-release locking cord.

Tilting and arm mounts

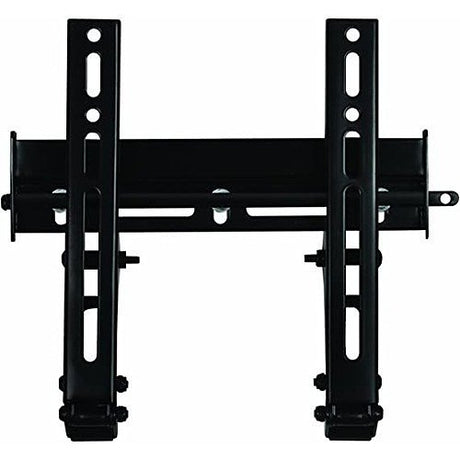

Tilting mounts angle the screen towards the viewer. The BT8431-PRO uses a Torsion-Tilt mechanism for tool-less adjustment of up to +/-15°, and the BTV501 has 5 fixed tilt positions. Arm mounts pull the screen out and turn it: the BT7513/PB double arm has three swivel points, at 180° at the wall, 360° at the pivot and 240° at the interface, and the BT8228/B twin arm repositions displays of up to 125kg with UltraGlide Tilt.

Video walls, signage and pop-out mounts

Pop-out mounts let the screen be pulled forward for servicing. The BT8301/B is a modular videowall mount with tool-less micro-adjustment, and the heavy-duty BT8310xL takes screens of up to 125kg in landscape or portrait. For portrait signage, the BT8322/B mounts a screen just 36mm from the wall.

NeedExampleDetail
Small screen with tiltBT7511/B+17° / -10° tilt, OWLS levelling
Medium screen, close to the wallBTV50040kg, 20mm from the wall
Two screens for video callsBT8415/BBAdjustable VC shelf

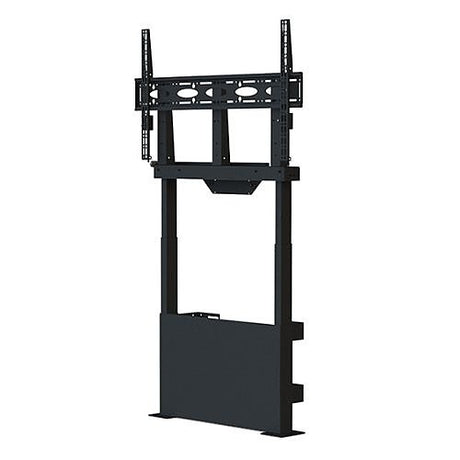

Interactive touchscreenBT8569/BElectronic height adjustment, 100kg
AV kit behind the screenBT7883Slide-out tray, padlock option

Stands and specialist mounts

Mode-AL display stands such as the 1.4m BT8700B and the 2m BT8701 bolt to the floor and suit boardrooms and conference rooms. The BT7886/B cradle holds a Mersive Solstice Pod on a wall or desk, and the BT77 loudspeaker mounts are supplied in pairs for speakers of up to 25kg.

Related categories

Screen mounts from other makers are in TV wall mounts and brackets. B-Tech ceiling and pole systems have their own pages, B-Tech ceiling mounts and B-Tech pole mounts, and the whole B-Tech range is listed together. For screens see digital signage and commercial displays, and for AV equipment the audio and visual department.

Frequently asked questions

How do I know if a B-Tech mount fits my screen?

Check the VESA hole pattern on the back of the screen and its weight, then pick a mount rated for that pattern and that weight. The BT7523/B fits patterns of 75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm. For larger screens, the BT8441/B accommodates patterns up to 455 x 400mm and weights up to 80kg, and the BT8442 patterns up to 656 x 400mm.

Should I choose a fixed, tilting or arm mount?

Choose a fixed mount for the slimmest fit, a tilting mount to angle the screen, and an arm mount when it must turn or pull away from the wall. The BTV520/B mounts a screen just 20mm from the wall. The BTV511 has 5 fixed tilt positions up to +15°, and the BTV513/B is a double arm with three swivel points.

Is there a B-Tech mount for very large or heavy screens?

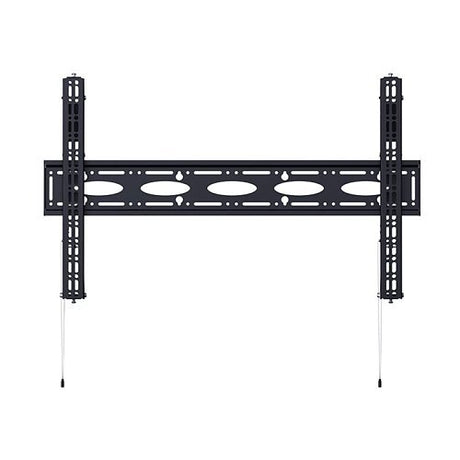

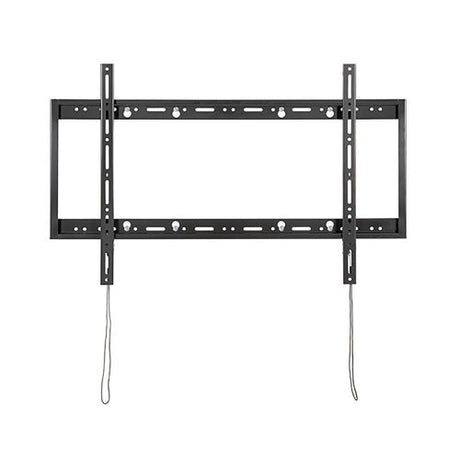

Yes, several are built for extra-large displays. The BT9910 supports 130kg when wall mounted and has 4 tilt positions, for screens of 65" and over. The BT9901/B takes loads up to 100kg for heavy touchscreens, and the BT8310xL pop-out mount handles screens of up to 125kg in landscape or portrait.

What is a pop-out wall mount for?

A pop-out mount lets the screen be pulled forward for servicing, which matters when it sits in a wall recess or a video wall. The BT8301/B has a pop-out system and tool-less micro-adjustment for aligning screens. The BT9921 and BT9922/B are dual rail pop-out mounts for extra-large signage, and the BT9926/B has a push-to-release soft pop-out.

Can a B-Tech mount go on a stud wall?

Yes, some are rated for stud walls. The BTV500 takes screens up to 42" and 40kg, and the BTV500, BTV511 and BTV520/B are rated for concrete, brick or stud walls. The BT8421B is suitable for concrete or brick walls.

Can I mount a screen in portrait?

Yes, with a mount made for it. The BT8322/B holds signage screens of up to 65" in portrait with VESA patterns up to 400 x 600, and the BT9923/B mounts 21:9 ultrawide displays in portrait using adaptor arms with vertical VESA fixings up to 1500mm. The BT7513/PB double arm handles portrait and landscape orientations.
