Nittan Evolution is an analogue addressable fire alarm system. This page has the Evolution 1 single-loop control panel, optical, heat and multi-sensor detectors, an optical detector with a built-in sounder and its beacon base, addressable sounders and sounder beacons, a manual call point with a hinged clear cover, input/output modules with a surface box, and the EV-AD2 programmer kit for setting device addresses.

Choosing Nittan Products

Control panel

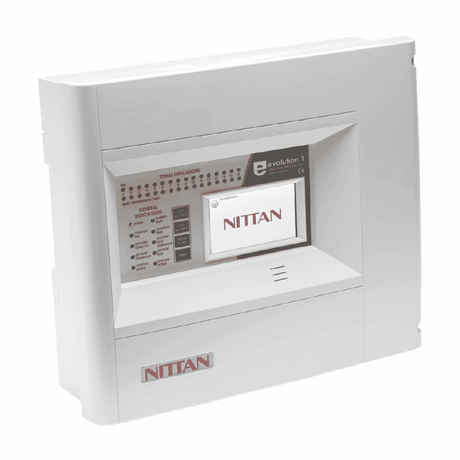

The Evolution 1 (F12-83101) is a single-loop analogue addressable fire alarm control panel with a 4.3" colour touch-screen, supporting up to 254 devices on its loop and networking of up to 16 panels. The F12-83101 has battery backup for up to 2 × 7.0 Ah SLA batteries.

Detectors

The EV-P is a low profile photoelectric smoke detector for Nittan FSK protocol panels, compliant with EN54-7, with an Omniview 360° LED. The EV-H-A1R is a Class A1R heat detector certified to EN54-5, with a thermistor giving a static response between 54°C and 65°C. The EV-PH multi-sensor houses optical smoke and 54°C A1R heat sensors together, to EN54-5 and EN54-7, and processes both signals to minimise false alarms.

Sounders, beacons and call points

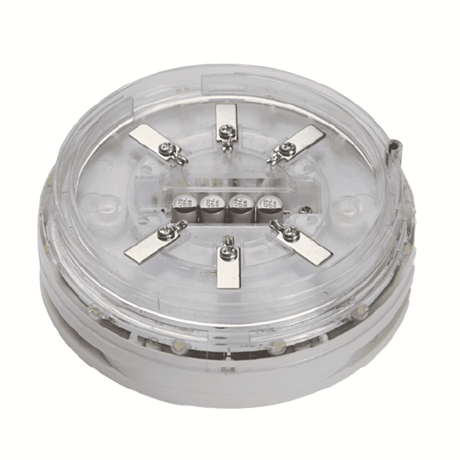

The EV-PYS optical detector has an integrated sounder of about 88dB(A) and needs one address, and the EV-PYSVAD beacon base it drives adds 12 white LEDs for EN54-23 Category C ceiling coverage on that single loop address. The EV-SDR sounder has 12 DIP-switch tones and is a stand-alone device, while the EV-SDR Base is a low profile ceiling sounder base for Evolution detectors. The EV-AV2 is a combined sounder and beacon, and the EV-HIOP-SB an IP65 high output sounder beacon with 32 selectable tones. The EV-MCP2-IP24 manual call point is IP24 rated for surface mounting and includes a backbox and wall plate, and the CI-NTN hinged clear cover fits EV-MCP2 call points.

Modules and tools

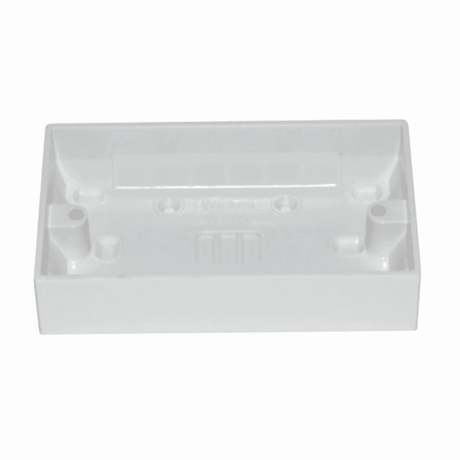

The EV-3IO is a loop powered module with three Class B inputs, one 5A relay at 240V AC, two 1A relays at 30V DC and an integral -ve short circuit isolator. The EV-2I1O has two Class B inputs and a 5A relay at 240Vac, and fits a standard UK 2 gang pattress box. The Nittan plastic surface box, 45 mm deep, takes double-gang EV modules where flush mounting is not possible, and the EV-AD2 kit is the handheld programmer for setting addresses.

ModelTypeStandard or rating
F12-83101Evolution 1 single-loop panel254 devices
EV-POptical smoke detectorEN54-7
EV-H-A1RA1R heat detectorEN54-5
EV-PHOptical and heat multi-sensorEN54-5, EN54-7
EV-PYSVADBeacon base for the EV-PYSEN54-23 Category C
EV-HIOP-SBHigh output sounder beaconIP65
EV-MCP2-IP24Manual call pointIP24

Related categories

See Nittan smoke detectors, Nittan heat detectors and Nittan sounders. See also manual call points, commercial fire alarm panels and fire and safety equipment.

Frequently asked questions

How many devices does the Nittan Evolution 1 panel support?

The Evolution 1 (F12-83101) supports up to 254 devices and up to 254 zones on its single loop. It is designed for Nittan Evolution protocol devices and supports full cause-and-effect programming on the panel or by PC. The F12-83101 can be networked into systems of up to 16 panels.

Can a Nittan sounder share an address with a detector?

Yes, with the EV-PYS. It is an optical detector with an integrated sounder that requires one address, and the EV-PYSVAD beacon base it drives keeps the combined assembly on a single loop address. The EV-SDR and EV-AV2, by contrast, are stand-alone devices that are not for use with a detector.

How are Nittan Evolution devices addressed?

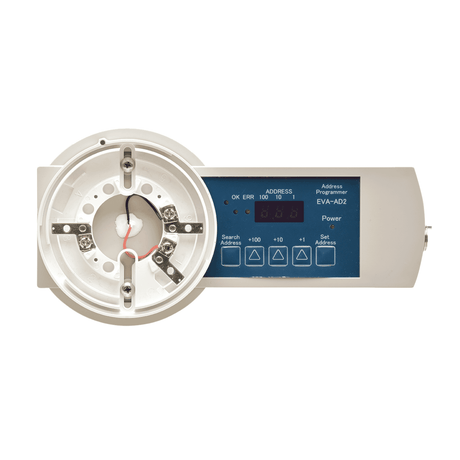

Devices such as the EV-PH, EV-SDR and EV-3IO are EEPROM addressed. The EV-AD2 kit is a handheld programmer for setting loop addresses on Evolution detectors, sounder/beacons and modules, and includes the EV-AVADAPT adapter for the EV-AV2 and EV-SDR sounder and beacon series and a universal programming lead. The EV-MCP2-IP24 call point is addressed by a DIL switch instead.

Can a Nittan input/output module release a fire door?

Yes. The EV-3IO and EV-2I1O both have a failsafe option for door release and an integral -ve short circuit isolator. The EV-3IO has three Class B inputs, a 5A relay rated at 240V AC and two 1A relays at 30V DC, and the EV-2I1O has two Class B inputs and a 5A relay at 240Vac.
