C-TEC Detectors

C-TEC detectors cover conventional and addressable fire detection, with smoke, heat and multi-sensor models. ActiV detectors such as the C4416 optical smoke detector and the C4403B heat detector sit alongside CAST and CAST-PRO detectors such as the CA416 and CP416, which work with C-TEC's XFP and ZFP addressable panels. Detector bases, a relay base and a CAST-PRO duct detector complete the page.

Choosing C-TEC Detectors

Start with the panel the detector will report to, then choose smoke, heat or multi-sensor detection and the matching base.

ActiV heat detectors

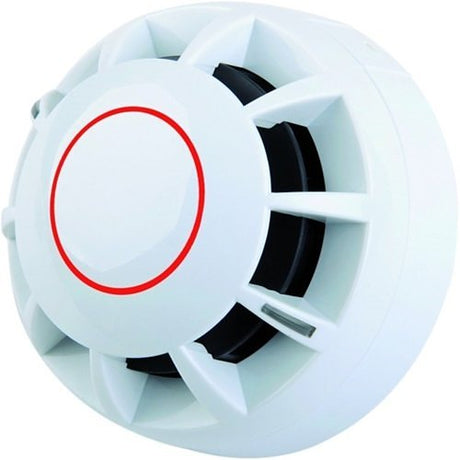

The C4403B is a Type B fixed-temperature heat detector set at 75°C and the C4403A2 a Class A2 fixed-temperature detector, while the C4403A1R alarms on a sudden rise in temperature or at a static temperature between 54°C and 65°C. All three are third-party certified to EN54-5 by Intertek and have two ultra-bright red LED strips. The C4403A2 suits virtually all known conventional fire alarm panels, including C-TEC's CFP, FP, MFP and EP203 ranges.

ActiV smoke and multi-sensor detectors

The C4416 optical smoke detector uses infrared light and a photodiode, is certified to EN54-7 by Intertek and has drift compensation. The C4414 multi-sensor combines smoke and heat analysis to tell fire types apart and reduce false alarms, which suits accommodation such as student housing. Both run from 6-33V DC.

ActiV diode base

The C4408D diode base is for systems that need active 'head out' end of line monitoring under BS 5839-1. The C4408D has an integrated locking mechanism and head removal tool, and accepts fire-rated cables up to 2.5mm in diameter. The C4403A1R and C4403A2 fit the C4408D diode base.

CAST and CAST-PRO addressable detectors

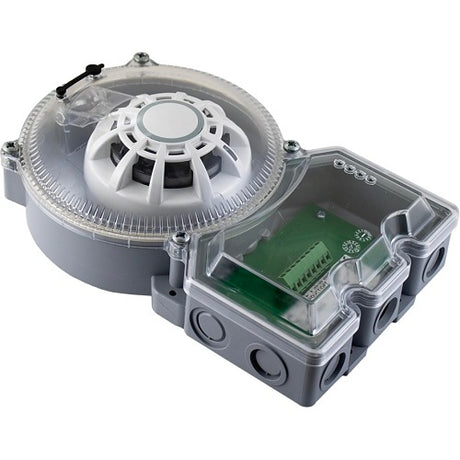

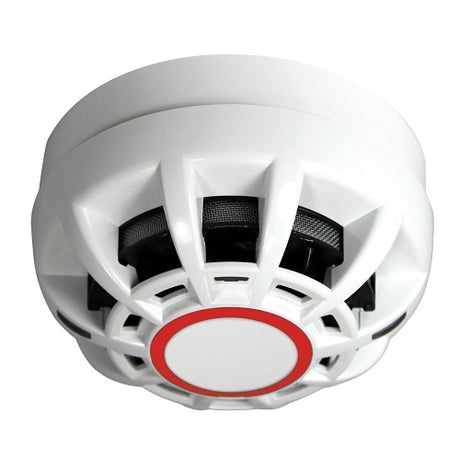

The CA416 is a CAST optical smoke detector with 0.16dB/m sensitivity, LPCB certified to EN54-7 and 17, and the CA414 is a programmable multisensor with settings for day/night and occupied/unoccupied conditions. The CAST-PRO CP416 optical smoke detector uses C-TEC's MASC and AFFIRM algorithms, and the CP402 heat detector can be programmed as an A1R, A2 or B detector. Each has an onboard short circuit loop isolator. The CPDUCT/OPT looks for smoke in air moving through ductwork, with EN 54-27:2015 approval pending.

CAST bases

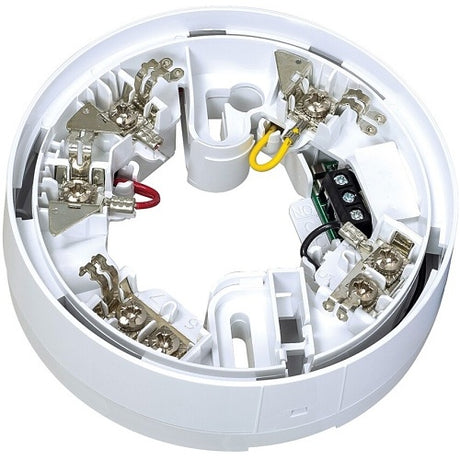

The CA408 is the base plate for C-TEC's CAST addressable detectors, with an integrated locking mechanism. The CA408R relay base switches up to 1 A at 24 Vdc from the detector's remote LED output, for uses such as door release.

DetectorRangeType
C4403BActiVHeat, Type B 75°C
C4416ActiVOptical smoke
CA416CASTOptical smoke
CP402CAST-PROHeat, A1R, A2 or B
CPDUCT/OPTCAST-PRODuct smoke

Related categories

See C-TEC fire panels, the full C-TEC products range, manual call points, fire detectors from other makers and fire and safety equipment.

Frequently asked questions

Which C-TEC detectors work with addressable panels?

The CAST and CAST-PRO detectors do. The CA414, CA416, CP402, CP416 and CPDUCT/OPT work with C-TEC's XFP and ZFP CAST protocol addressable fire panels, and each has an onboard short circuit loop isolator. The ActiV C4403A2, by contrast, suits virtually all known conventional fire alarm panels, including C-TEC's CFP, FP, MFP and EP203 ranges.

How does a detector work?

It senses smoke, heat or the two together and generates an alarm. The C4416 optical smoke detector uses infrared light and a photodiode to detect smoke, and the C4403A1R heat detector alarms on a sudden rise in temperature or at a static temperature between 54°C and 65°C. The C4403B detects heat at a fixed temperature of 75°C, while the C4414 multi-sensor combines smoke and heat analysis to discern fire types.

What is an optical smoke detector?

It is a smoke detector that uses light to sense smoke: the C-TEC ActiV C4416 optical smoke detector uses infrared light and a photodiode to detect smoke, is third-party certified to EN54-7 by Intertek and has drift compensation. The CAST CA416 is an analogue addressable optical smoke detector with 0.16dB/m sensitivity, and the CAST-PRO CP416 is a programmable optical smoke detector with two detection modes, normal and high sensitivity.
