C-TEC CPDUCT/OPT cast-pro duct detector
About this product
Please note: this is a non-returnable item (excluding faulty goods)

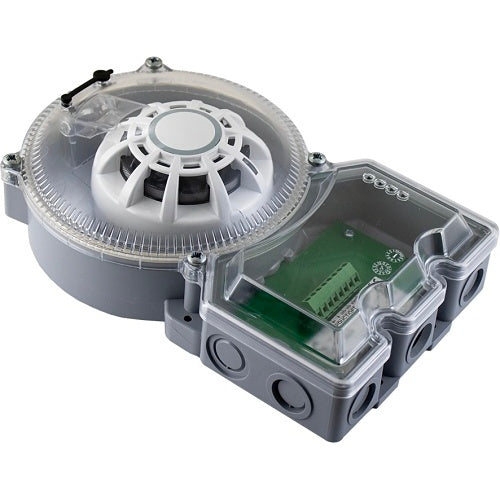

C-TEC CPDUCT/OPT is a cast-pro duct detector.
The C-TEC CPDUCT/OPT CAST-PRO Duct Detector is designed to detect the presence of smoke in air ducts, enhancing fire safety in ventilation systems. It is compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels, ensuring seamless integration into existing systems. The device can be installed horizontally or vertically on the top, bottom, or side of a duct, positioned away from interference sources such as heating, cooling, or humidity devices.
Featuring an onboard short circuit loop isolator and a typical quiescent current of 570uA at 40V DC, it supports efficient and reliable operation. Approval to EN 54-27:2015 is pending, with certification applicable to the kit’s CP416 detector.
Key features
- Looks for the presence of smoke in air moving through ductwork
- Compatible with C-TEC’s ZFP and XFP CAST protocol addressable fire panels
- Can be located horizontally or vertically on the top, bottom or side of a duct ideally well away from devices that could interfere with its operation (heating, cooling or humidity devices)
- Includes an onboard short circuit loop isolator
- 570uA typical quiescent current at 40V DC
- Approval to EN 54-27:2015 pending (certificates attached apply to the kit’s CP416 detector only)
Specifications
Power description
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CPDUCT/OPT |
| Product Type | Smoke Detector |
Power description
| Input Voltage | 22-40V DC |
|---|
Attributes
| Input Voltage | 22-40V DC |
|---|
