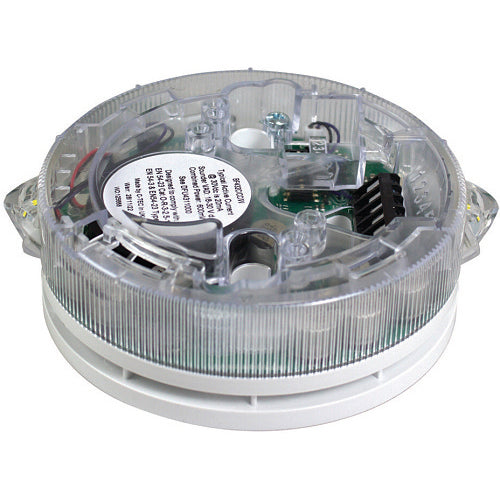

C-TEC CA459A/W detector base, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC CA459A/W is a detector base from the CAST range.
CAST' is the world's most-advanced 'distributed intelligence' fire alarm system protocol. Conceived, designed and realised by C-TEC, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels and field devices.
Key features
- LPCB certified to EN54-23 andamp- 17 and Kiwa Telefication andamp- DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Provides ‘O-R-3-2.5-18’ rated light distribution.
- Ideal for use in corridors (mount in a specific orientation for 2.5m width andamp- 18m length rated coverage). See VAD Coverage section below for further details.
- Onboard short-circuit loop isolator.
- 7mA typical alarm current (460µA typical quiscemt) at 27-40V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- White ceiling fixing plate andamp- detector spur wires included
If you are matching this to an existing installation, work from the CA459A/W part number rather than the description.
Specifications
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CA459A/W |
| Product Series | CAST |
Certifications
| Certifications & Standards | EN54-13, LPCB Certified to EN54-23 and 17 |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|
Power description
| Input Voltage | 27-40V DC |
|---|
Product information
| Mount Type | Ceiling Mount |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 27-40V DC |
|---|
