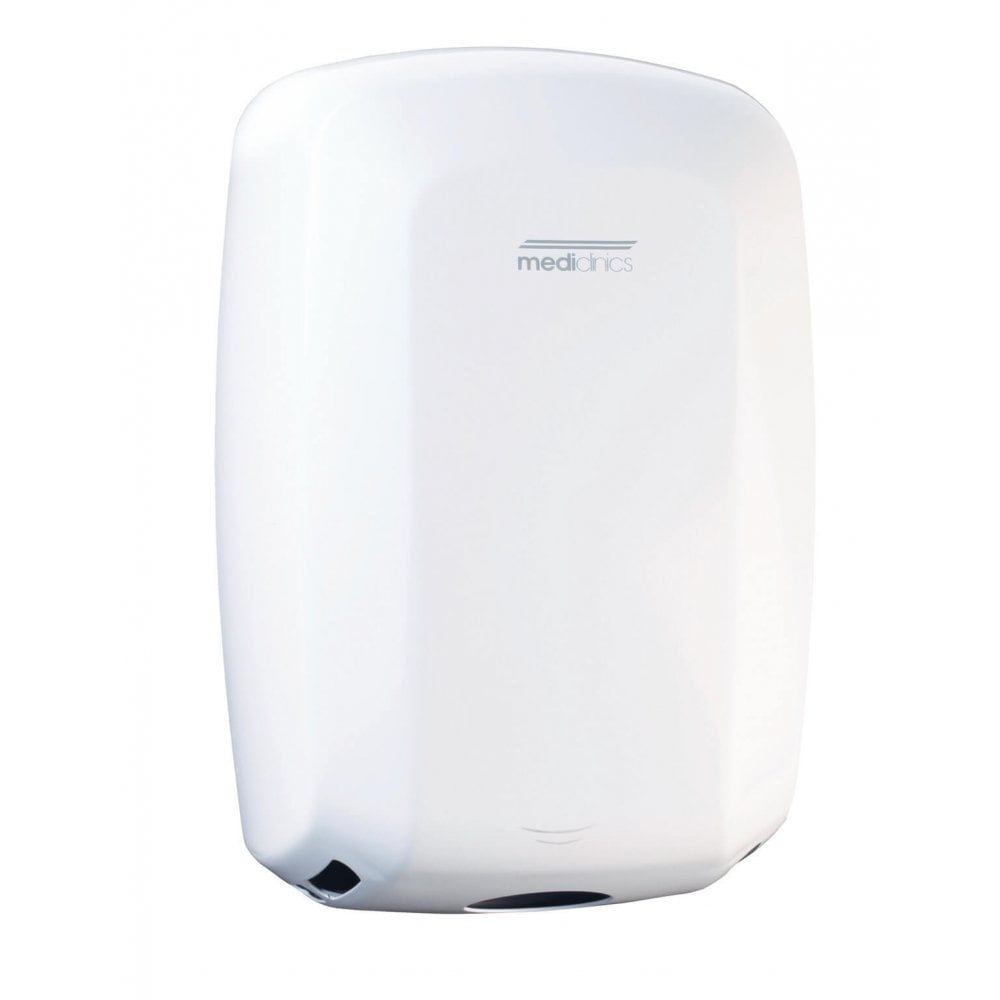

Mediclinics: M09A-I, Machflow Plus HEPA & Ioniser Hand Dryer, White
About this product
The Machflow Plus is one of the fastest performing hand dryers, robust and stylish, perfect for high traffic areas.
- Fast Dry Time: 10 - 15 Seconds
- Energy Efficient: Rated Power 0.42 - 1.5 kW
- Long Life Motor: Up to 500 uses per day
- Easy Installation: Plug-in system for convenience
- Air Quality: HEPA filter and ioniser included
Manufactured in Europe and comes with a 3-year guarantee. Ideal for mid to high traffic environments. Choose from classic finishes.
-
Download

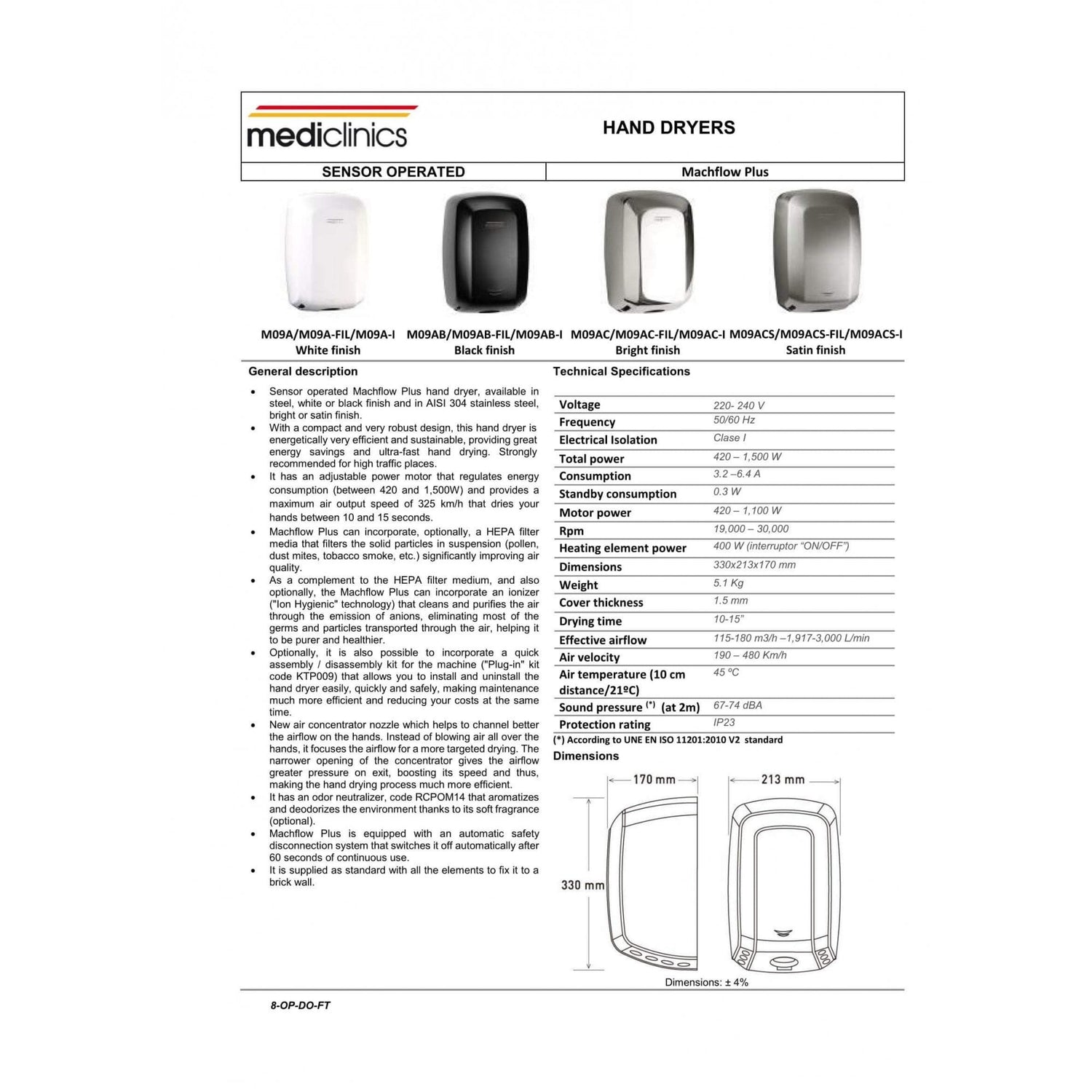

- Spec Sheet / Catalogue Page - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)

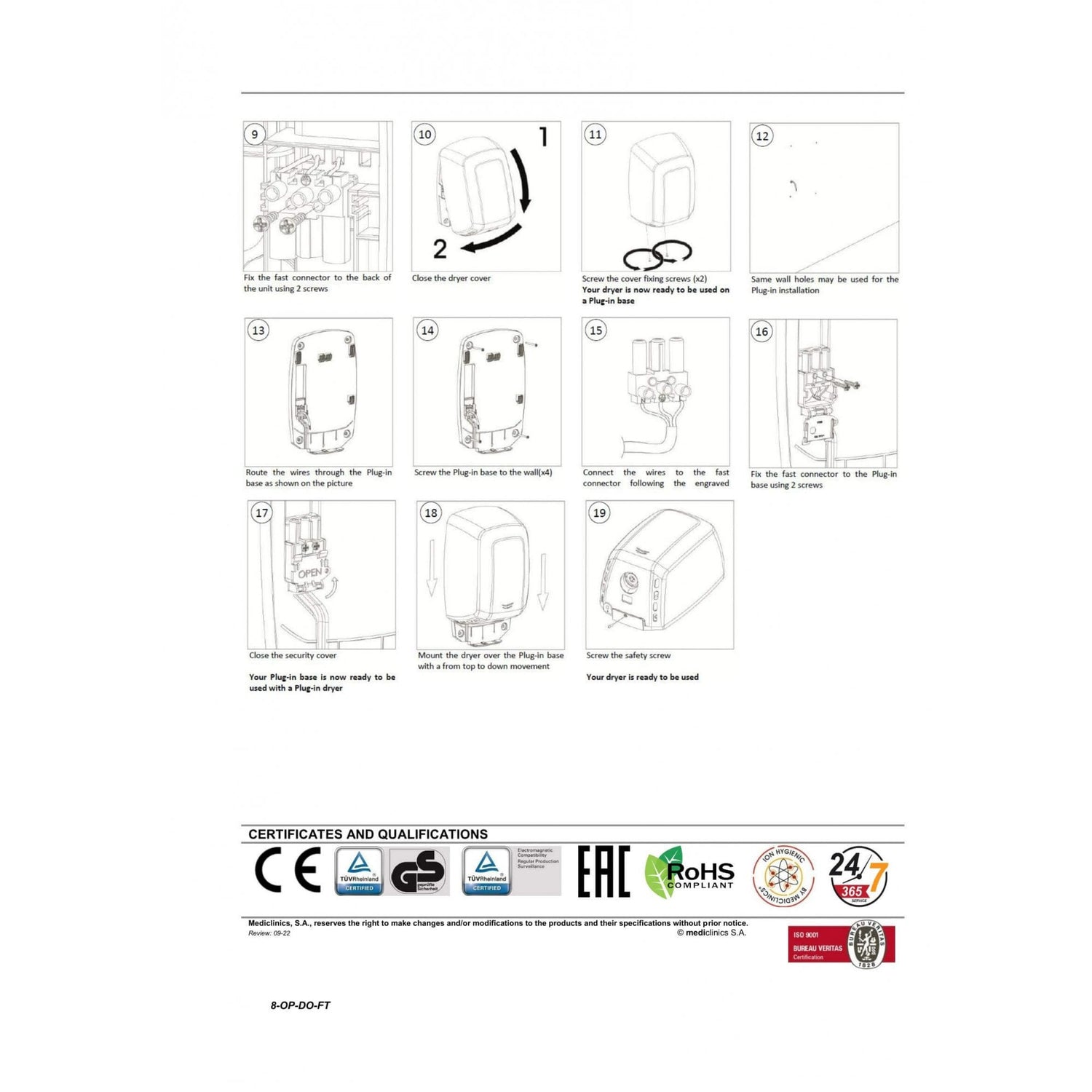

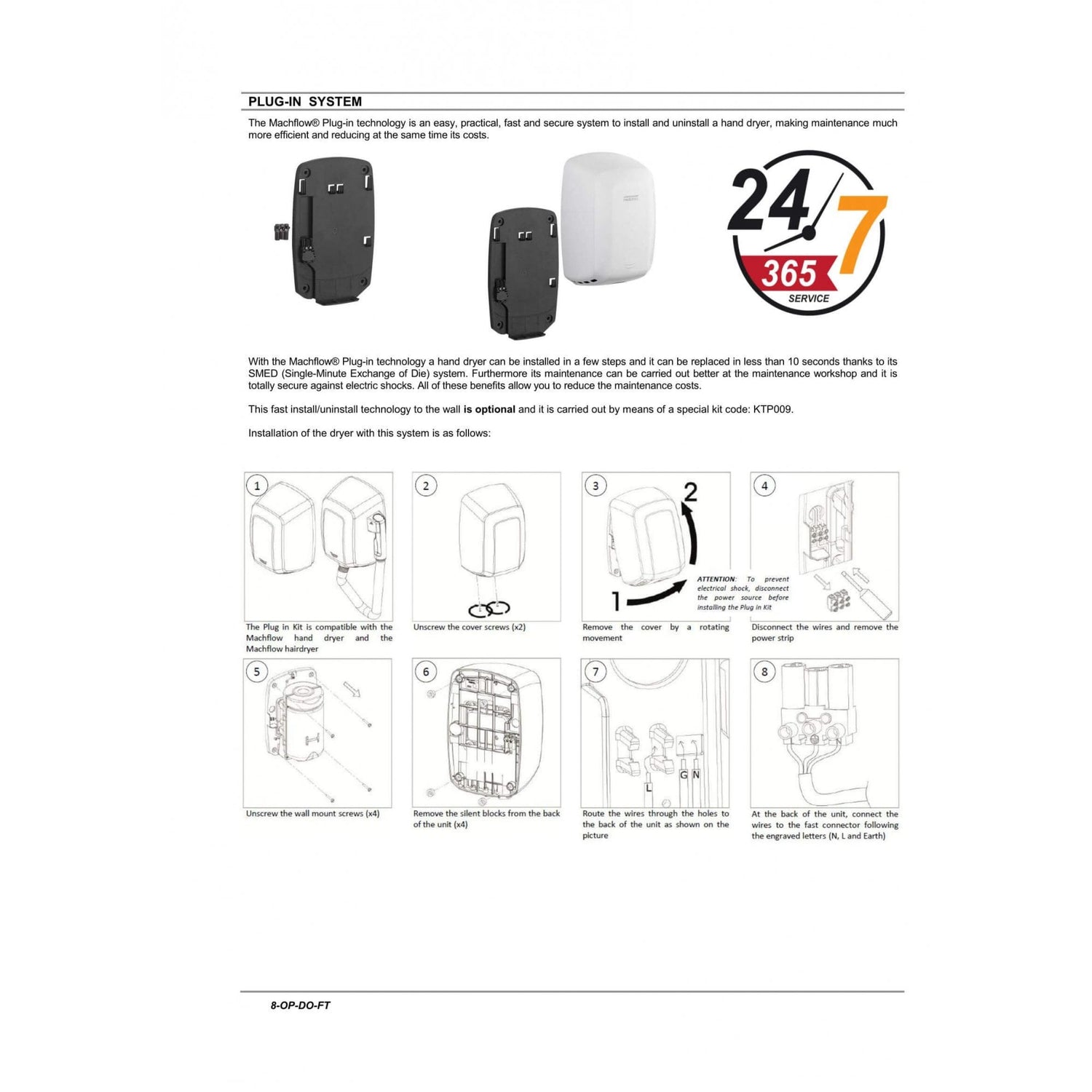

- Install and User Manual - Mediclinics Machflow Eco Hand Dryer (PDF)

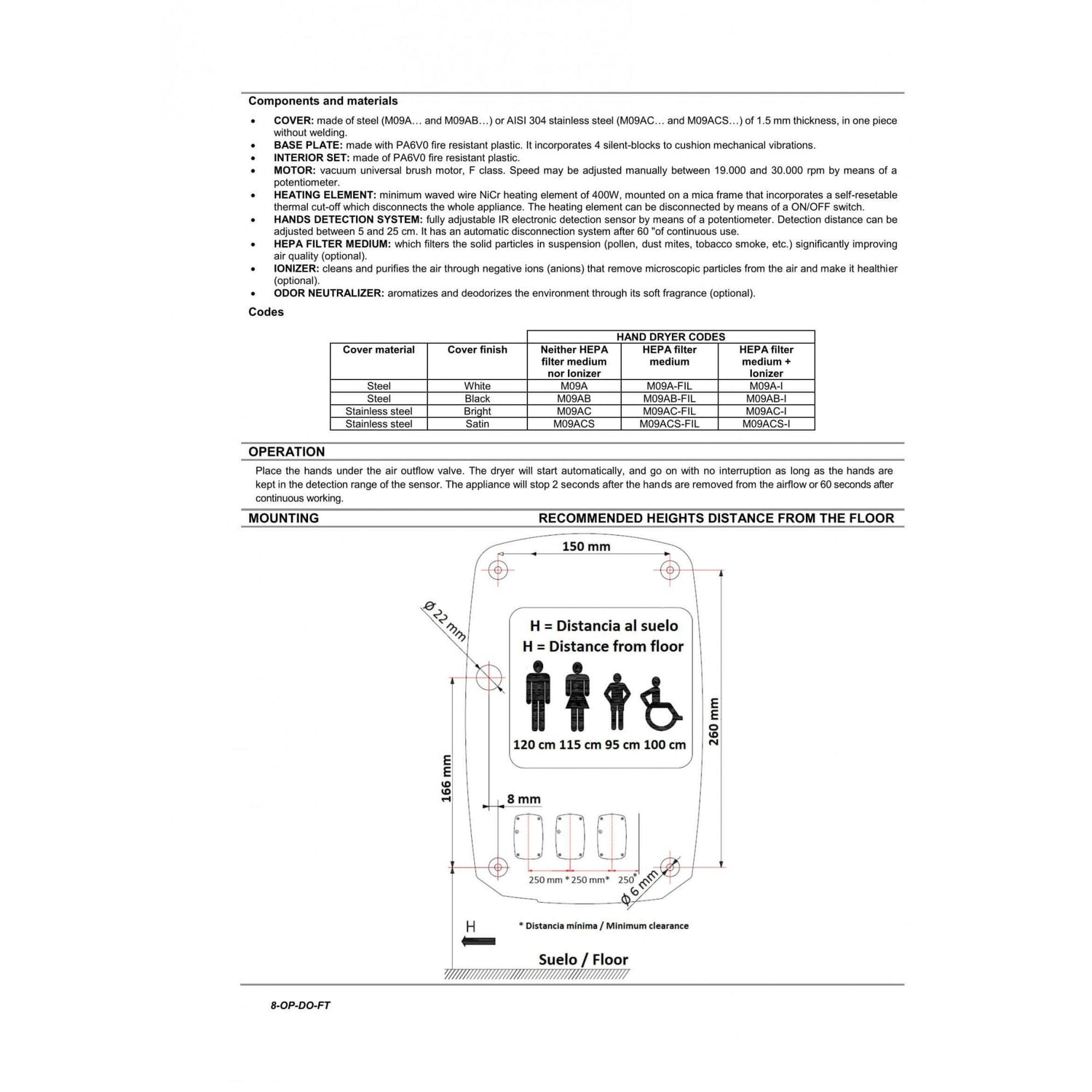

- Outline Drawing - Mediclinics Machflow Eco Hand Dryer (PDF)
- Troubleshooting guide - Mediclinics Machflow Eco Hand Dryer (PDF)
- Mediclinics Hand Dryers Brochure (PDF)
- Product Leaflet -Mediclinics Machflow Plus M09XX - 19XX (PDF)
- Catalogue Pages - Mediclinics Hand Dryers (PDF)
- ARCHID GSM File - Mediclinics Machflow Eco Hand Dryer White or Black Steel M09AXX (GSM)
- CAD - Mediclinics Machflow Eco Hand Dryer (DWG)
- Revit RFA File - Mediclinics Machflow Eco Hand Dryer White or Black M09AX (RFA)
- Sketchup SKP File - Mediclinics Machflow Eco Hand Dryer White or Black Steel M09AX (SKP)
- CB Certificate - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)
- CE Certificate - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)
- EMC Certificate - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)
- G-Mark - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)
- GS Certificate - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)
- UL Certificate - Mediclinics Machflow Eco Hand Dryer M09AXX (PDF)
Specifications
Guarantee
Electrical
Performance
Construction
Accreditations
Dimensions_and_weight
Specifications
Guarantee
Type | Parts and Labour |
---|---|
As standard | 3 Years |
Extended enhanced available | No |
Electrical
Isolation | Class I |
---|---|
Rated power | 0.42 - 1.5 kW |
Energy per dry | 1.75 - 4.17 Wh |
Ingress protection | IP23 |
Heater element power | 0.4 kW |
Electrical supply voltage | 220 - 240V |
Electrical supply frequency | 50 / 60 Hz |
Performance
Dry time | 10 - 15 Seconds |
---|---|
Air speed | 119 - 202 MPH |
Low noise | No |
Motor type | Brushed Motor |
Motor speed | 19,000 - 30,000 RPM |
Adjustable settings | Yes |
Expected motor life | 3,000 Hours |
Recommended daily uses | 300+ (High Traffic) |
Construction
Hepa filter | Yes |
---|---|
Cover material | Epoxy |
Notable extras | - |
Finishes available | White |
Antibacterial additives | No |
Accreditations
Certificates | CE. CUL, UL, TUV-GS, Greenspec |
---|
Dimensions_and_weight
Depth | 170 mm |
---|---|
Width | 213 mm |
Height | 330 mm |
Net weight | 5.1 Kg |
Packed weight | - |
Packaging depth | - |
Packaging width | - |
Packaging height | - |
Mediclinics Machflow Plus HEPA Hand Dryer (White, 0.42-1.5 kW) features

Mediclinics: M09A-I, Machflow Plus HEPA & Ioniser Hand Dryer, White
